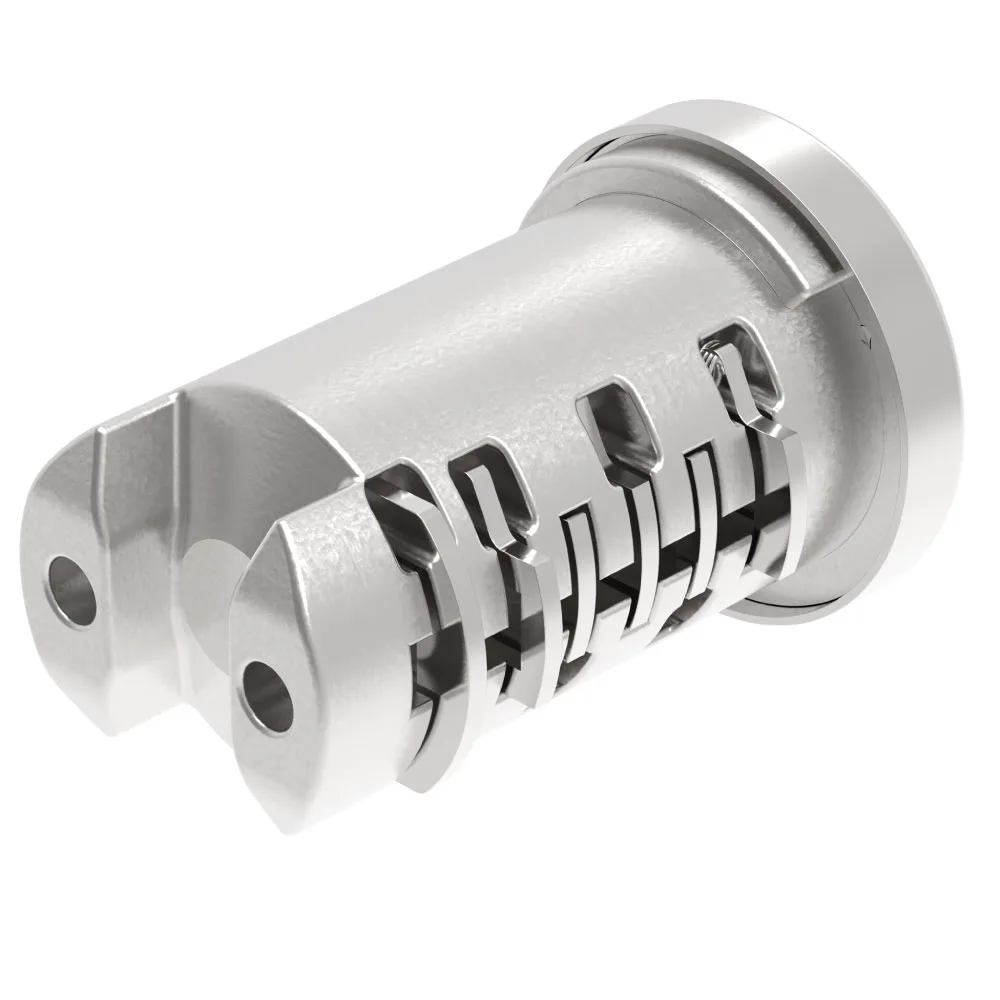

SL-8347 柜锁锁芯
SL-8347 为 CH751 钥匙系统的替换锁芯：锌合金壳体电镀锌镍合金，不锈钢护盖配黄铜锁舌——共享车队与公用机柜通行的标准匙码。
- SKU : SL-8347
锁芯是柜体权限管理的可替换核心——决定钥匙系统，更换时无需改动锁体。锌镍电镀壳体配不锈钢护盖与黄铜锁舌，耐受潮湿与沿海环境。匙码组合与子母钥匙布局按订单配置。
核心特性
材质: Zinc Alloy
表面处理: Electroplated Zinc-Nickel Alloy
钥匙系统: CH751 Key Locking
符合标准: UL FTTA2 / FTTA8 Class 1
应用场景
柜用转舌锁、旋转锁与旋转把手锁
电气柜与工业机柜
requestDrawing.title
requestDrawing.desc
相关行业
常见问题
查看全部→参考资料
- ISO 20653:2023, Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment, International Organization for Standardization
- ASTM B117-19, Standard Practice for Operating Salt Spray (Fog) Apparatus, ASTM International
- ISO 16750-3:2023, Road vehicles — Environmental conditions — Part 3: Mechanical loads, International Organization for Standardization
操作指南
1. Match the CH751 fleet keyway
The SL-8347 is keyed to the CH751 system - the standard keyway for shared fleet and utility cabinet access.
2. Swap the core, not the housing
Lock cylinders are the replaceable core of cabinet access control; they define the key system and swap without changing the lock housing.
3. Layer the materials for weather
A zinc alloy body with electro zinc-nickel plating, stainless steel cover, and brass blade withstands humid and coastal service.
4. Confirm plating for the site
Validate the zinc-nickel plating against salt-spray exposure where cabinets sit outdoors.
5. Order the keying to match the fleet
Key combinations and master-key layouts are configured to order.
订购与定制条款
| 起订量 100 件起 | 因产品而异，具体咨询 |
| OEM / ODM 100 件起 | 因产品而异 |
| 样品按实际费用提供 | 无库存约 25 天 |
| 现货 10–15 天 | 生产 15–20 天 |
| T/T 付款 · 24 小时出 PI |
