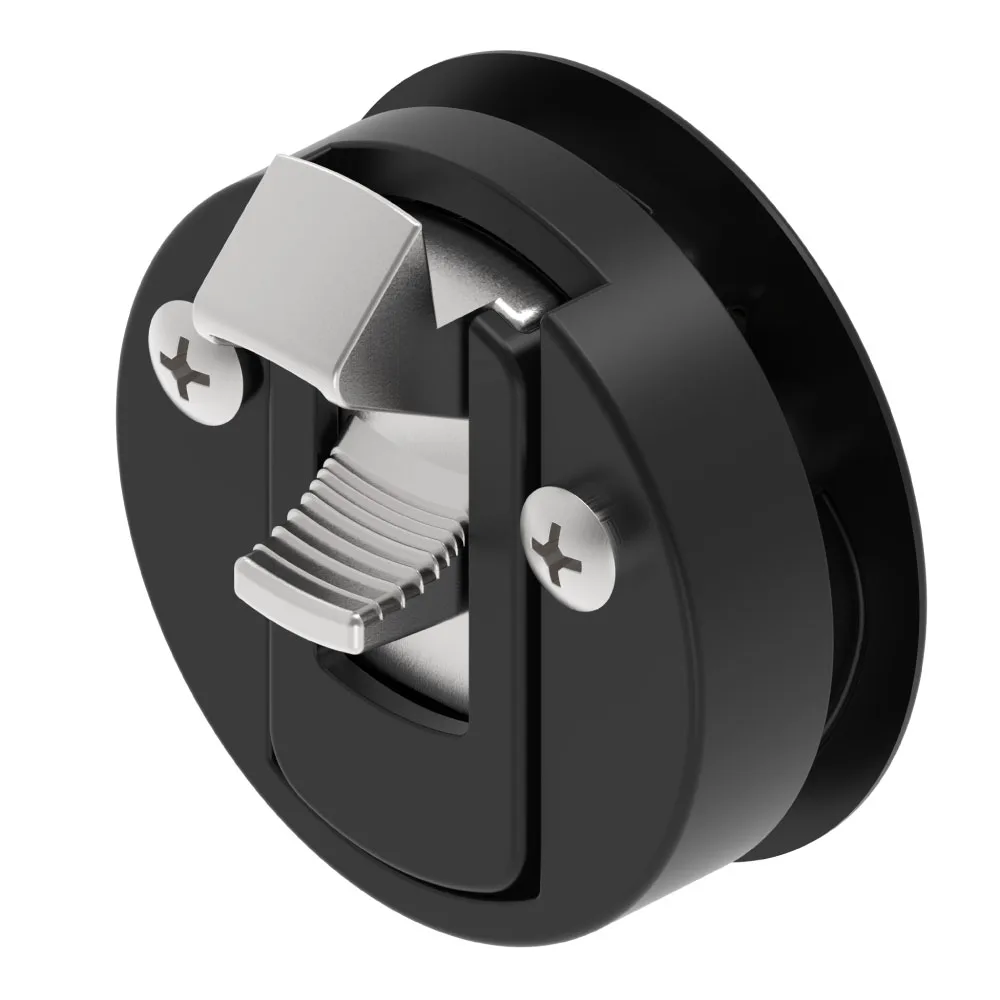

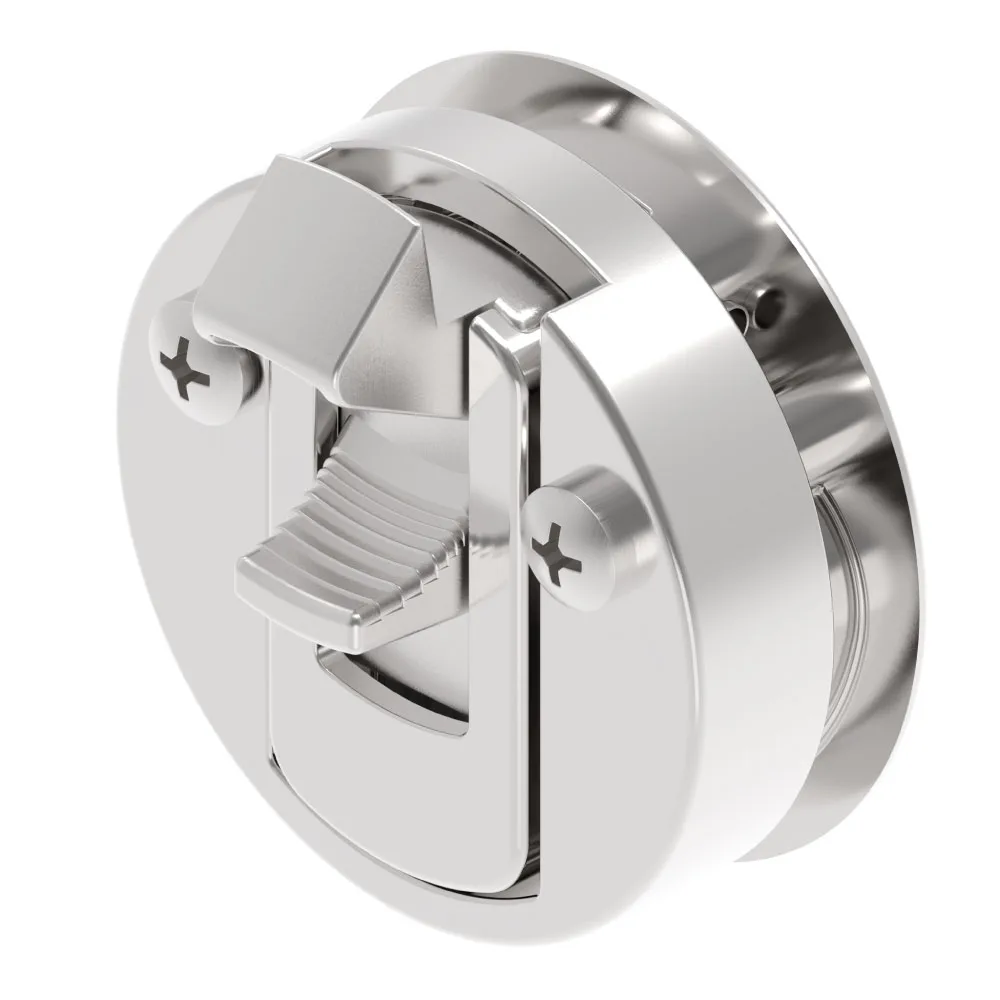

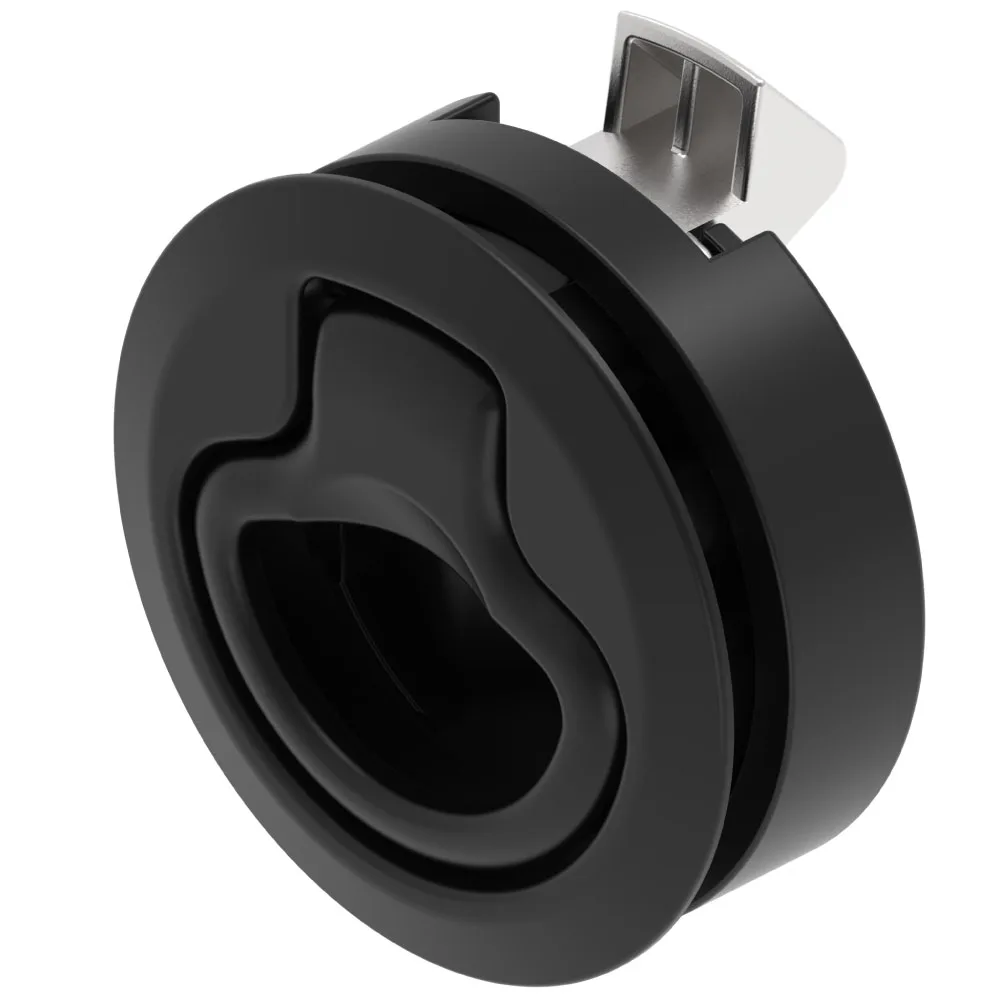

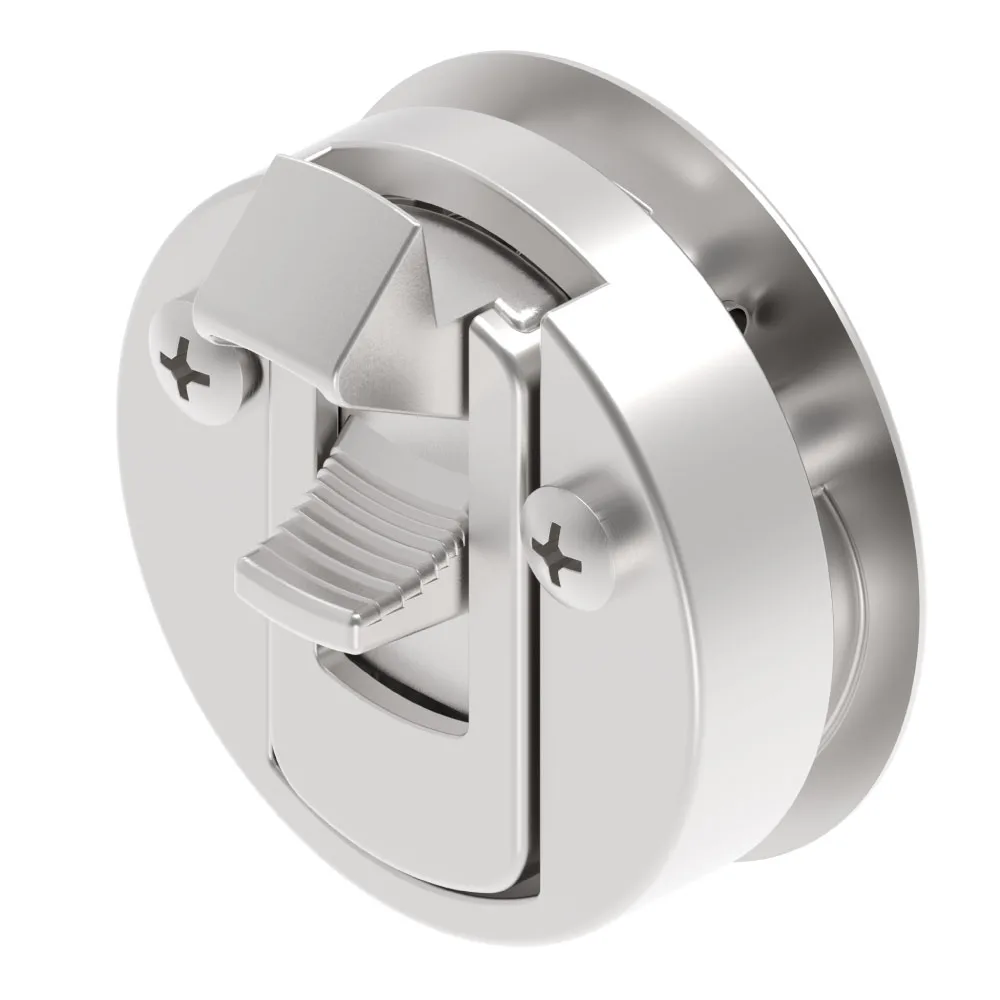

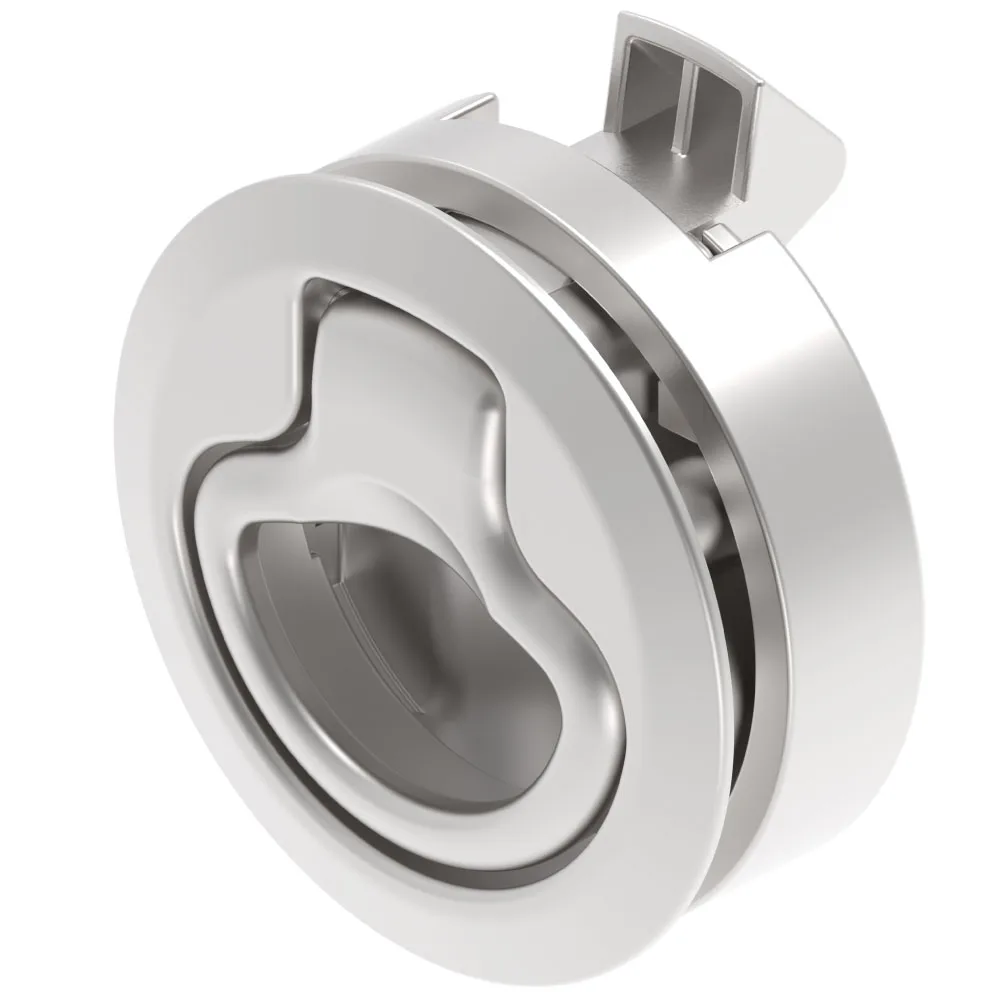

SL-B-2502-20 船用撞击锁
SL-B-2502-20 为圆形船用撞击锁，隐藏式埋入拉手，50mm 安装孔，背部联动机构免工具释放，适合快速高频启闭。
- SKU : SL-B-2502-20
关闭后表面平整低凸出，不刮蹭甲板缆绳或货物；推上舱门锁舌自动啮合。不锈钢/锌合金结构耐蚀可达 720 小时中性盐雾，适用于船艇舱口、活鱼舱、控制台小门、房车储物舱与拖车工具箱。符合 REACH No.1907/2006。
核心特性
隐藏式圆形拉手，关闭后平整
撞击即锁，背部机械联动释放
安装孔: 50mm
材质: Stainless Steel / Zinc Alloy
配置: Non-locking
耐蚀性: Up to 720h Neutral Salt Spray
合规: REACH No.1907/2006
应用场景
船舱口、游艇舱口与甲板舱口
活鱼舱与渔具储物舱
控制台小门与舱室储物柜
房车与露营拖车储物舱
拖车工具箱与皮卡工具箱
requestDrawing.title
requestDrawing.desc
相关行业
常见问题
查看全部→参考资料
- ASTM B117-19, Standard Practice for Operating Salt Spray (Fog) Apparatus, ASTM International
- ISO 9227:2022, Corrosion tests in artificial atmospheres — Salt spray tests, International Organization for Standardization
- ISO 12944-2:2017, Corrosion protection of steel structures — Part 2: Classification of environments, International Organization for Standardization
操作指南
1. Open hatches from inside the compartment
The rear linkage release opens the lock from inside for quick, frequent access during loading and inspection rounds.
2. Close with a push
Push the hatch shut and the tongue engages automatically.
3. Keep faces flush on deck
The concealed flush pull handle leaves a smooth surface that will not catch lines or cargo.
4. Match the 50 mm cutout
The round body installs in the standard 50 mm mounting hole.
5. Validate the salt-spray rating
Stainless / zinc alloy construction resists corrosion up to 720 h neutral salt spray; confirm it against the site's exposure class.
订购与定制条款
| 起订量 100 件起 | 因产品而异，具体咨询 |
| OEM / ODM 100 件起 | 因产品而异 |
| 样品按实际费用提供 | 无库存约 25 天 |
| 现货 10–15 天 | 生产 15–20 天 |
| T/T 付款 · 24 小时出 PI |
