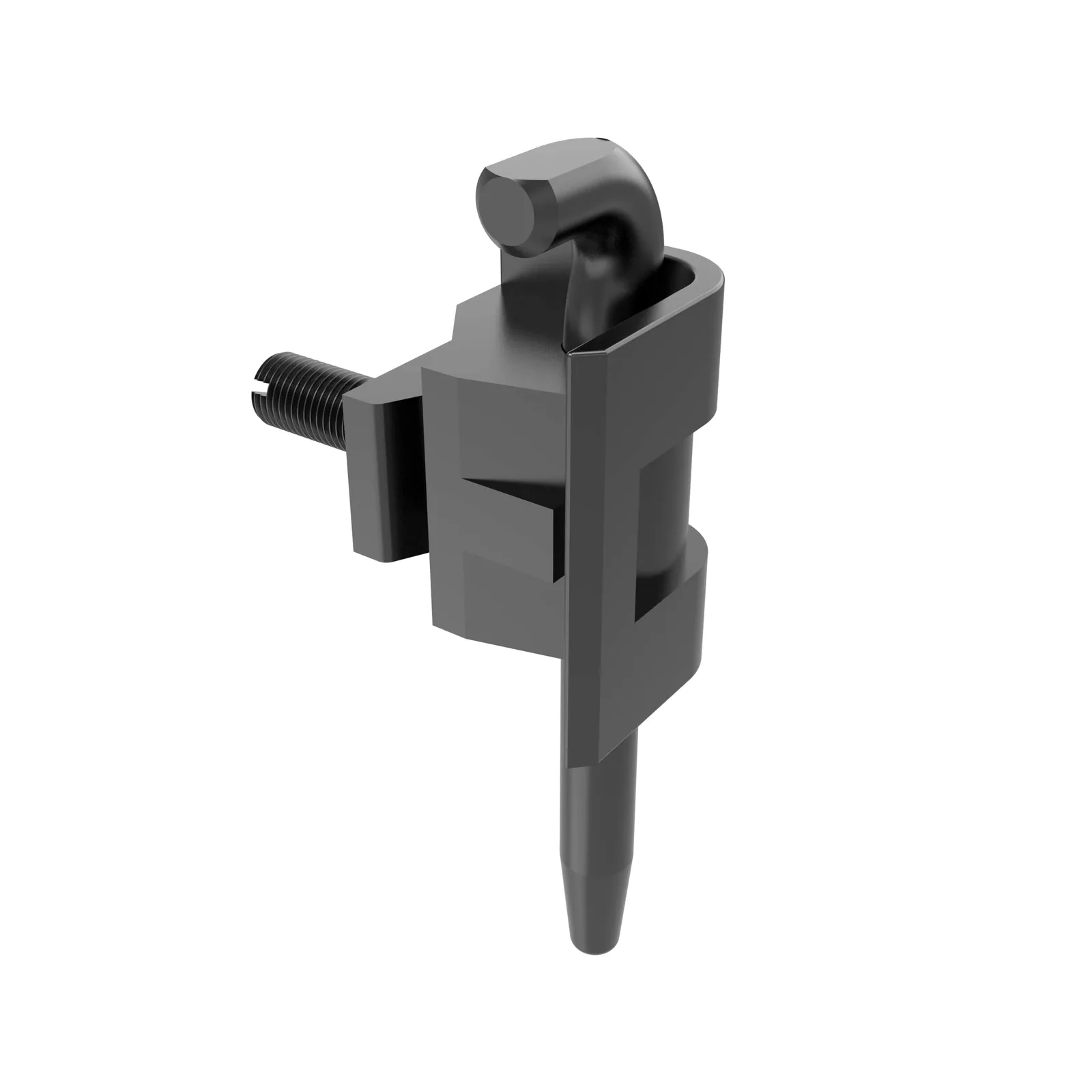

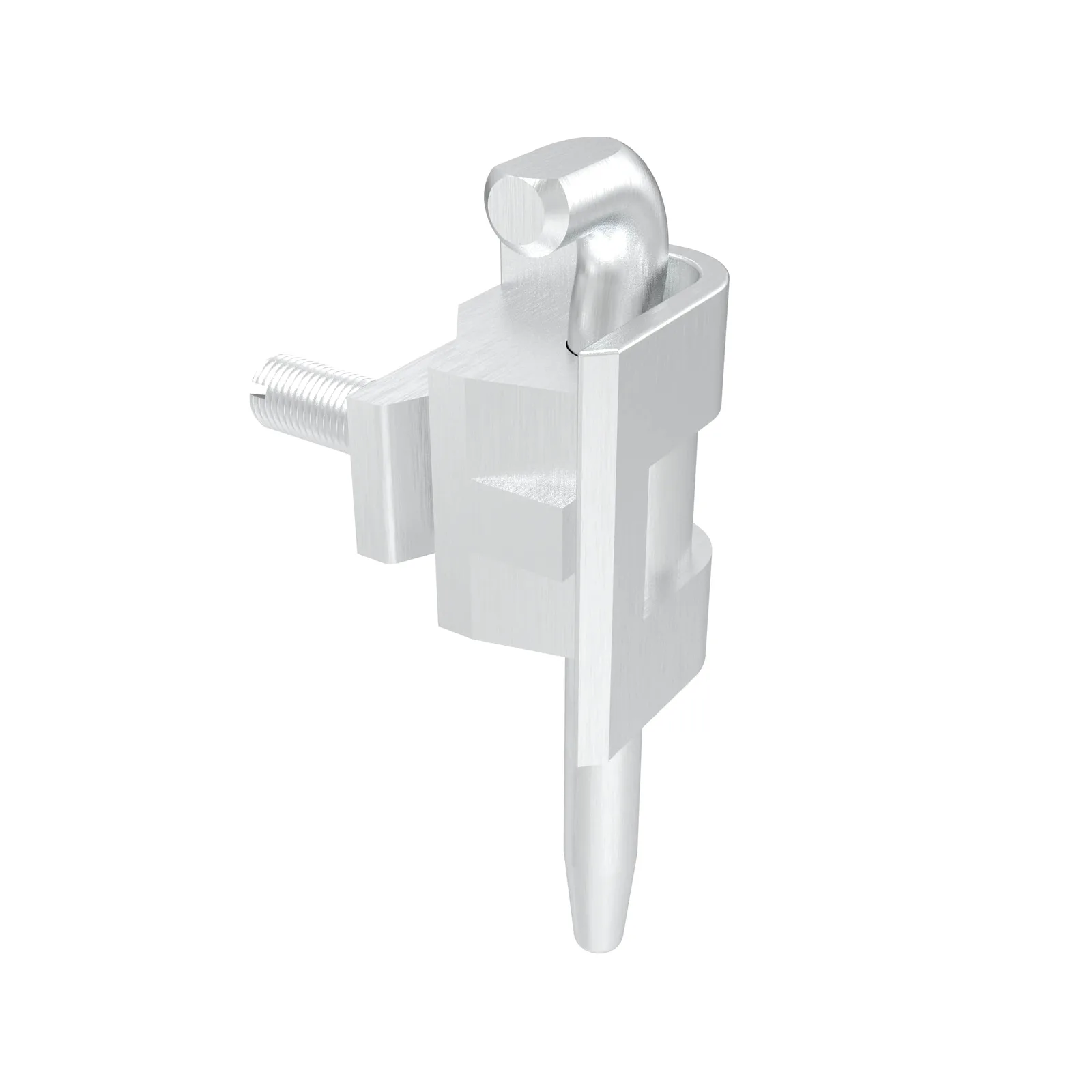

SL-H2-3303-2017-A1 角门铰链
SL-H2-3303-2017-A1 为紧凑型不锈钢角门铰链，卡入 2 mm 折弯钣金门的角部：安装快速经济，门体仍可 180° 全开，铰页可脱卸以便整体取门。
- SKU : SL-H2-3303-2017-A1
自由摆动铰链让门体在全行程内顺畅转动——多数型号支持 180° 全开，检修空间不受遮挡。角部结构适配折弯钣金门的折角，安装平整且经济；可拆型号支持检修时整体取门。载荷与安装尺寸见图纸。
核心特性
材质: Stainless Steel
表面处理: Brushed And Polished
安装方式: Snap-in
载荷等级: Heavy Duty
符合标准: UL FTTA2 / FTTA8 Class 1
应用场景
电气柜与控制柜
折弯钣金柜门与角部结构柜门
机械防护罩与设备罩壳
交通运输与工业车辆设备
requestDrawing.title
requestDrawing.desc
常见问题
查看全部→参考资料
- IEC 62262:2002+A1:2021, Degrees of protection against external mechanical impacts (IK code), International Electrotechnical Commission
- ISO 9227:2022, Corrosion tests in artificial atmospheres — Salt spray tests, International Organization for Standardization
- ISO 12944-2:2017, Corrosion protection of steel structures — Part 2: Classification of environments, International Organization for Standardization
操作指南
1. Snap into the folded corner
The compact stainless steel corner door hinge snaps into the folded corner of 2 mm formed sheet-metal doors for fast, cost-effective installation.
2. Keep the full 180° opening
Corner mounting still allows the door to open a full 180° for unobstructed service access.
3. Lift the door off for maintenance
The leaf releases so the door lifts off without removing the hinge from the frame.
4. Match stainless to the door build
The stainless construction suits formed sheet-metal doors in corrosive or washdown environments.
5. Confirm fit and load per drawing
Load ratings and installation dimensions are confirmed per drawing for the 2 mm door profile.
订购与定制条款
| 起订量 100 件起 | 因产品而异，具体咨询 |
| OEM / ODM 100 件起 | 因产品而异 |
| 样品按实际费用提供 | 无库存约 25 天 |
| 现货 10–15 天 | 生产 15–20 天 |
| T/T 付款 · 24 小时出 PI |
