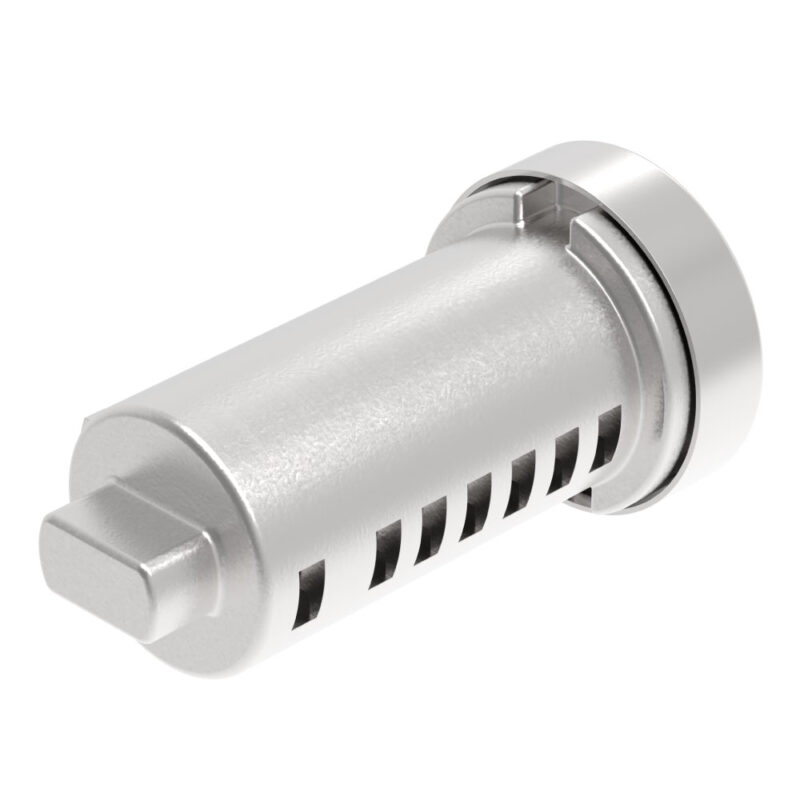

Model: 9345
Type: Cabinet Lock Cylinder | Material: Zinc Alloy | Finish: Electro Zinc-Nickel | Compliance: UL FTTA2 / FTTA8 Class 1
Product Description
The 9345 is a replacement and OEM lock cylinder designed for cabinet locks across a range of industrial and commercial enclosure applications. If you’re building cabinets at scale, managing a fleet of equipment, or simply need a reliable lock core that fits standard cabinet lock housings, this cylinder covers the basics without compromise.
The body is zinc alloy with an electro zinc-nickel plating finish, which gives it noticeably better corrosion resistance than standard zinc plating alone. The stainless steel cover protects the front face from wear and tampering, and the brass blade provides smooth, consistent key operation over a long service life. Brass is the standard blade material in quality lock cylinders for good reason — it resists corrosion, doesn’t gall against the keyway, and maintains dimensional accuracy through repeated use.
One of the more practical features of this cylinder is the customizable key combination system. Rather than being locked into a single key profile, the 9345 supports multiple key combination options — useful for facilities that need different keys for different cabinets, or for operators who want to run a master key system across a large number of units. This flexibility makes it a strong choice for OEM manufacturers building cabinet lock systems that need to be keyed differently for each customer or installation.
UL FTTA2 / FTTA8 Class 1 compliant, so it meets the requirements for most industrial and telecom cabinet applications straight out of the box.
Key Features
- Direct replacement or OEM lock cylinder for cabinet locks
- Zinc alloy body with electro zinc-nickel plating

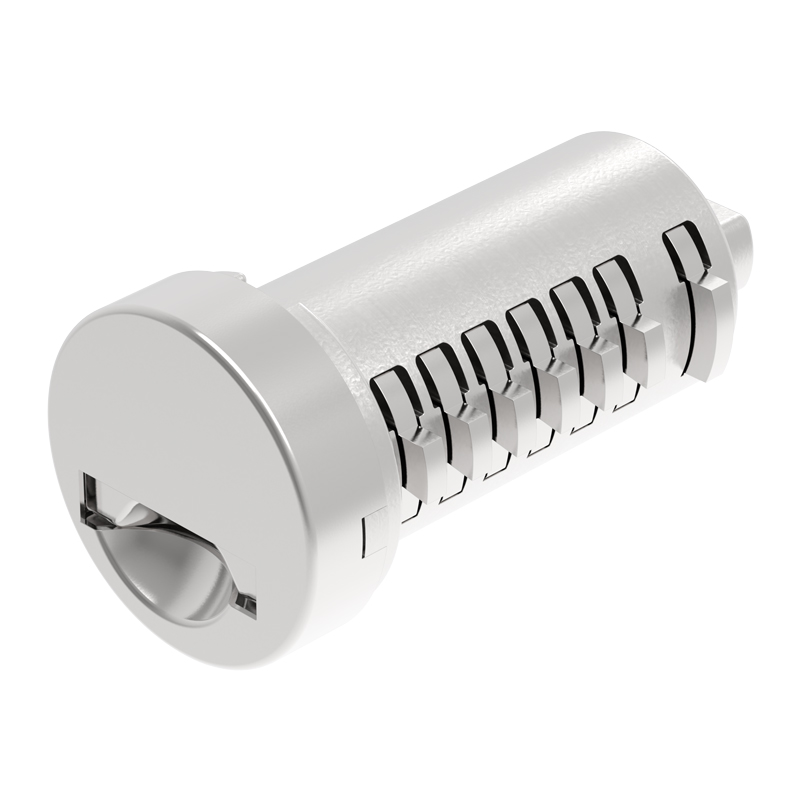

- Stainless steel front cover — wear and tamper resistant
- Brass blade — smooth operation, long service life
- Customizable key combinations — suits master key systems
- Multiple key combination options available
- Key locking access restriction
- UL FTTA2 / FTTA8 Class 1 compliant
- Ecru color finish
Specifications
| Specification | Details |
| Model | 9345 |
| Type | Cabinet Lock Cylinder |
| Accessory Category | Lock Cylinder |
| Body Material | Zinc Alloy |
| Surface Treatment | Electro Zinc-Nickel Plating |
| Cover Material | Stainless Steel |
| Blade Material | Brass |
| Color | Ecru |
| Head Style | Customized Multiple Key Combination |
| Access Restriction | Key Locking |
| Compliance | UL FTTA2 / FTTA8 Class 1 |
Material Breakdown
| Component | Material | Why It Matters |
| Body | Zinc Alloy | Lightweight, strong, precise die-cast dimensions |
| Surface Treatment | Electro Zinc-Nickel | Better corrosion resistance than standard zinc plating |
| Front Cover | Stainless Steel | Resists wear, scratching and tampering at the face |
| Blade | Brass | Smooth key operation, corrosion resistant, dimensionally stable |

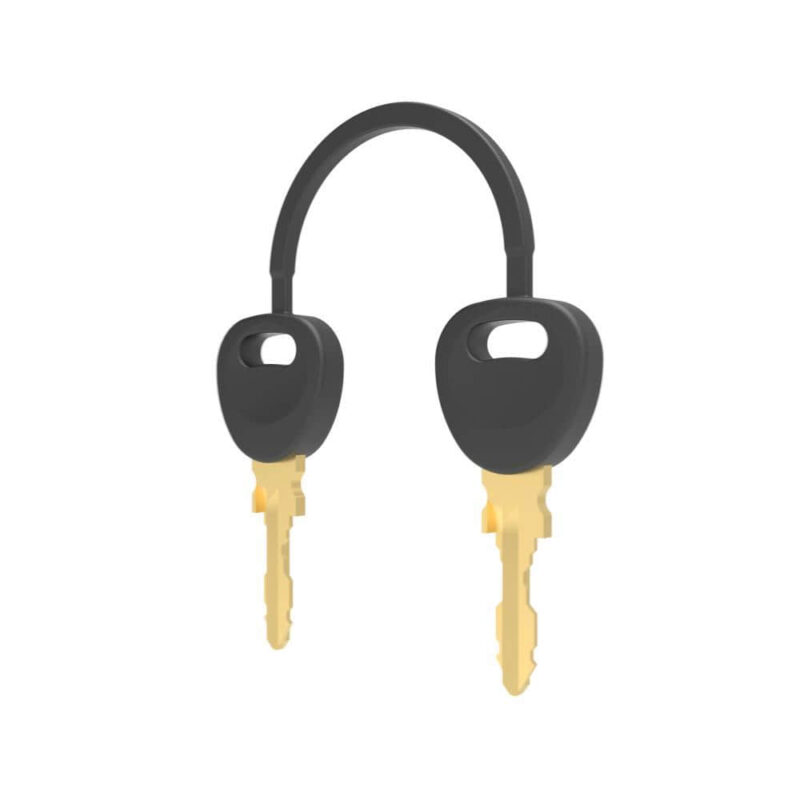

Key Combination Options
The 9345 supports customized key combinations, making it suitable for:
- Individual keying— each cylinder operates on a unique key
- Master key systems— one master key operates multiple cylinders
- Construction keying— temporary key access during installation
- OEM custom keying— factory-set key combinations for specific customers
Contact us to discuss keying requirements for volume orders.
Common Applications
- Industrial cabinet locks
- Electrical enclosure locks
- Telecom cabinet locks
- Server rack cabinet locks
- Vending machine lock cylinders
- Commercial furniture locks
- OEM cabinet lock manufacturing
- Replacement lock cylinders for existing installations
Compatibility Note

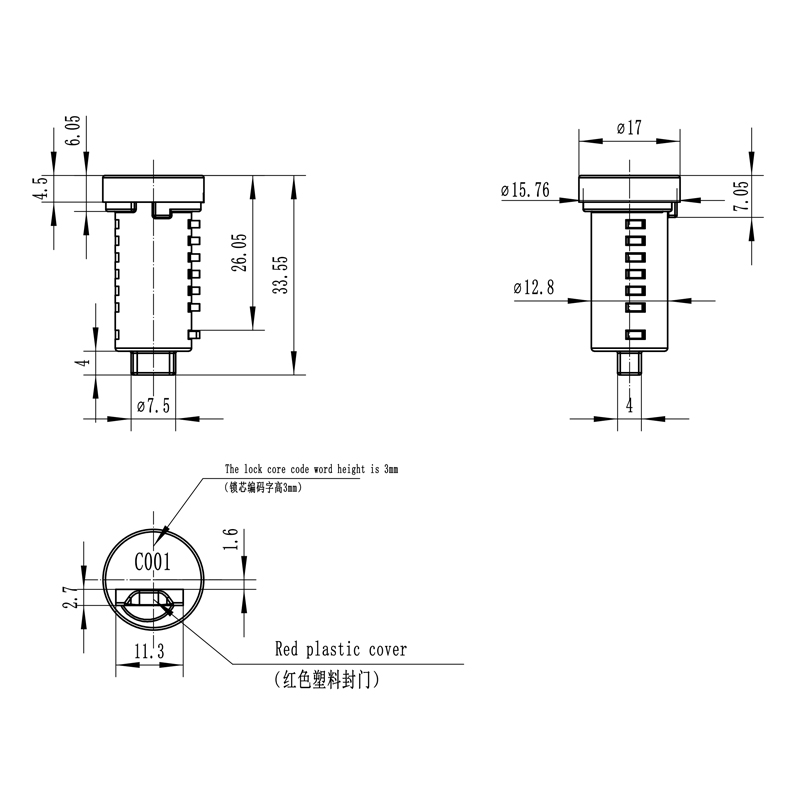

The 9345 lock cylinder is designed to fit standard cabinet lock housings. If you are using this as a replacement cylinder, please confirm the cylinder diameter, length, and cam type with your existing lock housing before ordering. Custom dimensions and cam configurations are available on request.
Available Options
Key Combinations
- Standard key profile
- Custom key combinations available
- Master key system available on request
Volume Orders
- OEM keying available for bulk orders
- Mixed keying across a single order available
