Model: A-1100
Material: Zinc Alloy | Finish: Powder Coating | Rating: IP65
Product Description

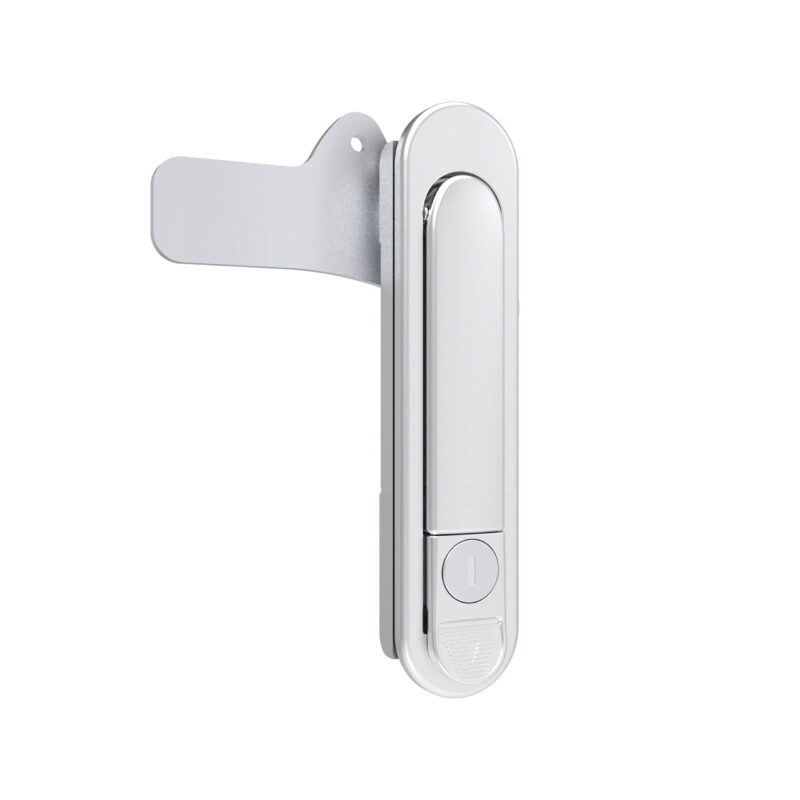

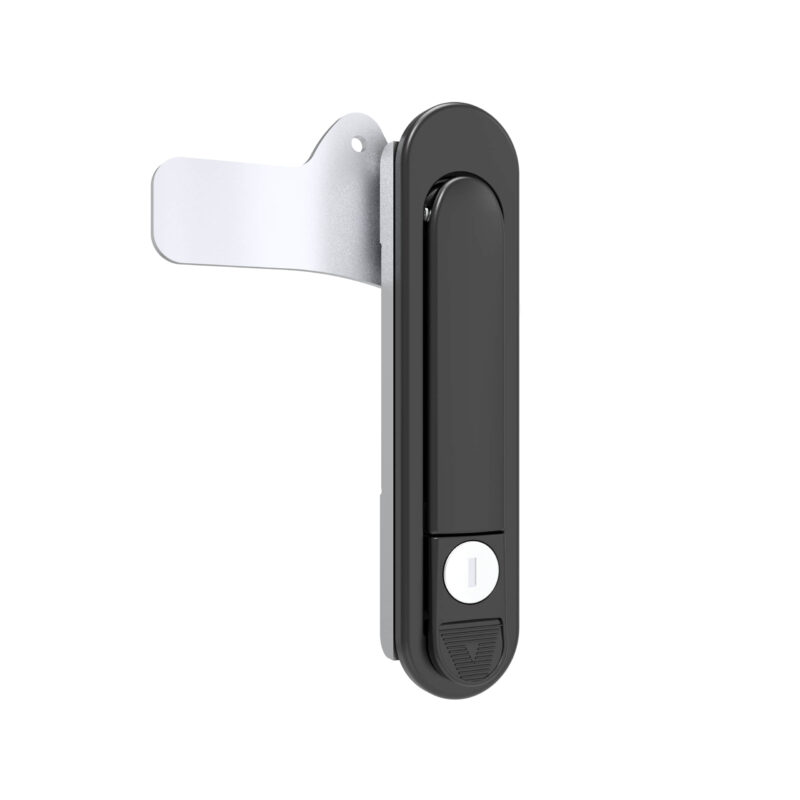

The A-1100 is a swing handle lock built for large industrial enclosures and cabinet door panels. It works on both left and right-hand doors without any extra parts or modifications, which makes ordering and installation a lot simpler.
The handle swings open when you need access and folds flat when closed, keeping the profile clean and avoiding any accidental catches. Locking is handled by a K200 key cylinder — straightforward and reliable. Once the handle is turned, the single-point latch engages firmly and stays put.
It’s made from die-cast zinc alloy and finished with powder coating, so it holds up well whether it’s inside a control room or mounted on an outdoor enclosure. IP65 certification means dust and water ingress aren’t a concern, and UL FTTA2 / FTTA8 Class 1 compliance covers it for most industrial and telecom applications.
If you’re running a multi-point locking setup, this handle can secure multiple locking points across a large door panel with a single turn — no fumbling, no extra steps. For higher-security installations, it’s also compatible with mechanoelectronic systems for remote operation.
Key Features
- Works on left and right-hand doors — no extra hardware needed
- K200 key cylinder for secure, controlled access
- Swivel handle folds flat when not in use
- Single-point latching with firm, consistent engagement
- Zinc alloy body with powder coat finish
- IP65 rated — dust-tight and water resistant
- UL FTTA2 / FTTA8 Class 1 compliant
- Compatible with multi-point locking systems
- Available in black or silver
Specifications
| Specification | Details |
| Model | A-1100 |
| Material | Zinc Alloy |
| Surface Treatment | Powder Coating |
| Color | Black / Silver |
| Head Style | K200 Key Locking |
| Surface Type | Raised |
| Access Restriction | Key Locking |
| Installation Method | Brackets and Nuts |
| Mounting Type | Fixed |
| Rotation — Type L | Locks Clockwise |
| Rotation — Type R | Locks Counterclockwise |
| Load Type | Light Duty |
| Latching Points | Single Point |
| Auxiliary Padlock Clasp | No |
| IP Rating | IP65 |
| Compliance | UL FTTA2 / FTTA8 Class 1 |
| Available Sizes | Small / Standard / Large |
Common Applications
- Electrical control panels
- Telecom and network cabinets
- Server room enclosures
- Outdoor equipment housings
- Industrial machinery doors
- Large-format metal cabinet doors
Available Options
Color
- Black
- Silver
Rotation Direction
- Type L — locks clockwise
- Type R — locks counterclockwise
Size
- Small
- Standard
- Large
