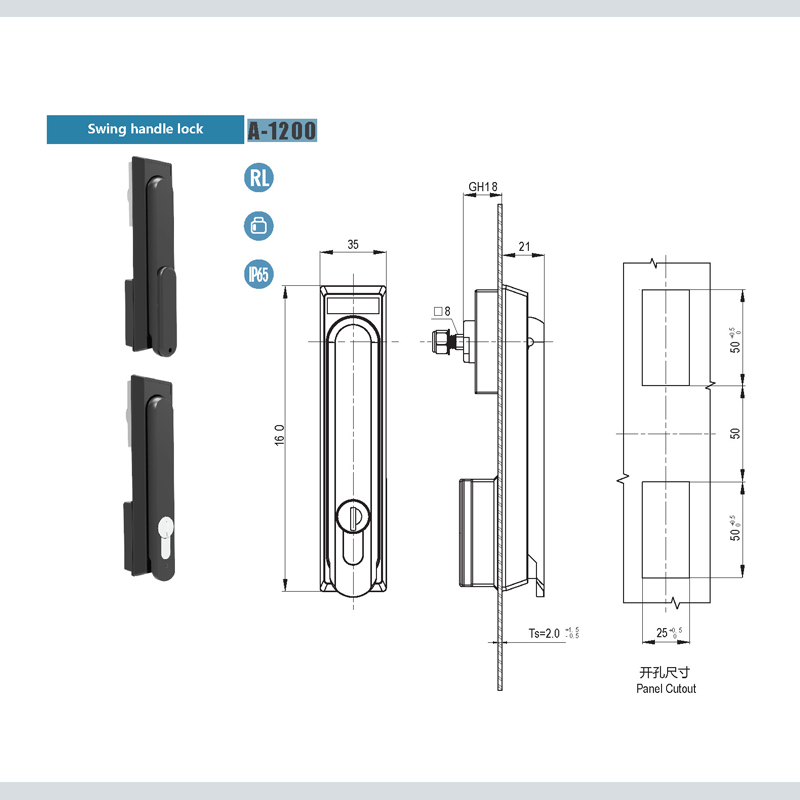

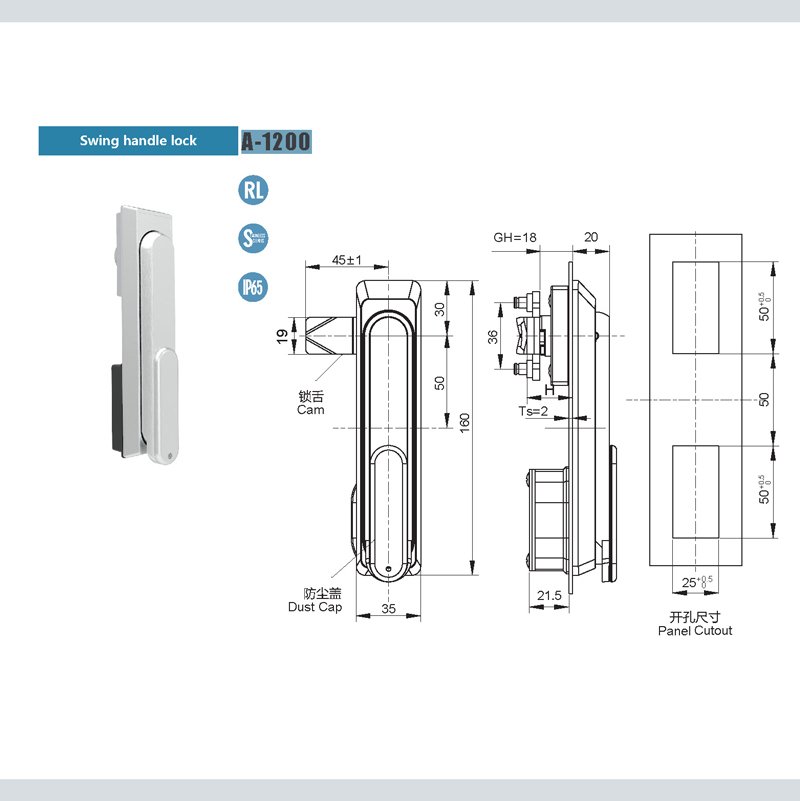

Model: A-1200-1P01
Material: Zinc Alloy | Finish: Powder Coating | Rating: IP65 | Duty: Heavy Duty
Product Description
The A-1200-1P01 is a heavy duty swing handle lock designed for large industrial enclosures, cabinet doors, and panels that see frequent use or need a more robust locking solution. It fits both left and right-hand doors without modification, so there’s no need to order separate versions for different door configurations.
The rotary handle design keeps things simple — rotate to open, rotate back to lock. When closed, the handle sits flush against the panel face, giving it a clean look while also reducing the chance of accidental opening. Access is controlled by a K333 key cylinder, which adds a solid layer of security for environments where restricted entry matters.
Built from die-cast zinc alloy with a powder coat finish, this lock is made to last in demanding conditions. The IP65 rating keeps it protected against dust and water, making it a reliable choice for both indoor and outdoor installations. It also meets UL FTTA2 / FTTA8 Class 1 compliance standards, which covers it for most telecom and industrial panel applications.
When used as part of a multi-point locking system, a single handle rotation can engage multiple locking points across a large door panel at once. For installations that need an extra layer of control, the lock is also compatible with mechatronic systems that allow remote operation.

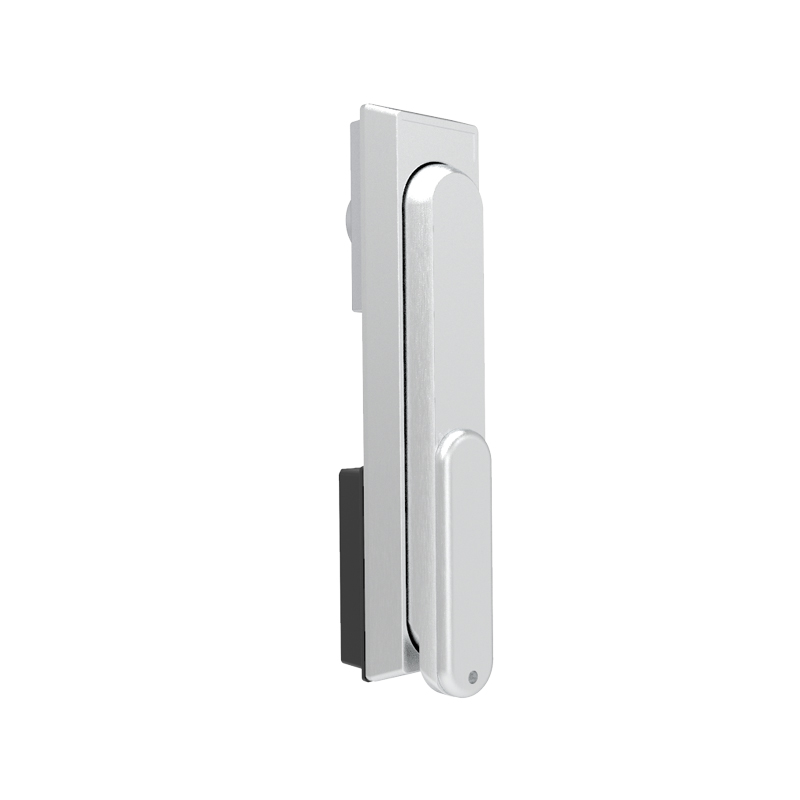

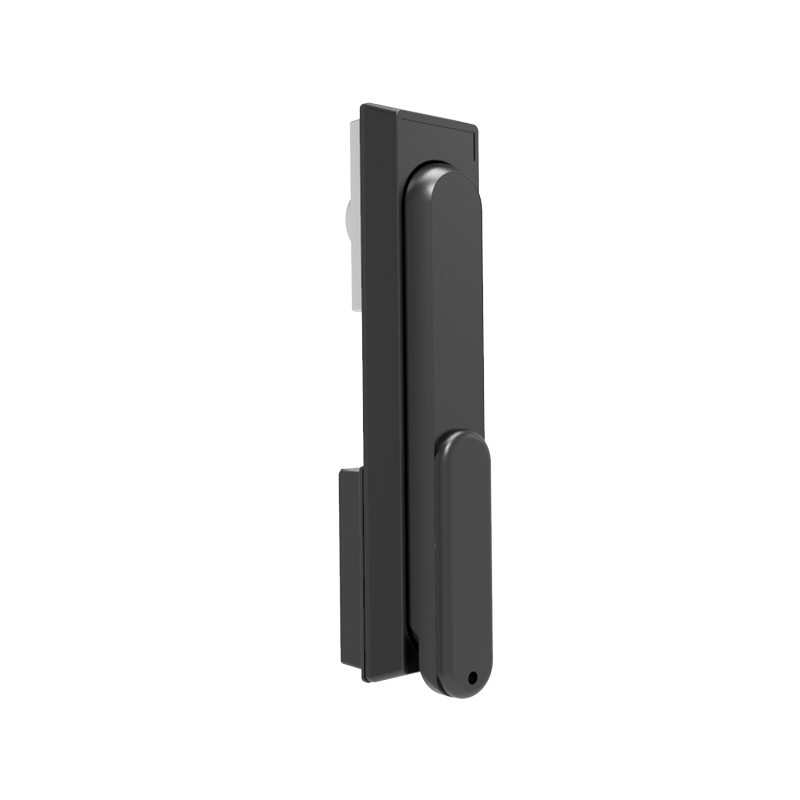

Available in black or bright silver to match different enclosure finishes.
Key Features
- Fits left and right-hand doors — no extra parts needed
- K333 key cylinder for secure, restricted access
- Rotary handle sits flush when closed
- Heavy duty rated for high-use and demanding environments
- Single-point latching with firm, reliable engagement
- Zinc alloy body with durable powder coat finish
- IP65 rated — dust-tight and water resistant
- UL FTTA2 / FTTA8 Class 1 compliant
- Compatible with multi-point locking systems
- Mechatronic remote operation compatible
- Available in black or bright silver
Specifications
| Specification | Details |
| Model | A-1200-1P01 |
| Material | Zinc Alloy |
| Surface Treatment | Powder Coating |
| Color | Black / Bright Silver |
| Head Style | K333 Key Locking |
| Surface Type | Raised |
| Access Restriction | Key Locking |
| Installation Method | Brackets and Nuts |
| Mounting Type | Fixed |
| Rotation — Type L | Locks Clockwise |
| Rotation — Type R | Locks Counterclockwise |
| Load Type | Heavy Duty |
| Latching Points | Single Point |
| Auxiliary Padlock Clasp | No |
| IP Rating | IP65 |
| Compliance | UL FTTA2 / FTTA8 Class 1 |
Common Applications
- Large electrical control panels
- Industrial machinery enclosures
- Telecom and network cabinets
- Outdoor equipment housings
- Server room cabinet doors
- Heavy duty metal enclosure doors
Available Options
Color
- Black
- Bright Silver
Rotation Direction
- Type L — locks clockwise
- Type R — locks counterclockwise
