Model: A-1445-114-1-30
Material: Zinc Alloy | Finish: Chrome Plated | Rating: IP65, UL FTTA2/FTTA8 Category 1
Product Description

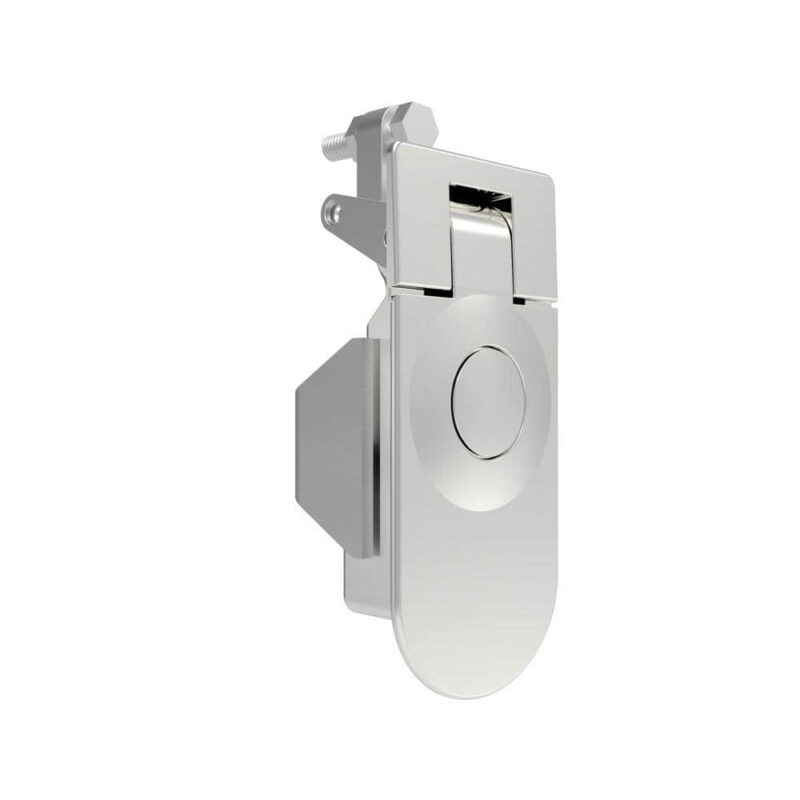

The A-1445-114-1-30 is a compression latch with sealed lever designed for enclosure doors and access panels requiring secure closure, clean external appearance, and reliable sealing performance. If you’re building industrial cabinets, equipment housings, or electrical enclosures where dust and moisture protection matter, this latch delivers straightforward, dependable operation.
The latch body is manufactured from zinc alloy with a chrome-plated bright finish — a combination that resists corrosion and maintains its polished appearance over extended use in industrial environments. The low-profile design keeps the external face clean and streamlined, minimizing protrusions that could catch on adjacent equipment or create snag points.
What sets this latch apart is how it operates. Push-button locking is intuitive and requires minimal force — users press the button to unlock and swing the lever open. The hidden mounting design conceals the installation hardware, which not only improves aesthetics but also helps protect brackets and fasteners from incidental impact or environmental exposure. The adjustable grip accommodates different panel and door thicknesses, making installation flexible across a range of applications without requiring custom modifications.
The compression action is the key to its performance. As the lever closes, it pulls the door tightly into position, creating a firm seal between the door and frame. This action reduces unwanted movement, decreases friction and wear on the latch bolt and frame, and improves overall sealing performance — particularly important in applications where dust or splash exposure is a concern.
The A-1445-114-1-30 carries IP65 protection, meaning it resists dust ingress and water spray from any direction. Combined with UL FTTA2 / FTTA8 Category 1 compliance, it’s suitable for industrial, telecom, and commercial applications where certification and documented performance standards are required.
Key Features
- Zinc alloy construction with chrome-plated bright finish for corrosion resistance
- Low-profile design maintains clean, streamlined external appearance

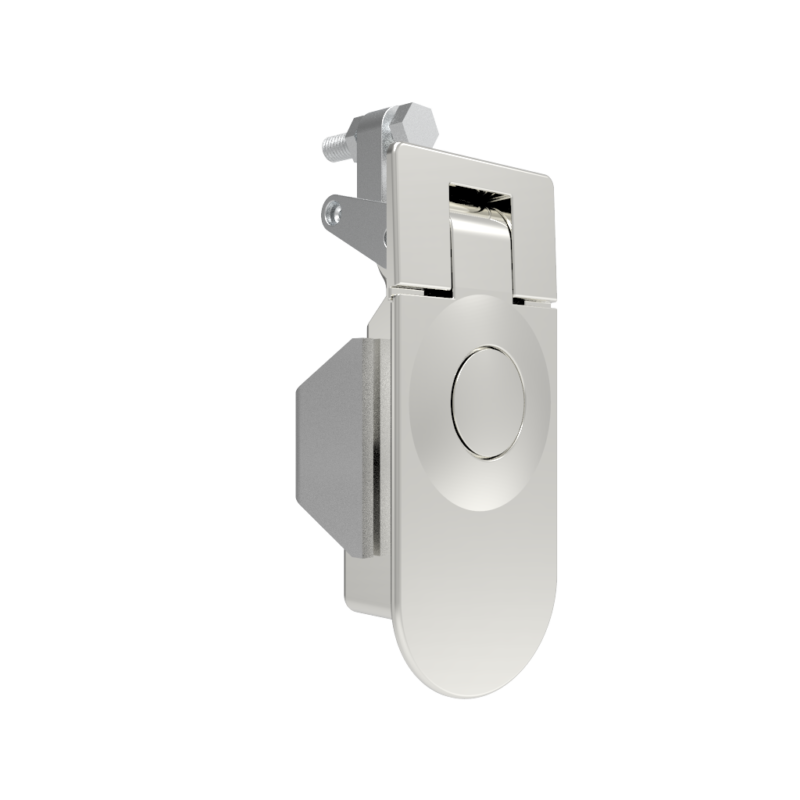

- Push-button locking operation — intuitive and easy to use
- Hidden mounting design conceals hardware and protects installation fasteners
- Adjustable grip accommodates various panel and door thicknesses
- Compression action pulls door tightly into position for improved sealing
- Reduces friction and wear on latch bolt and frame
- IP65 rated — dust-tight and water resistant
- Light duty load rating suitable for cabinet and enclosure doors
- UL FTTA2 / FTTA8 Category 1 compliant
- Bracket and nut mounting for straightforward installation
Specifications
| Specification | Details |
| Model | A-1445-114-1-30 |
| Product Type | Compression Latch / Sealed Lever Latch |
| Material | Zinc Alloy |
| Surface Finish | Chrome Plated |
| Color | Bright |
| Profile | Low Profile |
| Access Restriction | Push-Button Locking |
| Mounting Hardware | Bracket and Nut |
| Grip Type | Adjustable |
| Installation Type | Hidden Mounting |
| Load Rating | Light Duty |
| IP Rating | IP65 |
| Compliance | UL FTTA2 / FTTA8 Category 1 |
Common Applications
- Electrical enclosures and control panels
- Industrial cabinets and machinery doors
- Equipment access panels and service doors
- Control cabinets and switchgear housings
- Sealed enclosure systems requiring dust and moisture protection
- Data center and server room cabinet doors
- Telecommunication equipment housings
- Environmental testing and clean room enclosures
Available Options
Finish
- Chrome Plated Bright (standard)
- Custom finishes available upon request
Grip Range
- Standard adjustable grip
- Custom grip ranges available for specialized applications
Mounting Configuration
- Bracket and nut (standard)
- Custom mounting solutions available upon request
Packaging
- Standard packaging
- Custom packaging available upon request
