Model: A-1445-114-1-40
Material: Zinc Alloy | Finish: Powder Coating | Rating: IP65, UL FTTA2/FTTA8 Class 1
Product Description

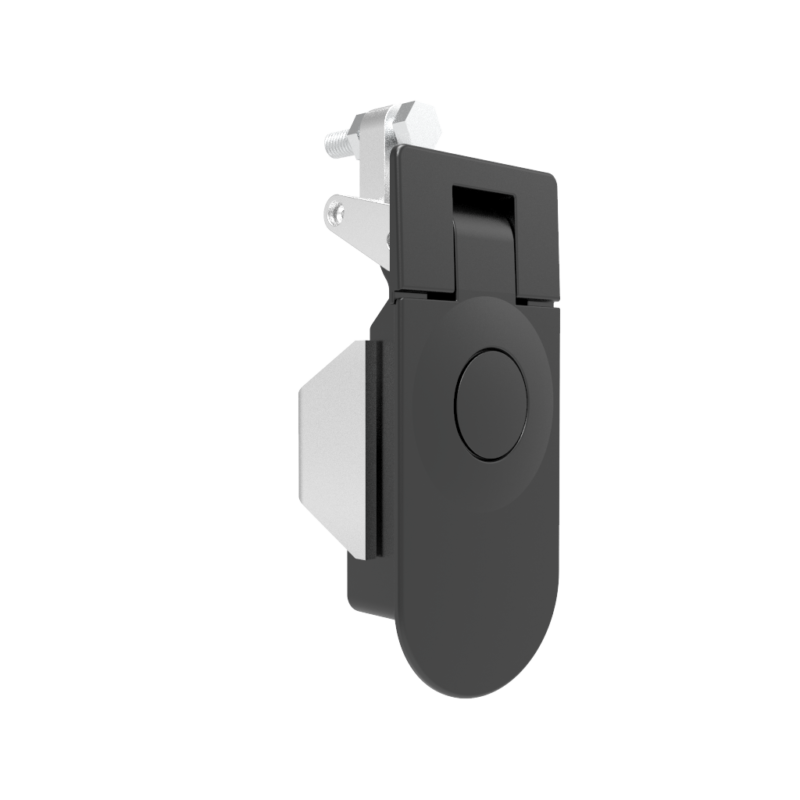

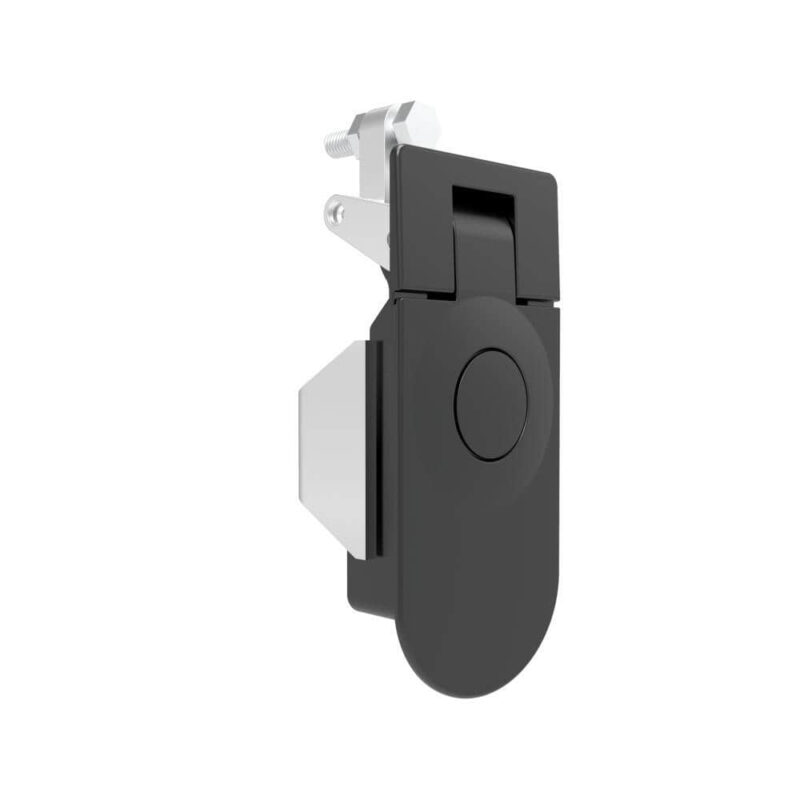

The A-1445-114-1-40 is a compression door lock with sealed lever designed for enclosure doors and access panels requiring secure closure without key operation. If you’re building industrial cabinets, equipment housings, or electrical enclosures where straightforward, reliable closure is the priority, this non-key latch delivers dependable performance with minimal complexity.
The lock body is manufactured from zinc alloy with a powder coating finish in black — a durable combination that resists corrosion and maintains its appearance over extended use in industrial environments. The powder coating provides superior impact resistance compared to chrome plating, making it practical for high-traffic applications where the door or panel faces incidental contact or rough handling.
The low-profile design keeps the external face clean and streamlined. Unlike protruding hardware, this design minimizes snag points and reduces the risk of accidental catches on adjacent equipment or moving parts. The button locking operation is straightforward — users press the button to release the lever and swing the door open. No keys required, no complexity — just simple, intuitive operation that any user can manage instantly.
What makes this latch effective is the concealed installation design. The mounting hardware is hidden from external view, which not only improves aesthetics but also protects brackets and fasteners from incidental impact or environmental exposure. The adjustable grip accommodates different panel and door thicknesses, eliminating the need for custom modifications or special hardware across varying applications.
The compression movement is central to its performance. As the lever closes, it pulls the door tightly into position, creating a firm seal between the door and frame. This action reduces unwanted movement, decreases friction and wear on the latch mechanism and door frame, and improves overall sealing performance — particularly important in applications where environmental protection is a concern.
The A-1445-114-1-40 carries IP65 protection, meaning it resists dust ingress and water spray from any direction. Combined with UL FTTA2 / FTTA8 Class 1 compliance, it’s suitable for industrial, telecom, and commercial applications where certification and documented performance standards are required.
Key Features
- Zinc alloy construction with powder coating black finish for durability and corrosion resistance
- Low-profile design maintains clean, streamlined external appearance
- Button locking operation — simple, intuitive, and requires no keys
- Non-key lock design reduces complexity and user confusion
- Concealed installation design hides hardware and protects fasteners
- Adjustable grip accommodates various panel and door thicknesses
- Compression action pulls door tightly into position for improved sealing
- Reduces friction and wear on latch mechanism and door frame
- IP65 rated — dust-tight and water resistant
- Light duty load rating suitable for cabinet and enclosure doors
- UL FTTA2 / FTTA8 Class 1 compliant
- Bracket and nut mounting for straightforward installation
Specifications
| Specification | Details |
| Model | A-1445-114-1-40 |
| Product Type | Compression Door Lock / Sealed Lever Latch |
| Material | Zinc Alloy |
| Surface Treatment | Powder Coating |
| Color | Black |
| Profile | Low Profile |
| Access Restriction | Button Locking |
| Installation Dimensions | Brackets and Nuts |
| Fixed Way | Adjustable |
| Type of Installation | Concealed Installation |
| Load Type | Light Duty |
| IP Rating | IP65 |
| Compliance | UL FTTA2 / FTTA8 Class 1 |
Common Applications
- Electrical enclosures and control panels
- Industrial cabinets and machinery doors
- Equipment access panels and service doors
- Control cabinets and switchgear housings
- Sealed enclosure systems requiring dust and moisture protection
- Data center and server room cabinet doors
- Telecommunication equipment housings
- Environmental testing and sealed room enclosures
- Applications requiring simple, non-key operation
Available Options
Finish
- Powder Coating Black (standard)
- Powder Coating alternative colors available upon request
Grip Range
- Standard adjustable grip
- Custom grip ranges available for specialized applications
Mounting Configuration
- Bracket and nut (standard)
- Custom mounting solutions available upon request
Packaging
- Standard packaging
- Custom packaging available upon request
