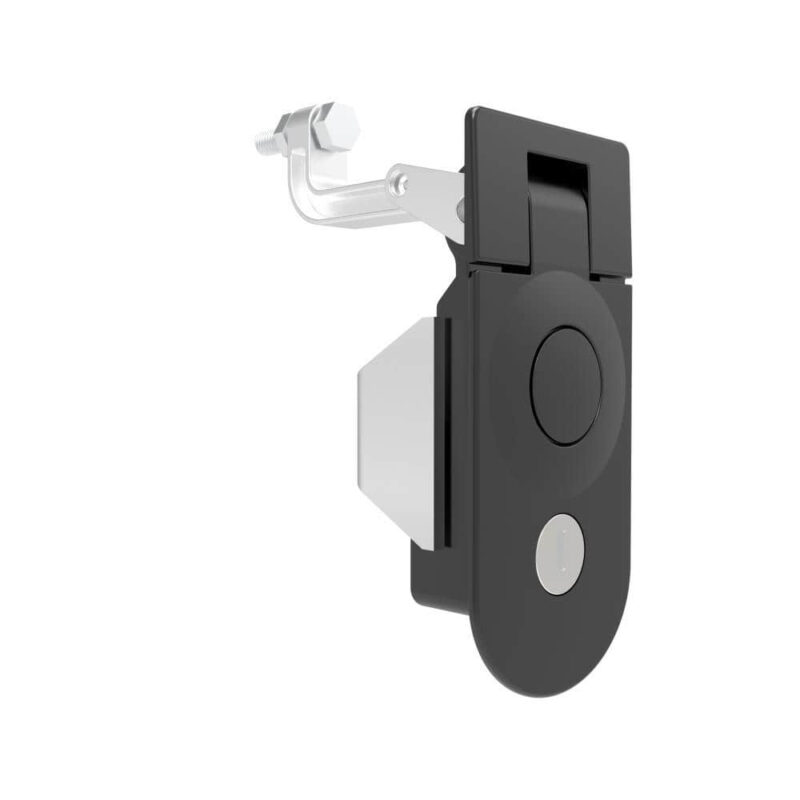

Model: A-1445-357-1-40
Material: Zinc Alloy | Finish: Powder Coating | Rating: IP65, UL FTTA2/FTTA8 Class 1
Product Description
The A-1445-357-1-40 is a compression-type door lock with sealed lever and key-controlled access, designed for enclosure doors and access panels requiring secure, sealed closure with managed access. If you’re building industrial cabinets, equipment housings, or electrical enclosures where security, sealing performance, and durable operation are all critical, this lock delivers comprehensive functionality in a robust package.
The lock body is manufactured from zinc alloy with a powder coating finish in black — a durable combination that resists corrosion and impact while maintaining its appearance over extended use in demanding industrial environments. The powder coating provides superior resistance to scratches, abrasion, and incidental contact compared to plated finishes, making it practical for high-traffic applications or installations where the door or panel faces regular physical exposure.
The key locking system uses the CH751 key cylinder, providing controlled access that requires the correct key to unlock and open the door. This key-controlled restriction is essential for applications where security and access management matter — whether you’re protecting sensitive equipment, preventing unauthorized opening, or maintaining secure control across multiple cabinet installations. The CH751 cylinder is a proven, industry-standard design offering reliable pick resistance and smooth, consistent operation.
What makes this lock effective is the integrated sealed lever design. The sealed lever works in combination with the compression mechanism to create a comprehensive seal between the door and frame. As the lock closes, the compression movement pulls the door tightly into position while the sealed lever ensures uniform contact and proper engagement. This dual-action approach significantly improves sealing performance, reducing friction and wear on both the latch mechanism and door frame while maximizing protection against dust and moisture ingress.
The lock includes a dust cover that provides additional protection to the internal mechanism, shielding the compression linkage and operating components from dust accumulation and environmental exposure. This design detail extends the operational life of the lock and reduces the maintenance requirements over time — particularly important in industrial environments where contamination can compromise performance.
The low-profile design keeps the external face clean and streamlined, minimizing protrusions that could catch on adjacent equipment. The concealed installation hides mounting hardware from view, which improves aesthetics while protecting brackets and fasteners from incidental impact or environmental exposure. The adjustable grip accommodates different panel and door thicknesses, eliminating the need for custom modifications across varying applications.
The A-1445-357-1-40 carries IP65 protection, meaning it resists dust ingress and water spray from any direction. Combined with UL FTTA2 / FTTA8 Class 1 compliance, it’s suitable for industrial, telecom, and commercial applications where certification and documented performance standards are required.
Key Features
- Zinc alloy construction with powder coating black finish for durability and corrosion resistance
- CH751 key cylinder provides controlled, key-locked access
- Low-profile design maintains clean, streamlined external appearance
- Sealed lever improves seal integrity and compression performance
- Dust cover protects internal mechanism from environmental exposure
- Concealed installation design hides hardware and protects fasteners
- Adjustable grip accommodates various panel and door thicknesses
- Compression action pulls door tightly into position for improved sealing
- Reduces friction and wear on latch mechanism and door frame
- IP65 rated — dust-tight and water resistant
- Light duty load rating suitable for cabinet and enclosure doors
- UL FTTA2 / FTTA8 Class 1 compliant
- Bracket and nut mounting for straightforward installation
- Superior impact resistance compared to plated finishes
Specifications
| Specification | Details |
| Model | A-1445-357-1-40 |
| Product Type | Compression Door Lock / Sealed Lever Latch with Key Lock |
| Material | Zinc Alloy |
| Surface Treatment | Powder Coating |
| Color | Black |
| Head Style | CH751 Key Locking |
| Profile | Low Profile |
| Access Restriction | Key Locking |
| Installation Dimensions | Brackets and Nuts |
| Fixed Way | Adjustable |
| Type of Installation | Concealed Installation |
| Sealing Feature | Sealed Lever with Dust Cover |
| Load Type | Light Duty |
| IP Rating | IP65 |
| Compliance | UL FTTA2 / FTTA8 Class 1 |
Common Applications
- Electrical enclosures and control panels requiring key-controlled access
- Industrial cabinets and machinery doors with security requirements
- Equipment access panels and service doors
- Control cabinets and switchgear housings
- Sealed enclosure systems requiring dust and moisture protection
- Data center and server room cabinet doors with access control
- Telecommunication equipment housings
- Secure environmental testing and clean room enclosures
- Applications requiring both security and comprehensive sealing
- High-traffic industrial environments with frequent door use
Available Options
Key Cylinder
- CH751 Key Locking (standard)
- Alternative key cylinders available upon request
Finish
- Powder Coating Black (standard)
- Powder Coating alternative colors available upon request
Grip Range
- Standard adjustable grip
- Custom grip ranges available for specialized applications
Sealing Configuration
- Sealed lever with dust cover (standard)
- Custom sealing options available upon request
Mounting Configuration
- Bracket and nut (standard)
- Custom mounting solutions available upon request
Packaging
- Standard packaging
- Custom packaging available upon request
