Model: A-1446-100-30
Material: Zinc Alloy | Finish: Electroplated Chrome | Rating: IP65, UL FTTA2/FTTA8 Class 1
Product Description

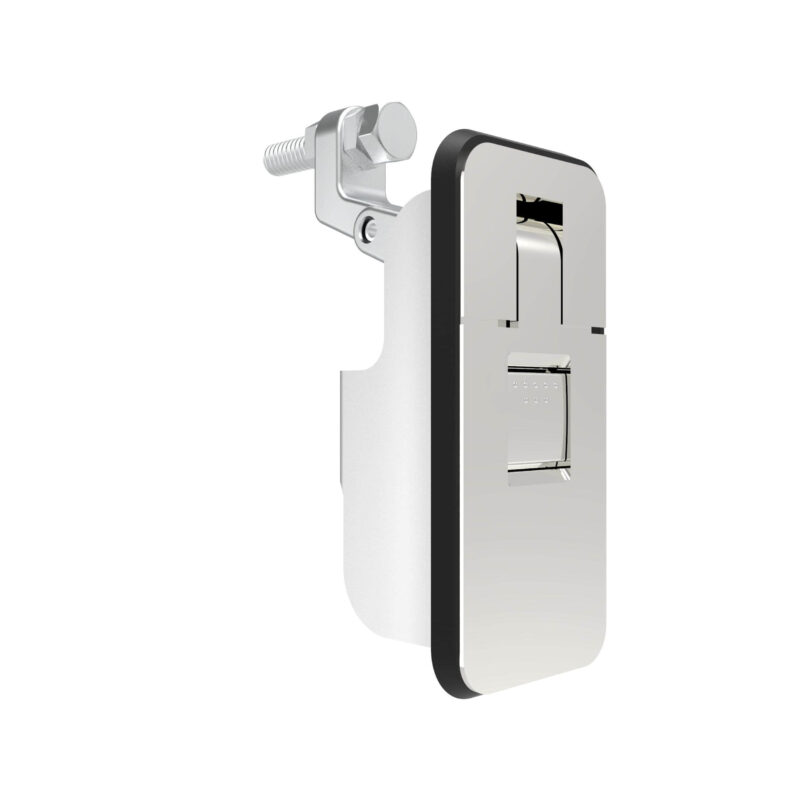

The A-1446-100-30 is a compression door lock with sealing rod designed for enclosure doors and access panels requiring secure, sealed closure with simple push-to-open operation. If you’re building industrial cabinets, equipment housings, or electrical enclosures where reliable sealing performance and straightforward access are the priorities, this lock delivers dependable functionality without key complexity.
The lock body is manufactured from zinc alloy with an electroplated chrome bright finish — a durable combination that resists corrosion and maintains its polished appearance over extended use in industrial and commercial environments. The bright chrome finish provides both aesthetic appeal and proven corrosion resistance, making it suitable for both indoor control rooms and environments with periodic moisture exposure.
What sets this lock apart is the integrated sealing rod design. The sealing rod works in concert with the compression mechanism to create a comprehensive seal between the door and frame. As the lock closes, the compression movement pulls the door tightly into position while the sealing rod ensures uniform contact around the perimeter. This dual-action approach significantly improves sealing performance, reducing friction and wear on both the latch mechanism and door frame while maximizing protection against dust and moisture ingress.
The lock belt dust cover provides additional protection to the internal mechanism, shielding the compression linkage and operating components from dust accumulation and environmental exposure. This design detail extends the operational life of the lock and reduces the maintenance requirements over time — particularly important in industrial environments where contamination can compromise performance.
The access restriction is set to no restriction, meaning the door can be opened freely without requiring a key or pushing a button. This open-access design is ideal for applications where unrestricted egress is necessary or desired — emergency exit doors, general equipment access panels, or situations where frequent opening without key management is practical. The simple operation makes this lock suitable for high-traffic areas where users need instant, hassle-free access.
The low-profile design keeps the external face clean and streamlined. The concealed installation hides mounting hardware from view, which improves aesthetics while protecting brackets and fasteners from incidental impact or environmental exposure. The adjustable grip accommodates different panel and door thicknesses, eliminating the need for custom modifications across varying applications.
The A-1446-100-30 carries IP65 protection, meaning it resists dust ingress and water spray from any direction. Combined with UL FTTA2 / FTTA8 Class 1 compliance, it’s suitable for industrial, telecom, and commercial applications where certification and documented performance standards are required.
Key Features
- Zinc alloy construction with electroplated chrome bright finish for corrosion resistance
- No access restriction — unrestricted, free-opening design for emergency egress
- Low-profile design maintains clean, streamlined external appearance
- Integrated sealing rod improves seal integrity and compression performance
- Lock belt dust cover protects internal mechanism from environmental exposure
- Concealed installation design hides hardware and protects fasteners
- Adjustable grip accommodates various panel and door thicknesses
- Compression action pulls door tightly into position for improved sealing
- Reduces friction and wear on latch mechanism and door frame
- IP65 rated — dust-tight and water resistant
- Light duty load rating suitable for cabinet and enclosure doors
- UL FTTA2 / FTTA8 Class 1 compliant
- Bracket and nut mounting for straightforward installation
- Simple operation — no keys or buttons required
Specifications
| Specification | Details |
| Model | A-1446-100-30 |
| Product Type | Compression Door Lock / Sealing Rod Latch |
| Material | Zinc Alloy |
| Surface Treatment | Electroplated Chrome |
| Color | Bright |
| Profile | Low Profile |
| Access Restriction | No Restriction |
| Installation Dimensions | Brackets and Nuts |
| Fixed Way | Adjustable |
| Type of Installation | Concealed Installation |
| Sealing Feature | Sealing Rod with Dust Cover |
| Load Type | Light Duty |
| IP Rating | IP65 |
| Compliance | UL FTTA2 / FTTA8 Class 1 |
Common Applications
- Electrical enclosures and control panels with unrestricted access
- Industrial cabinets and machinery doors requiring free opening
- Equipment access panels and service doors
- Emergency exit enclosures and egress paths
- General-purpose cabinets and storage enclosures
- Control cabinets and switchgear housings
- Sealed enclosure systems requiring dust and moisture protection
- Data center and server room cabinet doors with open access
- Telecommunication equipment housings
- Sealed environmental testing and clean room enclosures
Available Options
Access Configuration
- No Restriction / Free Opening (standard)
- Custom access options available upon request
Finish
- Electroplated Chrome Bright (standard)
- Custom finishes available upon request
Grip Range
- Standard adjustable grip
- Custom grip ranges available for specialized applications
Sealing Configuration
- Sealing rod with dust cover (standard)
- Custom sealing options available upon request
Mounting Configuration
- Bracket and nut (standard)
- Custom mounting solutions available upon request
Packaging
- Standard packaging
- Custom packaging available upon request
