Model: K333
Classification: Lock Key / Accessory
Compliance: UL FTTA2 / FTTA8 Category 1
Product Overview

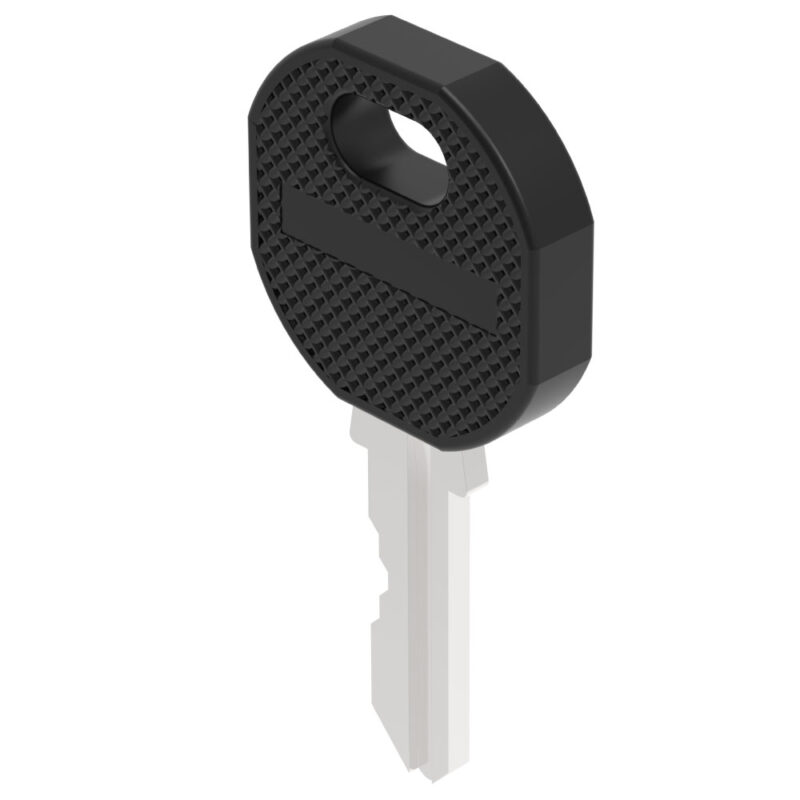

The K333 is a nickel-plated steel key with a glass-fiber reinforced nylon handle, manufactured for use in cabinet lock and enclosure locking systems that require custom multi-combination key profiles. It is designed as an accessory component for pin-tumbler lock cylinders including the I-9346 series, supporting individual key, keyed-alike, and master key configurations.
The handle is molded from PA66 reinforced with 30% glass fiber, selected for its dimensional stability, impact resistance, and resistance to creep under sustained grip load — properties that standard unreinforced nylon does not reliably provide in industrial use.
Construction Details

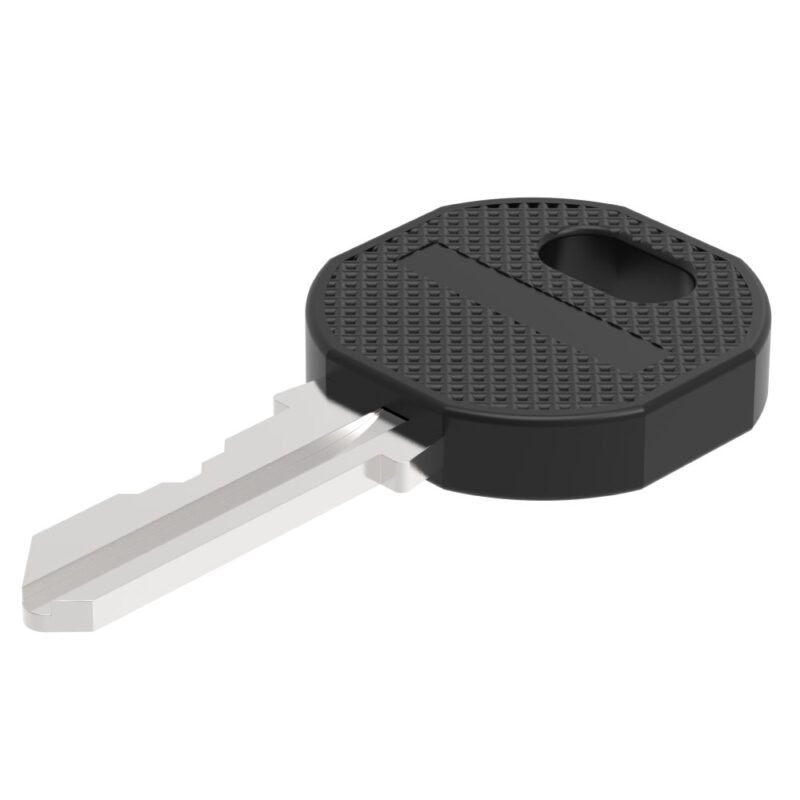

Key Body
- Base material: Steel
- Surface treatment: Nickel plating
- Function: Engages pin stack in compatible lock cylinder
- Corrosion performance: Nickel plating provides effective barrier against oxidation in standard industrial environments
- Dimensional accuracy: Critical for consistent pin stack engagement and smooth rotation across cylinder service life
Handle
- Material: PA66 + 30% glass fiber (GF30)
- Color: Black
- Mechanical properties of PA66 GF30:
| Property | Value |
| Tensile Strength | ~180 MPa |
| Flexural Modulus | ~9,000 MPa |
| Impact Resistance | High vs unreinforced PA66 |
| Operating Temperature | −40°C to +120°C |
| Chemical Resistance | Good against oils, greases, fuels |
| UV Resistance | Moderate — black pigment provides some UV stabilization |
Technical Data
| Parameter | Specification |
| Model | K333 |
| Key Body Material | Steel |
| Surface Finish | Nickel Plated |
| Handle Material | PA66 + 30% GF |
| Handle Color | Black |
| Key Type | Custom Multi-Combination |
| Cylinder Compatibility | Pin-tumbler cabinet lock cylinders |
| Compliance | UL FTTA2 / FTTA8 Category 1 |
Key Profile and Combination System
The K333 supports custom multi-combination key profiles. Keying options available:
| Keying Type | Code | Description |
| Individual Key | KD | Unique key per cylinder |
| Keyed Alike | KA | Single key operates multiple cylinders |
| Master Key | MK | Master opens all, sub-keys per unit |
| OEM Custom Profile | CP | Proprietary key section for brand control |
Minimum order quantities apply for custom profiles. Full keying schedules and key control documentation provided with volume orders.
Compatibility Notes
- Designed for use with K333-profile cabinet lock cylinders
- Confirm key profile with cylinder specification before ordering
- Handle accepts standard key tags and engraving for facility key management
- Custom handle colors available for color-coded key management systems
Compliance
- UL FTTA2 / FTTA8 Category 1 — verified for industrial and telecom enclosure applications
