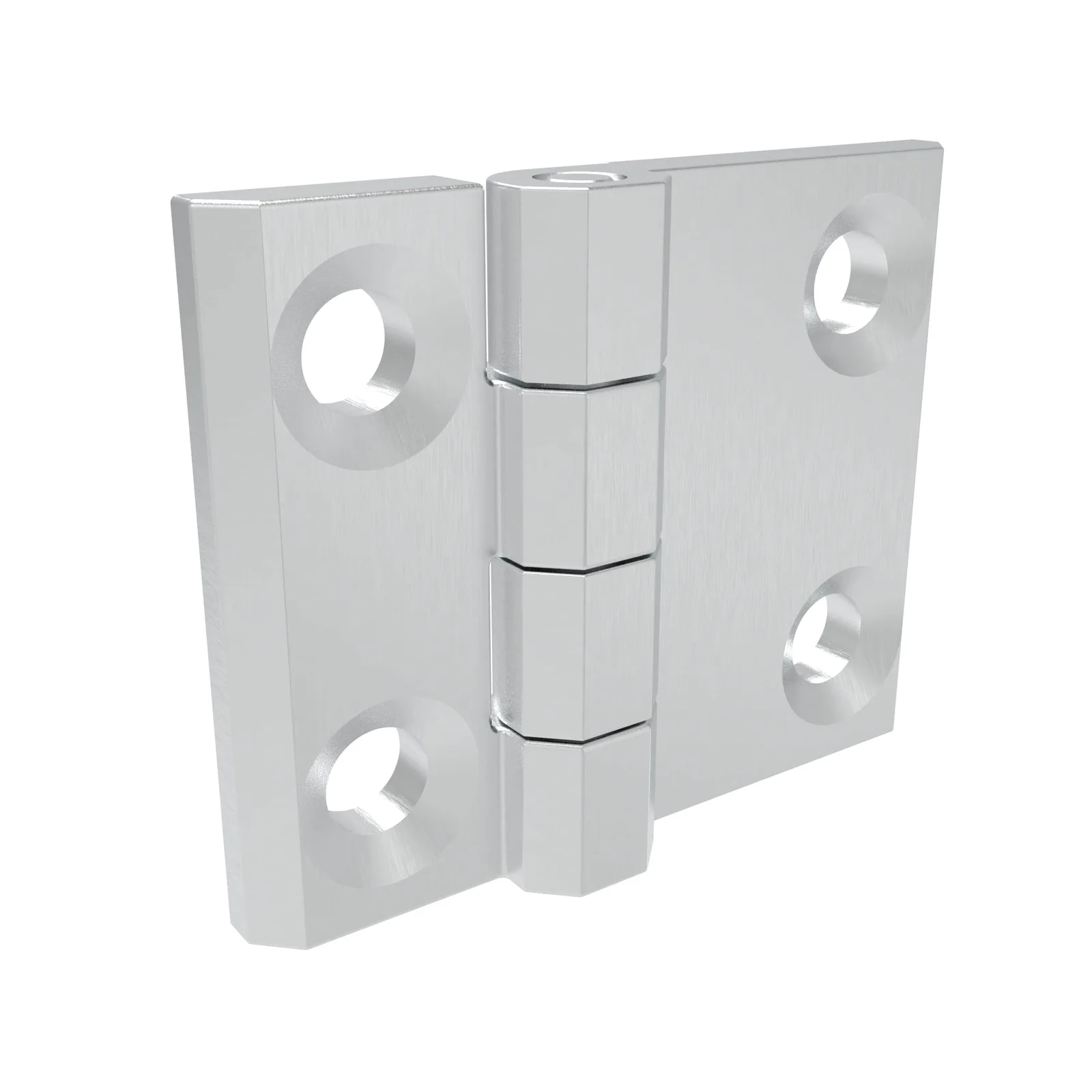

SL-H1-3101-5630-A1 Surface Fixed Hinges
The SL-H1-3101-5630-A1 is a 50x63 mm stainless steel surface mount hinge with a mirror-polished finish and M6 countersunk screw mounting: a corrosion-resistant, easy-clean hinge for equipment doors where appearance and washdown both matter.
- SKU : SL-H1-3101-5630-A1
Free-swinging hinges let the door rotate through its full range - most models allow a full 180° opening for unobstructed service access. Corner designs seat into the folded corners of formed sheet-metal doors for a flush, cost-effective installation, and removable versions let the door lift off for maintenance. Load ratings and installation dimensions per drawing.
Key Features
Material: Stainless Steel
Finish: Brushed And Polished
Mounting: Screw Mount
Compliance: REACH No.1907/2006
Applications
Electrical enclosures and control cabinets
Formed sheet-metal and corner-construction cabinet doors
Machinery guards and machine covers
Transportation and industrial vehicle equipment
requestDrawing.title
requestDrawing.desc
Frequently Asked Questions
View All→References
- ASTM B117-19, Standard Practice for Operating Salt Spray (Fog) Apparatus, ASTM International
- ISO 9227:2022, Corrosion tests in artificial atmospheres — Salt spray tests, International Organization for Standardization
- IEC 62262:2002+A1:2021, Degrees of protection against external mechanical impacts (IK code), International Electrotechnical Commission
How To
1. Screw-mount on formed doors
The 50x63 mm stainless steel surface mount hinge fixes with M6 countersunk screws directly on the door and frame surfaces.
2. Open a full 180° for service
Free-swinging hinges let the door rotate through its full range, giving unobstructed access for maintenance.
3. Choose mirror polish for washdown areas
The mirror-polished finish is a corrosion-resistant, easy-clean choice for equipment doors where appearance and washdown both matter.
4. Confirm corrosion performance for the bay
Validate the stainless body against salt-spray exposure on marine-adjacent or washdown equipment.
5. Check load ratings per drawing
Load ratings and installation dimensions are confirmed per drawing before specifying the hinge.
Ordering & customization terms
| MOQ from 100 pcs | details by product — ask us |
| OEM / ODM from 100 pcs | varies by product |
| Samples at actual cost | ~25 days if not in stock |
| Stock 10–15 days | production 15–20 days |
| T/T · PI in 24 h |
