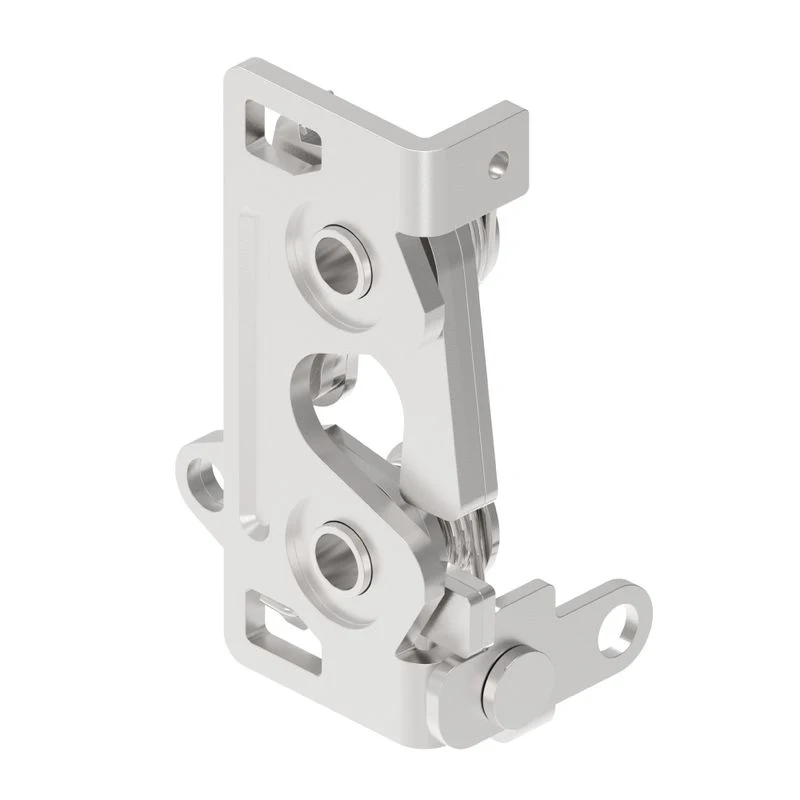

SL-4004-41 Double Rod Bottom and Vertical Drive Rotary Lock
The SL-4004-41 Double Rod Bottom and Vertical Drive Rotary Lock provides dual drive paths for secure sealing in high-vibration environments, with a 14,000N maximum load and galvanized or stainless steel construction. It complies with REACH No.1907/2006 and is suited for engineering vehicle doors, special vehicle hatches, and construction machinery covers.
- SKU : SL-4004-41 · 4004-41 · 4004/41
The SL-4004-41 is the double-rod member of the 4004 rotary lock family, combining bottom drive and vertical drive in one unit so a single lock seals two rod points on heavy sealed doors.
Either drive path rotates the same mechanism for two-point actuation, doubling clamping force along the door edge; specify left-hand or right-hand to match the hinge side.
A galvanized zinc alloy body with optional stainless steel carries loads up to 14,000N, built for sealed, dustproof and vibration-resistant environments, compliant with REACH No.1907/2006.
Choose the -41 when a door needs a bottom linkage and a vertical rod run together; compare the -42 for damped versions on vibrating machinery. Typical fits: engineering vehicle doors and RV storage compartments, with flexible MOQ for OEM projects.
Key Features
- Dual drive paths: bottom drive and vertical drive in one unit
- Double rod actuation for secure two-point sealing
- Galvanized zinc alloy body with optional stainless steel
- Maximum load capacity of 14,000N
- Supports left-hand and right-hand configurations
- REACH No.1907/2006 compliant
- Designed for sealed, dustproof, and vibration-resistant environments
Applications
- Engineering vehicle maintenance doors
- Off-road / special vehicle hatches
- RV / trailer storage compartment doors
- Pickup / truck toolboxes
- Construction machinery covers
- Generator sets / outdoor equipment boxes
