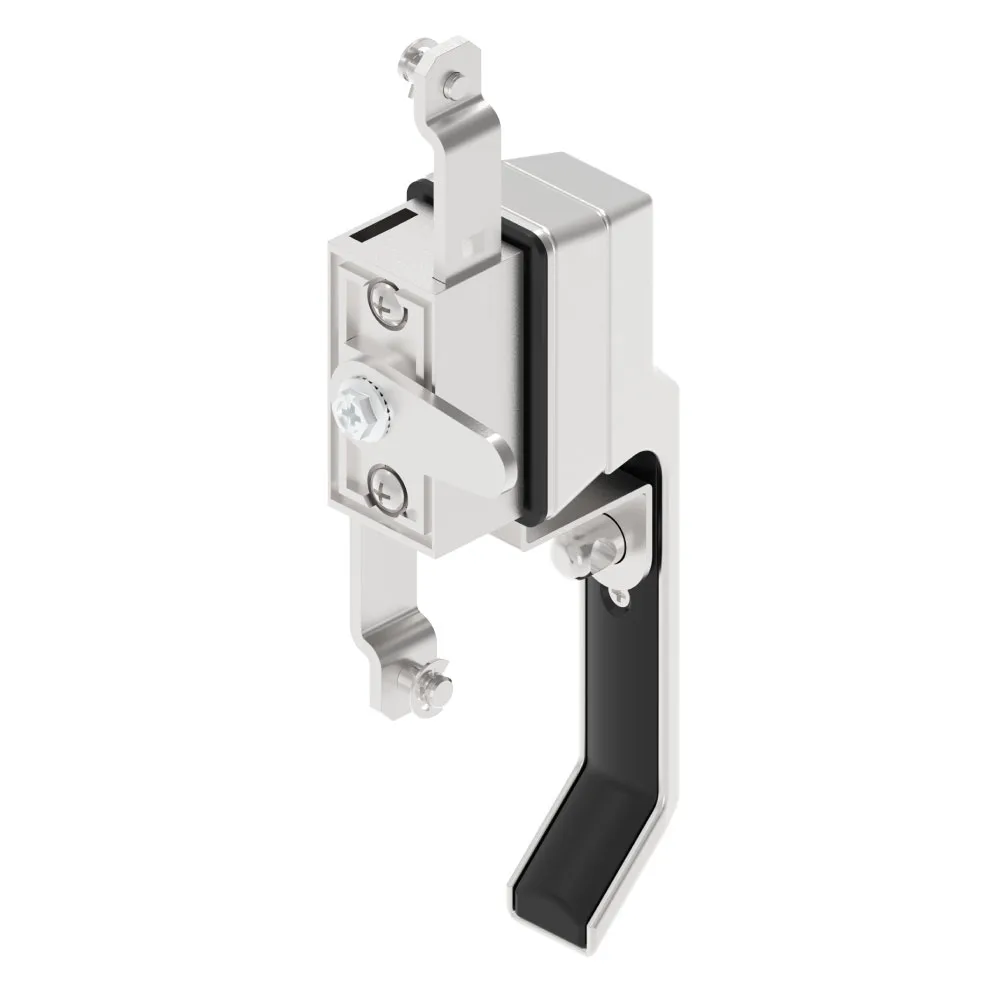

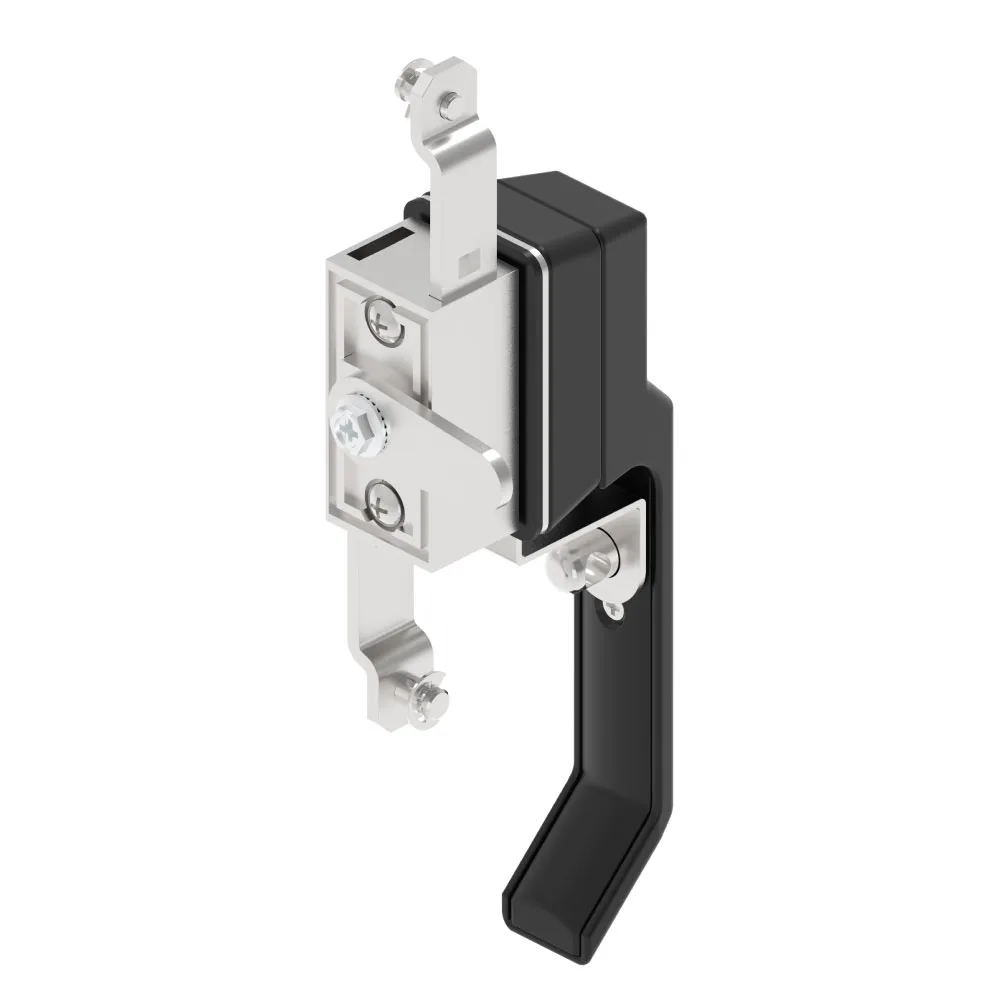

SL-A-2226 L-Handle Multi-Point Rod Lock
The SL-A-2226 is an L-handle multi-point rod lock: the L-shaped long handle gives extra leverage for gloved or wet-hand operation, driving vertical rods for multi-point locking on large enclosure doors.
- SKU : SL-A-2226
Compared with single-point locking, driving the door edge at two or three points markedly increases clamping force, vibration resistance, and gasket compression on tall or wide panels. Rods, guides, and end fittings are matched to the enclosure profile, with left or right-hand orientation and key or tool cylinder options. Rated IP65; REACH No.1907/2006 compliant.
Key Features
Material: Zinc Alloy/SUS304
Configuration: Optional Padlock
Protection rating: IP65
REACH No.1907/2006 compliant
Applications
Electrical enclosures and control cabinets
Communication and network cabinets
Distribution cabinets and switchgear
Energy storage and new energy equipment cabinets
Outdoor enclosures and industrial equipment doors
Self-service equipment and kiosk enclosures
requestDrawing.title
requestDrawing.desc
Frequently Asked Questions
View All→References
- IEC 60529:1989+A1+A2, Degrees of protection provided by enclosures (IP Code), International Electrotechnical Commission
- IEC 61373:2010, Railway applications — Rolling stock equipment — Shock and vibration tests, International Electrotechnical Commission
- IEC 62262:2002+A1:2021, Degrees of protection against external mechanical impacts (IK code), International Electrotechnical Commission
How To
1. Give gloved hands real leverage
The L-shaped long handle gives extra leverage for gloved or wet-hand operation on large enclosure doors.
2. Drive vertical rods for edge clamping
The handle drives vertical rods for multi-point locking that clamps the door edge at two or three points.
3. Cover large doors that single latches miss
Multi-point clamping adds clamping force, vibration resistance, and gasket compression on tall or wide panels.
4. Fit the fleet with matched hardware
Rods, guides, and end fittings match the enclosure profile, with left- or right-hand orientation and key or tool cylinder options.
5. Verify the IP65 seal in service
The lock is rated IP65; re-check rod adjustment after transport vibration so the gasket line stays compressed.
Ordering & customization terms
| MOQ from 100 pcs | details by product — ask us |
| OEM / ODM from 100 pcs | varies by product |
| Samples at actual cost | ~25 days if not in stock |
| Stock 10–15 days | production 15–20 days |
| T/T · PI in 24 h |
