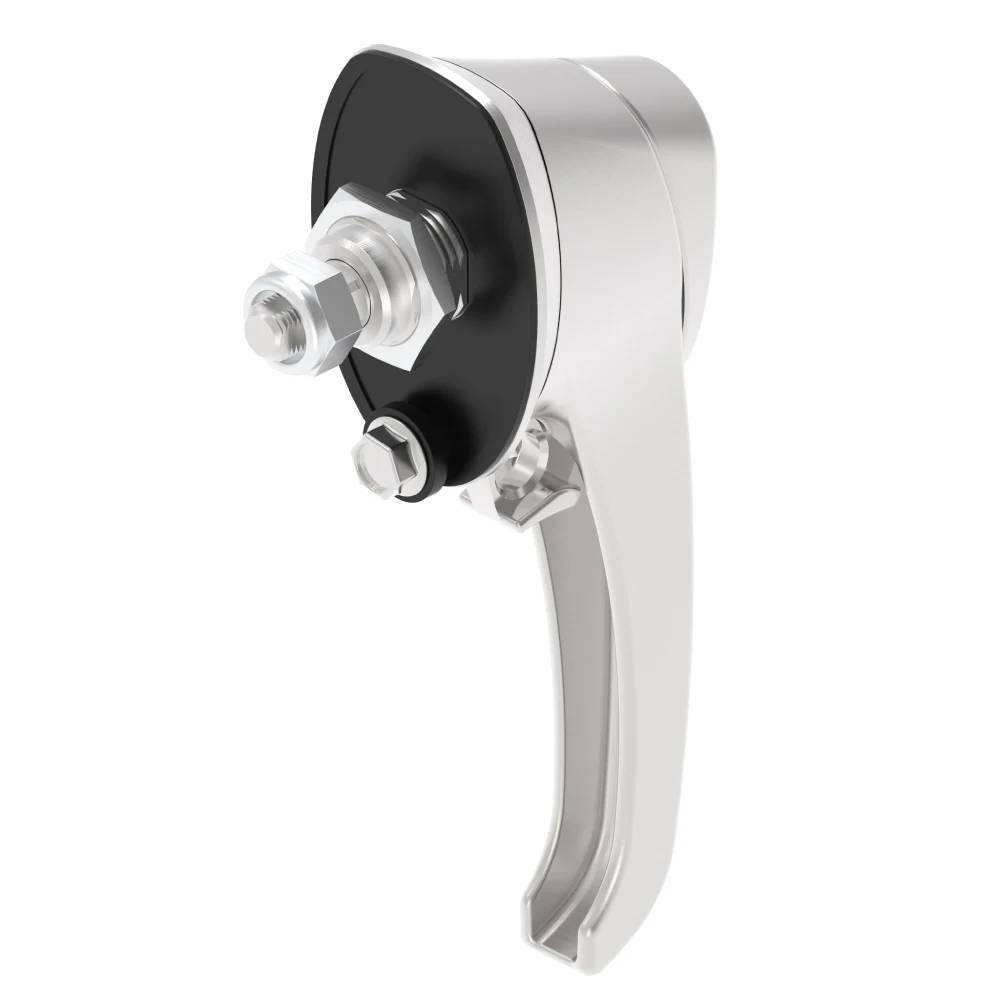

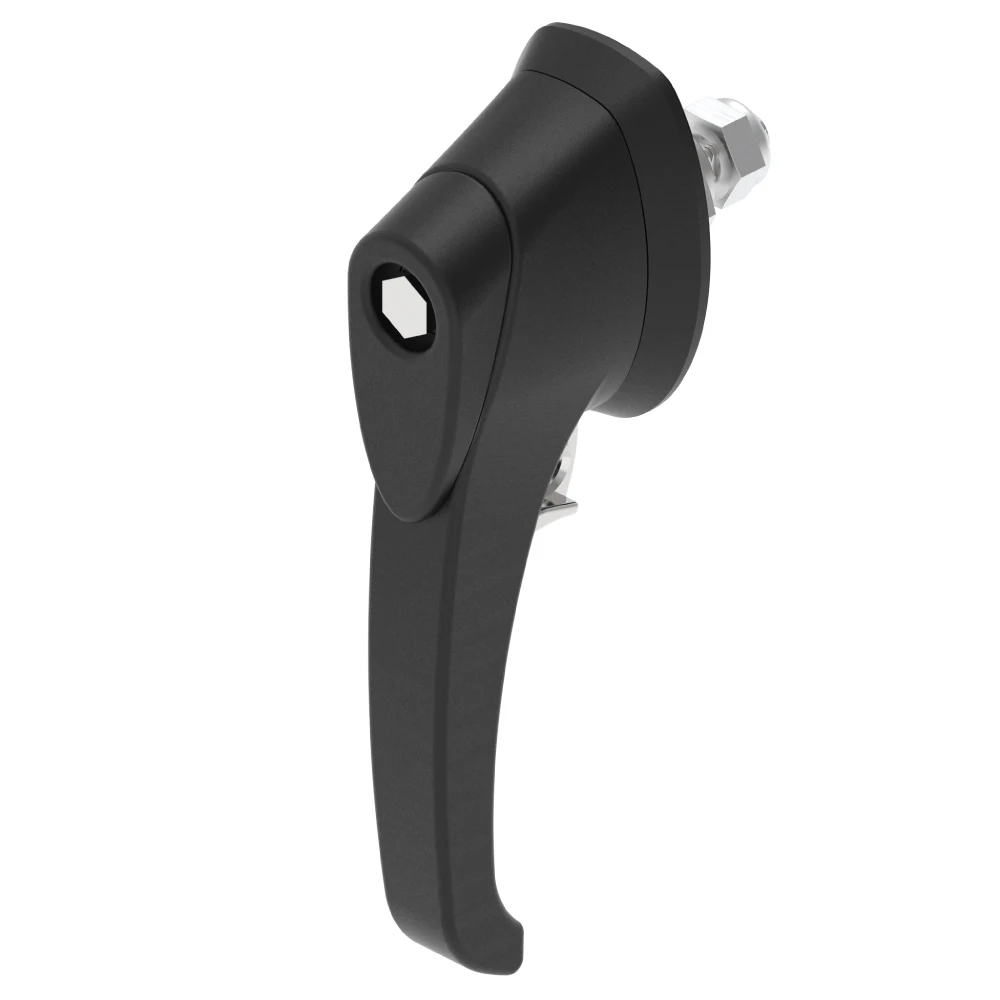

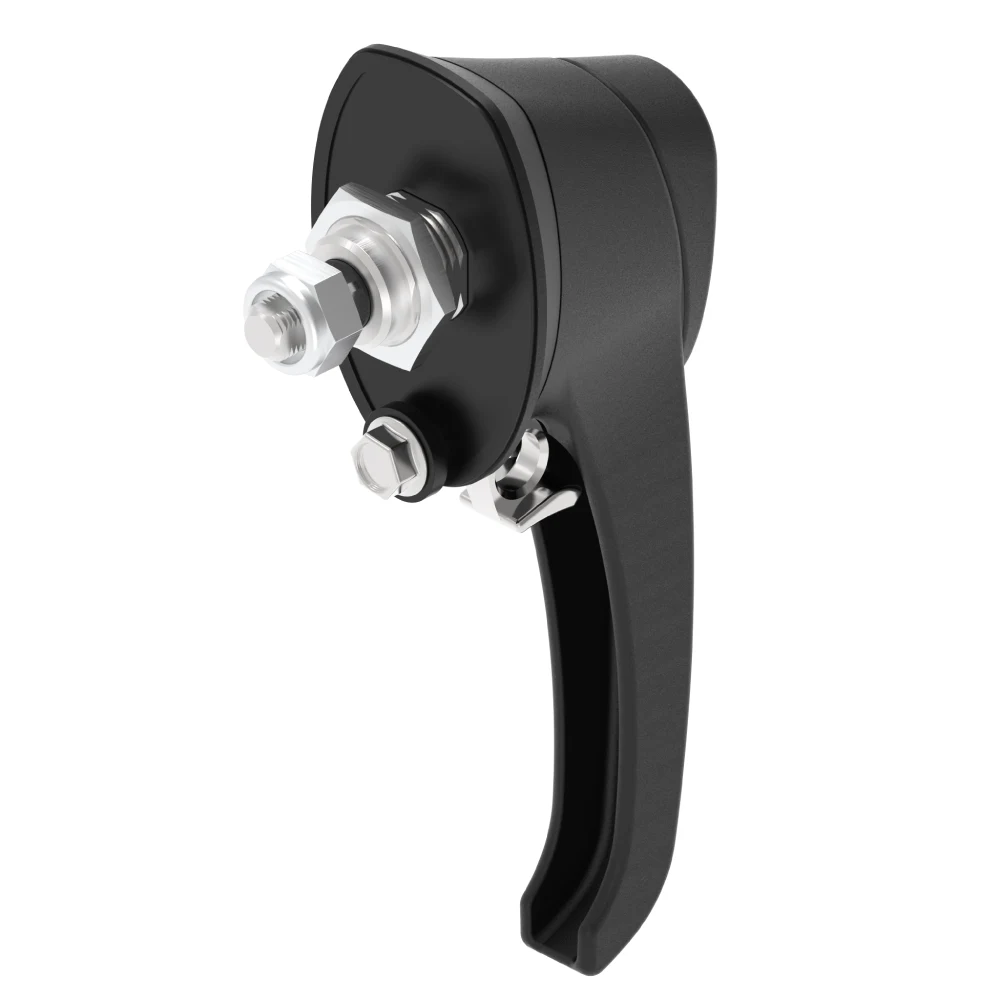

SL-B-2309-160 L-Handle Turn Latch Lock (Hexagon 6mm)
The SL-B-2309-160 L-Handle Turn Latch Lock (Hexagon 6mm) is a stainless L-handle quarter turn lock (Hexagon 6mm) with padlock eye and IP65 sealing for electrical enclosures, box transformers and energy storage cabinets.
- SKU : SL-B-2309-160
A 6mm hexagon insert keeps the {name} simple to service. The L-handle drives the rear cam through a 90° turn to lock or release cabinet and equipment doors. The 22×20mm double-hole mounting fits standard industry cut-outs, and the padlock eye accepts a padlock or seal for access management. Its 6mm hexagon insert opens with a 6mm hex key, keeping operation straightforward for service teams. Made from polished stainless steel and sealed to IP65, this latch handles harsh outdoor conditions: electrical enclosures, control cabinets, compact transformer stations, generator housings, and battery storage cabinets.
Key Features
Polished stainless steel L-handle and housing
22×20mm double-hole mounting, standard cut-out
Padlock eye for padlock or security seal
6mm hexagon insert, opens with 6mm hex key
90° cam action locks and releases the door
IP65 sealed, compliant with REACH No.1907/2006
Applications
Outdoor electrical enclosures
Distribution and control cabinets
European-style box transformers
Generator sets
Energy storage cabinets
Communication cabinets
