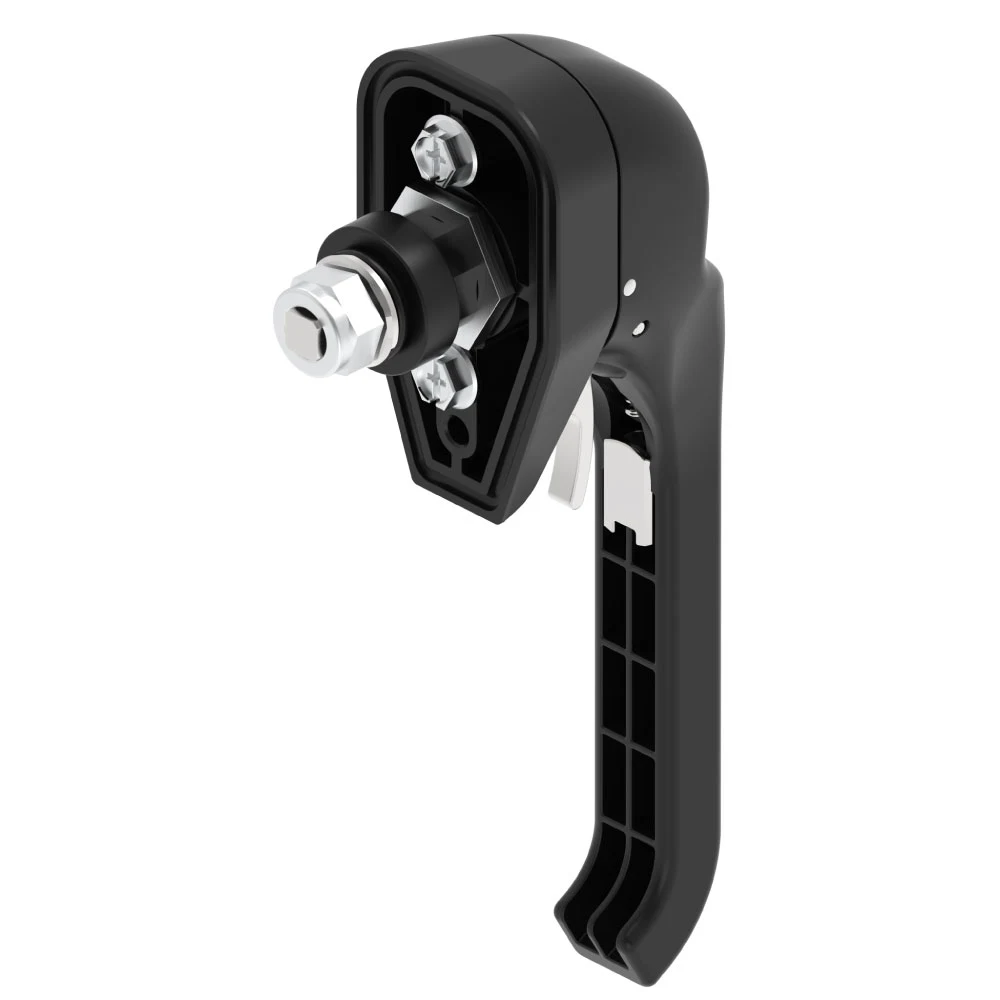

SL-B-2413-024 L-Handle Turn Latch Lock (Slotted 2×4mm)
The SL-B-2413-024 L-Handle Turn Latch Lock (Slotted 2×4mm) is a black-housing L-handle quarter turn lock (Slotted 2×4mm) with padlock eye and IP65 sealing for electrical enclosures and energy storage cabinets.
- SKU : SL-B-2413-024
The SL-B-2413-024 L-Handle Turn Latch Lock (Slotted 2×4mm) combines a black-coated housing with a slotted insert.
The L-handle turns the rear cam through 90° to lock or release cabinet and equipment doors. The 22×20mm double-hole mounting matches standard industry cut-outs, and the padlock eye accepts a padlock or seal. Its 2×4mm slotted insert opens with a flat screwdriver, practical for panels that service staff open often. The black-coated stainless steel / zinc alloy body is IP65 sealed for outdoor service on electrical enclosures, control and distribution cabinets, transformer stations, and battery storage cabinets.
Key Features
Black-coated housing, low visual profile on dark panels
22×20mm double-hole mounting, standard cut-out
Padlock eye for padlock or security seal
2×4mm slotted insert, opens with flat screwdriver
90° cam action locks and releases the door
IP65 sealed, compliant with REACH No.1907/2006
Applications
Outdoor electrical enclosures
Control cabinets
European-style box transformers
Generator sets
Energy storage cabinets
Outdoor equipment doors
