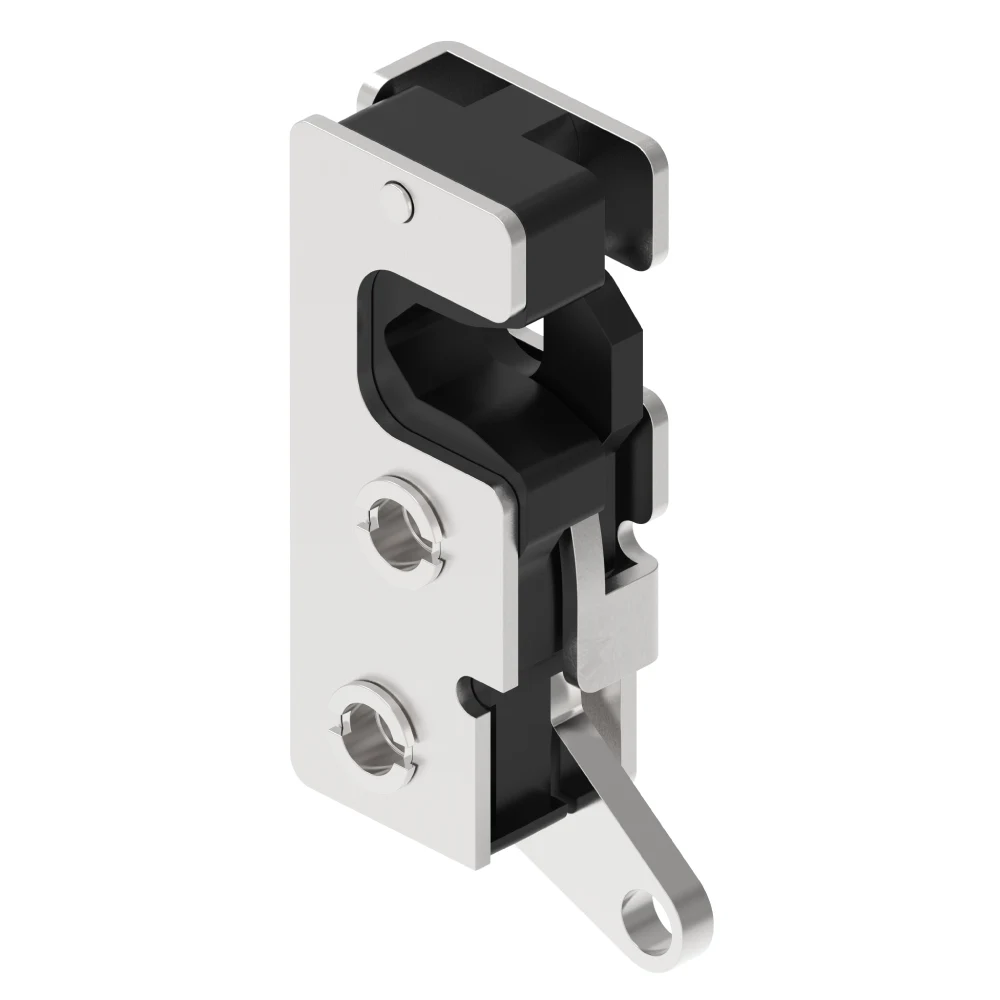

SL-4005-32 Shock-Absorbing Top Drive Rotary Lock
The SL-4005-32 Shock-Absorbing Top Drive Rotary Lock is a REACH-compliant industrial rotary lock designed for top drive actuation with a shock-absorbing mechanism, rated to 3600N and compatible with a Φ9.5mm striker; available in galvanized or stainless steel with single- or double-stage, left- or right-hand mounting, it secures industrial cabinets, vehicle compartments, generator sets and outdoor equipment enclosures.
- SKU : SL-4005-32 · 4005-32 · 4005/32
The SL-4005-32 combines top-entry drive with a built-in shock absorber, giving high-mounted linkage layouts the same vibration protection as the rest of the -3x series.
Drive from above turns the cam while the damper cushions each engagement, cutting impact transmission to the striker on vibrating doors; single or double stage and both orientations are configurable.
It is built in galvanized steel or stainless steel, mounts via a Φ7.2 through hole with M6x1 or 1/4-20 threads, handles 9.5mm strikers and a 3,600N load, and meets REACH No.1907/2006.
Choose the -32 over the -31 when tall panels see constant vibration, such as on engineering or off-road vehicles; both share one cut-out for easy upgrades. Flexible MOQ and OEM options are open for trial and volume orders.
Key Features
- \n
- Top Drive mechanism designed for reliable actuation in sealed and vibration-prone environments \n
- Available in galvanized steel with optional stainless steel construction for enhanced corrosion resistance \n
- Maximum load rating of 3600N and maximum striker size of 9.5mm \n
- Built-in shock-absorbing mechanism reduces impact stress and extends service life \n
- Supports single-stage and double-stage configurations for flexible latching depth \n
- Left-hand and right-hand mounting options to suit different door layouts \n
- Compatible with Φ7.2 through holes, M6×1, or 1/4-20 threaded mounting patterns \n
- REACH No.1907/2006 compliant for use in regulated industrial and transportation markets \n
Applications
- \n
- RV / trailer storage compartment doors \n
- Engineering vehicle maintenance doors \n
- Pickup / truck toolboxes \n
- Generator sets / outdoor equipment boxes \n
- Agricultural machinery covers \n
- Special vehicle small hatches \n
