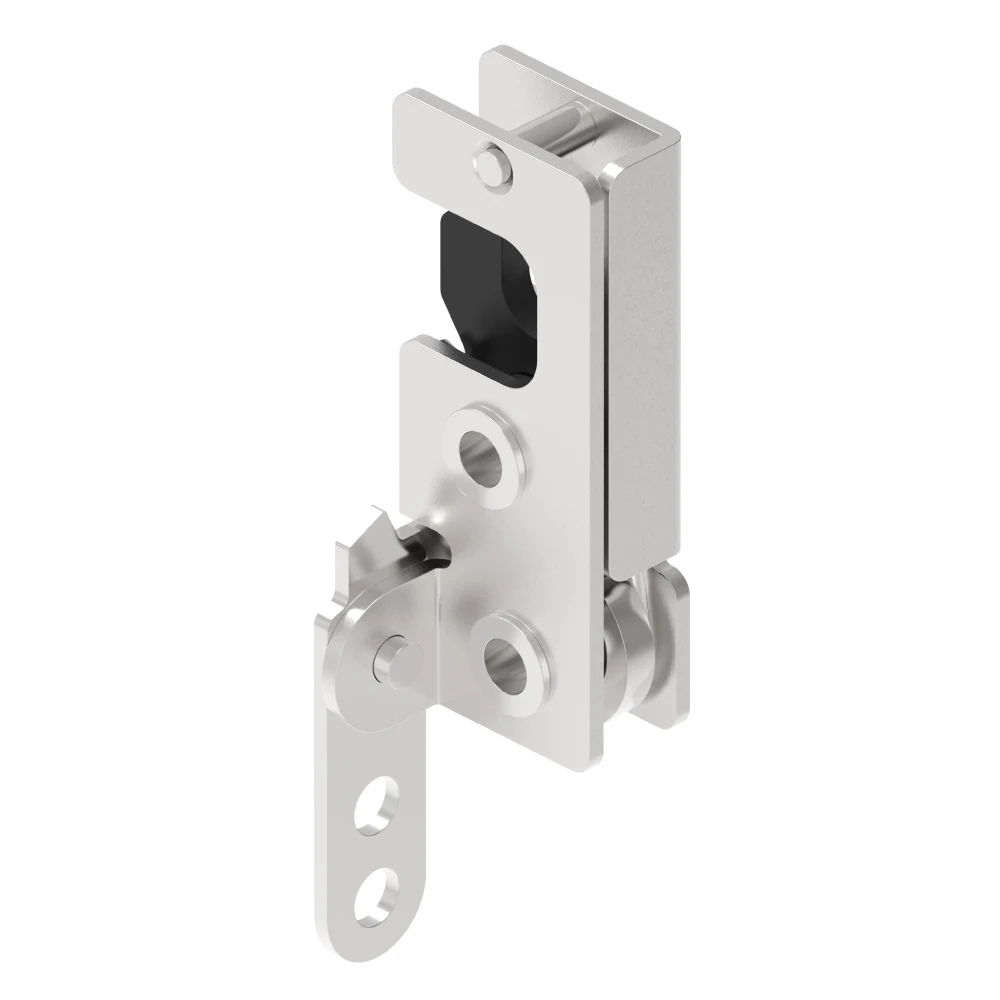

SL-4005-51 Inline Drive Rotary Lock
The SL-4005-51 Inline Drive Rotary Lock is a left-hand, single-stage or double-stage industrial lock that uses a compact inline drive mechanism to secure industrial cabinets, equipment doors, and vehicle hatches, offering galvanized steel or stainless steel construction, a 3600N maximum load, and REACH No.1907/2006 environmental compliance for demanding B2B applications.
- SKU : SL-4005-51 · 4005-51 · 4005/51
The SL-4005-51 is the compact inline-drive member of the 4005 family, a straight-line input that drops neatly into cable-linkage runs where space behind the panel is tight.
The inline drive path pushes the cam through a straight, low-profile axis, so remote cable or rod actuation stays close to the door surface; single-stage or double-stage engagement and both orientations are available.
Built from galvanized steel or stainless steel, it mounts through a Φ7.2 hole with M6x1 or 1/4-20 threads, accepts strikers up to 9.5mm and is rated to 3,600N under REACH No.1907/2006.
Choose the -51 when a cable linkage must fit a shallow cavity; for the same layout under vibration, order the shock-absorbing -52. It suits RV compartments, pickup toolboxes and special-vehicle hatches, with flexible MOQ for trial orders.
Key Features
- Compact inline drive mechanism with left-hand single-stage or double-stage options
- Galvanized steel construction with optional stainless steel for enhanced corrosion resistance
- Compatible with Φ7.2 through holes, M6x1, and 1/4-20 threaded mounting
- Maximum load capacity of 3600N for secure industrial locking
- Supports left-hand orientation with right-hand variants available on request
- REACH No.1907/2006 compliant for environmental and safety standards
- Designed for bulk project matching and custom installation requirements
Applications
- RV / trailer storage compartment doors
- Engineering vehicle maintenance doors
- Pickup / truck toolboxes
- Generator sets / outdoor equipment boxes
- Agricultural machinery / construction machinery covers
- Special vehicle small hatches
