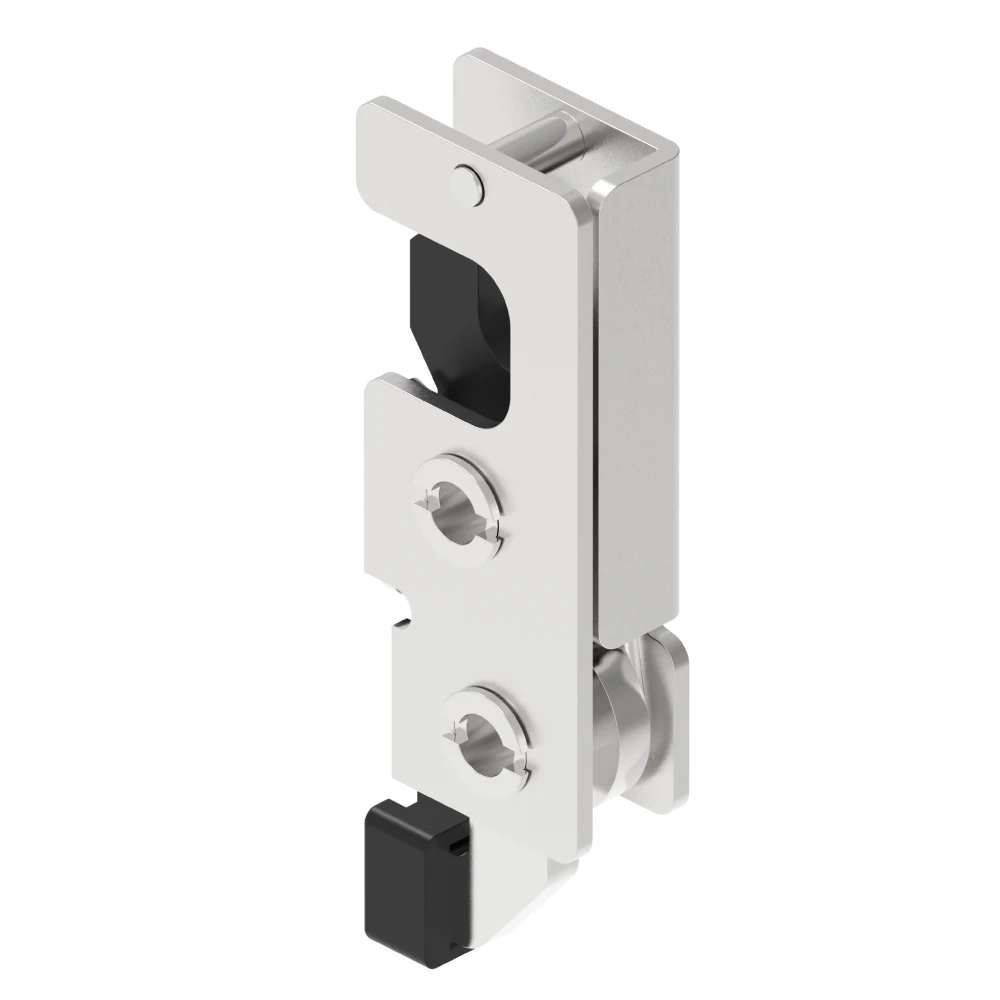

SL-4005-71 Direct Drive Rotary Lock
The SL-4005-71 Direct Drive Rotary Lock is a left-hand, single-stage or double-stage industrial lock that uses a direct drive mechanism to deliver precise actuation for securing industrial cabinets, equipment doors, and vehicle hatches, offering galvanized steel or stainless steel construction, a 3600N maximum load, and REACH No.1907/2006 environmental compliance for demanding B2B applications.
- SKU : SL-4005-71 · 4005-71 · 4005/71
The SL-4005-71 strips the drive chain to its shortest form: direct input, fewer parts and fewer failure points for low-maintenance panels in the 4005 family.
The direct drive path moves the cam without intermediate links, so actuation stays precise and responsive with minimal parts to service; single-stage or double-stage engagement and both orientations are available.
A galvanized steel or stainless steel body mounts through a Φ7.2 hole with M6x1 or 1/4-20 threads, accepts strikers up to 9.5mm and is rated to 3,600N under REACH No.1907/2006.
Choose the -71 when reliability and easy maintenance outrank features on cost-sensitive panels; add the damper of the -72 for vibrating machinery. It suits generator enclosures and RV compartments, with flexible MOQ for OEM batches.
Key Features
- Direct drive mechanism with left-hand single-stage or double-stage options
- Galvanized steel construction with optional stainless steel for enhanced corrosion resistance
- Direct actuation delivers precise and responsive locking performance
- Compatible with Φ7.2 through holes, M6x1, and 1/4-20 threaded mounting
- Maximum load capacity of 3600N for secure industrial locking
- Supports left-hand orientation with right-hand variants available on request
- REACH No.1907/2006 compliant for environmental and safety standards
Applications
- RV / trailer storage compartment doors
- Engineering vehicle maintenance doors
- Pickup / truck toolboxes
- Generator sets / outdoor equipment boxes
- Agricultural machinery / construction machinery covers
- Special vehicle small hatches
