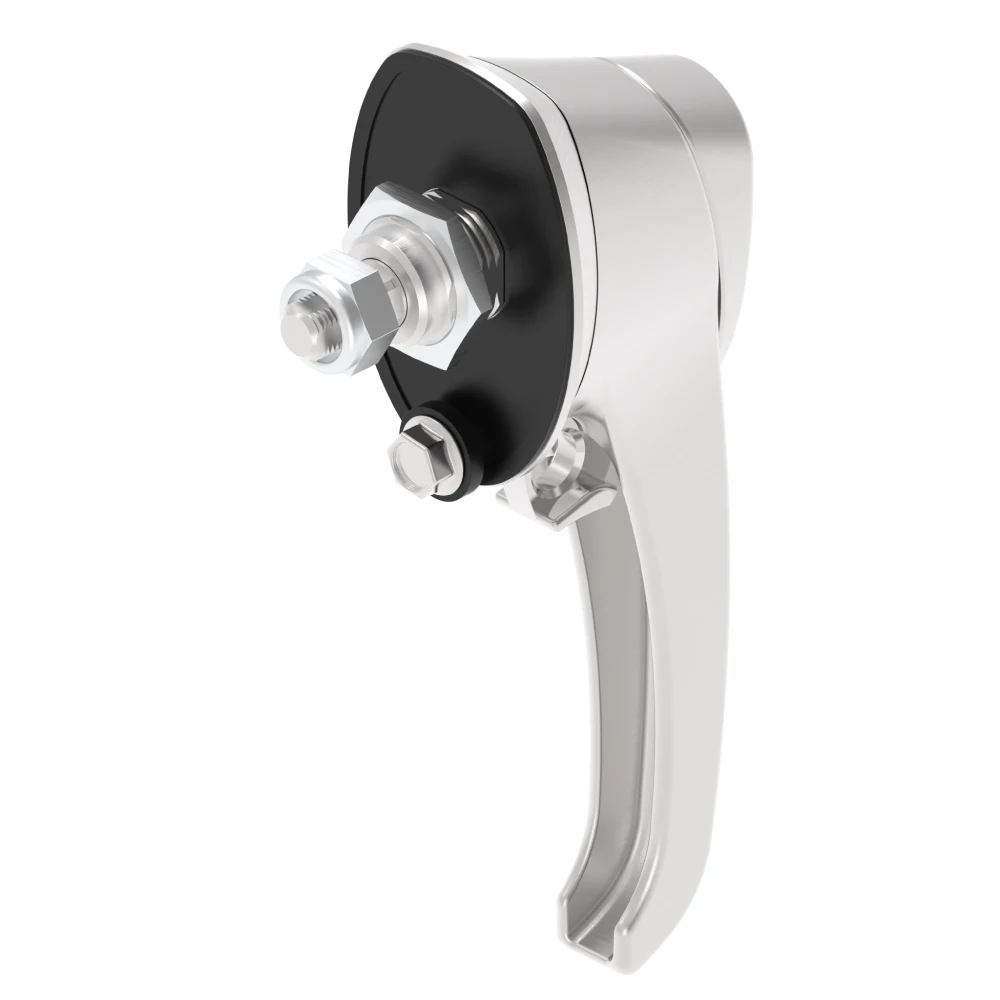

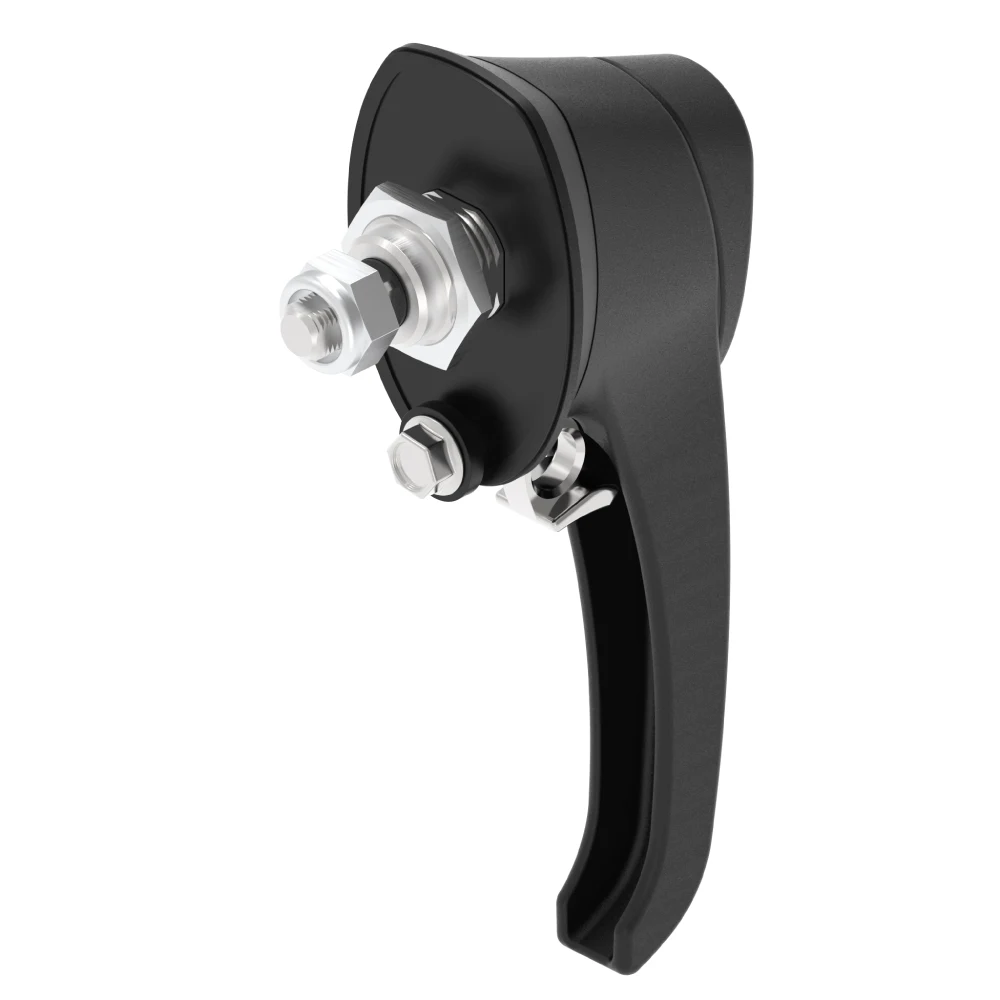

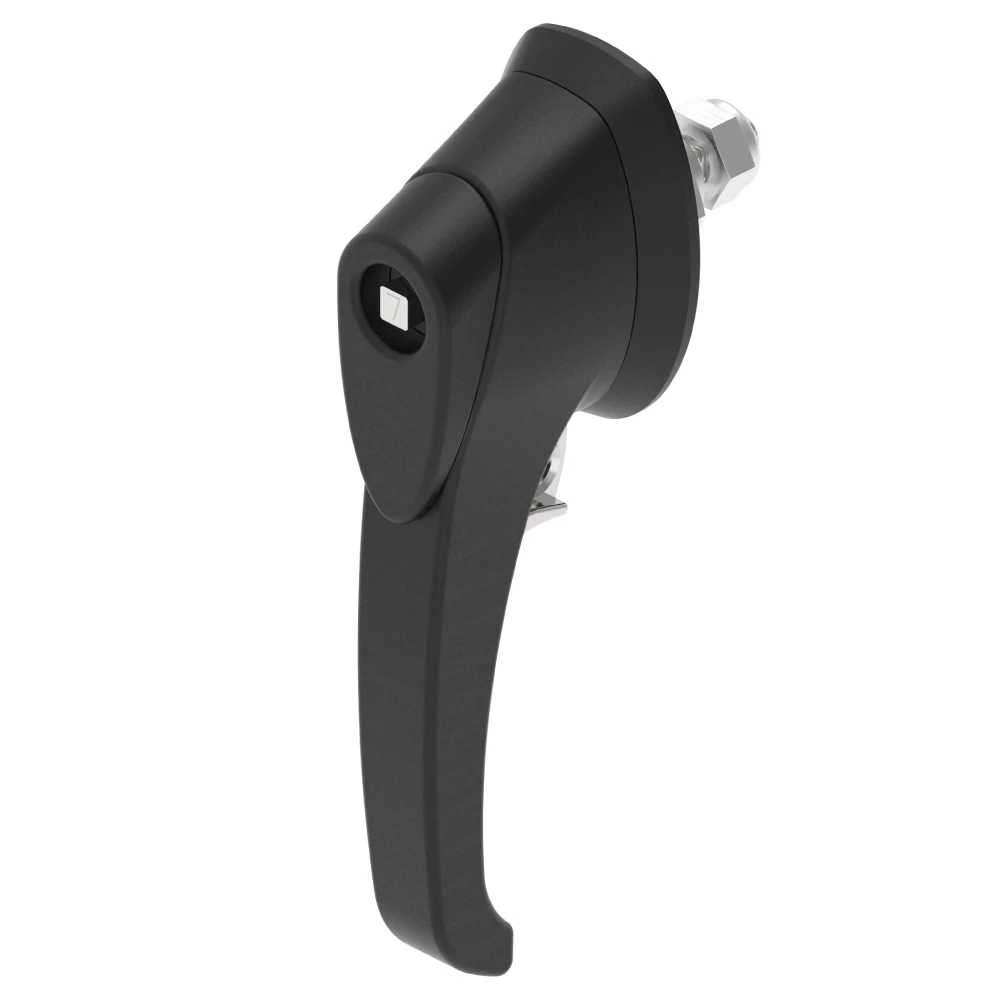

SL-B-2309-047 L-Handle Turn Latch Lock (Square 7mm)
The SL-B-2309-047 L-Handle Turn Latch Lock (Square 7mm) is a stainless L-handle quarter turn lock (Square 7mm) with padlock eye and IP65 sealing for electrical enclosures, box transformers and energy storage cabinets.
- SKU : SL-B-2309-047
The {name} combines a stainless L-handle with a 7mm square insert. The L-handle drives the rear cam through a 90° turn to lock or release cabinet and equipment doors. The 22×20mm double-hole mounting fits standard industry cut-outs, and the padlock eye accepts a padlock or seal for access management. Its 7mm square insert works with the square keys common in railway and telecom infrastructure. The polished stainless steel body seals to IP65, ready for long service outdoors. It is widely used on electrical enclosures, control and distribution cabinets, box transformers, generator doors, and energy storage systems.
Key Features
Polished stainless steel L-handle and housing
22×20mm double-hole mounting, standard cut-out
Padlock eye for padlock or security seal
7mm square insert for railway and telecom keys
90° cam action locks and releases the door
IP65 sealed, compliant with REACH No.1907/2006
Applications
Outdoor electrical enclosures
Distribution and control cabinets
European-style box transformers
Generator sets
Energy storage cabinets
Communication cabinets
