Designing a Remote Cable Release System for Rotary Latches

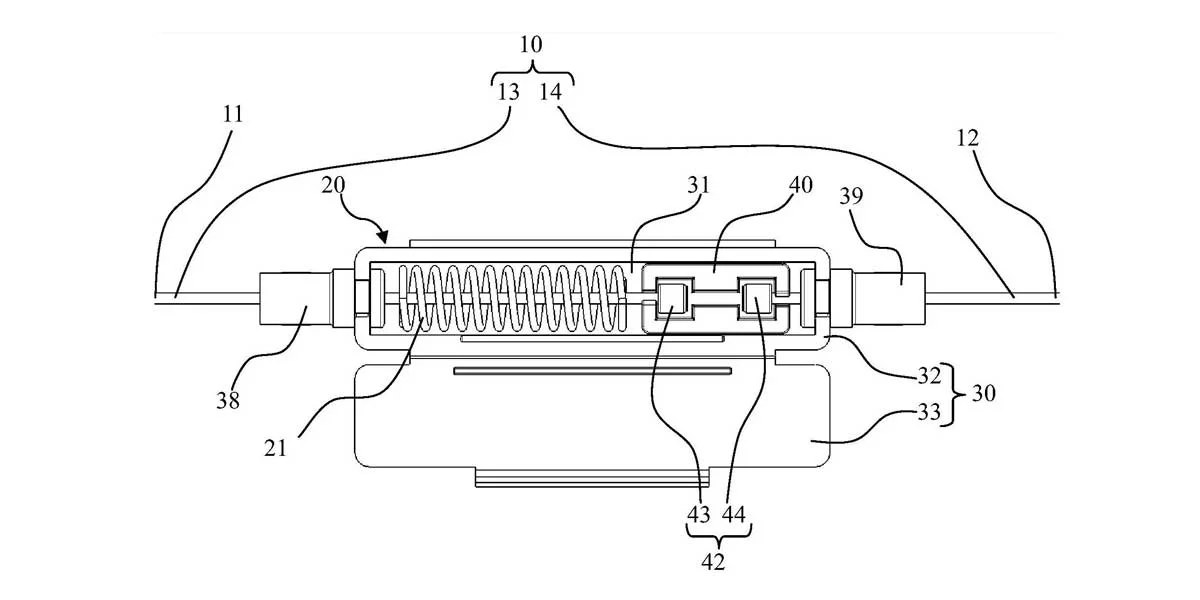

A remote cable release system lets you open a rotary latch from a distance: the handle or button sits away from the latch body, and a Bowden cable — a stranded inner wire sliding inside a flexible outer conduit — transmits the pulling motion that trips the latch's release lever. If the operator cannot, or should not, touch the latch directly, the cable does the reaching.

You need this arrangement surprisingly often: large doors latched at two points, compartments that must open one-handed, panels that must release while the operator stays clear of moving parts. Designing the system well is mostly a budgeting exercise in travel and force. This guide walks through the complete process: latch requirements, cable efficiency, handle matching, multi-point synchronization, failure prevention, and maintenance.

What Is a Remote Cable Release?

In one sentence: a remote cable release is a mechanical link that moves the release lever of a rotary latch through a Bowden cable, so the actuation point — a handle, lever, or push button — can sit anywhere the cable can reach.

A Bowden cable assembly has three parts: the inner wire, the outer conduit, and the end fittings (ferrules, adjusters, and swivels) that anchor both ends. The conduit is fixed at both ends; when you pull the handle, the inner wire shortens relative to the conduit and the far end of the wire drags the latch's release lever through its travel. Most industrial rotary latches are two-stage designs — the pawl holds the striker in a primary (fully closed) position and a secondary (safety) position — so the release system must move the pawl far enough to clear both stages before the door can swing free.

When Do You Need One?

• Multi-point latching on large doors. Tall or wide doors flex and vibrate; a single latch lets the far edge chatter and leak. Two or more latches along the edge solve that — but nobody wants to walk around releasing each one by hand. One handle, one cable run, two latches.
• One-hand operation. Drivers and operators often have the other hand occupied — holding a light, a tool, or the grab rail. A handle near the door edge that pops the latch with a single pull is a real productivity and safety gain.
• A safe release position. Engine compartments, battery boxes, and hot or pressurized enclosures should release from a position that keeps the operator's hand out of the hazard zone when the door first cracks open.
• Hidden or flush handles. Styling and anti-tamper requirements often demand a clean outer skin. A cable lets the latch stay behind the panel while the visible handle sits in a recess or behind trim.

The Three Design Essentials

1. Latch release travel and release force

Start at the latch, not the handle. From the latch datasheet (or by measurement at the release lever tip) you need two numbers: the release travel — how far the lever must move to clear both pawl stages — and the release force at that point, under worst-case conditions: door seal compressed, striker loaded, low temperature. Then add margin: 10–15% on travel for manufacturing tolerance and wear, and at least 30% on force for seal preload variation and contamination.

2. Cable system efficiency

The cable throws away force at every bend. A straight, well-supported Bowden run can transmit around 90% or more of the input force; every 90° bend typically costs another 5–10%, and a full 180° bend can cost 10–15%, depending on cable quality and liner material. The rules of thumb are simple:

• Keep bend radii generous — at least 8–10 times the conduit diameter, and rarely below 100 mm on industrial equipment.
• Keep the total accumulated bend angle below roughly 360°; if the routing demands more, reroute or split the system.
• Support the conduit so it cannot shift when the wire is pulled — any conduit movement is stolen travel.

Work the numbers once before you freeze the routing: if your handle delivers 20 N and the run totals 30% loss, only about 14 N arrives at the latch. If the latch needs 15 N in the worst case, the design fails on paper before it fails in the field.

3. Handle-side travel matching

Travel passes through a Bowden cable almost 1:1 — the inner wire moves the same distance at both ends, minus a small amount of conduit compression. So the handle must generate at least the latch release travel plus free play. If finger travel is limited, use a lever or cam at the handle to trade force for travel. Leave 2–4 mm of free play at the released end so door vibration, seal compression, and cable temperature growth never hold the pawl half-off its seat — a classic cause of doors that pop open on rough roads.

Synchronized Release for Multi-Point Latching

Two latches on one handle introduce a new problem: force and travel must divide evenly, or one latch releases while the other stays locked. Three proven layouts:

• Equalizer bar (balancing beam). The primary cable pulls the center of a small pivoted bar; two branch cables, one to each latch, attach at its ends. The bar self-balances travel differences, so both latches see nearly identical motion. This is the most forgiving layout and the default choice for new designs.
• Y-splitter. A splitter housing divides one inner wire into two branch conduits. Compact, but each branch must be adjusted independently and there is no self-balancing.
• Series routing. One continuous cable trips latch A, then continues to latch B. Simple and cheap, but the latches release in sequence, and the second latch inherits the travel error of the first. Acceptable on small doors; risky on large ones.

Whatever the layout, give each branch its own threaded adjuster and set the release sequence deliberately: on a two-latch door, both pawls should clear the primary stage within a small fraction of the total handle stroke — otherwise the door twists against the still-locked latch and wears the striker.

Common Failure Modes and How to Prevent Them

Failure mode	Root cause	Prevention
Cable stretch / growing free play	Initial seating of strands and fittings, plus long-term settling under load	Pre-cycle the cable 50–100 times at assembly; provide threaded adjusters with at least 10 mm of range; re-check free play after the first weeks in service
Binding or sticking	Bend radii too tight, conduit crushed by clamps, kinks from installation	Respect minimum radii, use P-clips instead of tight zip-ties, support the conduit every 300–500 mm, never route against an edge under tension
Winter freezing	Water enters the conduit and freezes, locking the inner wire	Use sealed-end conduit or bellows at the handle, route with a low-point drain, choose low-temperature liner grease, protect exposed ends with dust boots
Chafing at panel pass-throughs	Conduit rubs against sharp sheet-metal edges until the liner or the wire is cut	Fit grommets or bulkhead fittings at every pass-through; de-burr or roll edges; add a wear sleeve where contact is unavoidable
Corrosion of the inner wire	Moisture and road salt inside an unlined conduit	Specify a stainless inner wire in a lined conduit; re-lubricate during scheduled maintenance

Commissioning and Maintenance Checklist

1. With the striker unloaded, verify the release lever reaches full travel and both pawl stages clear; repeat with the door closed and the seals compressed.
2. Measure release force at the handle with a spring scale; compare it against the design budget, including worst-case seal preload.
3. Cycle the system 50 times; confirm the free play settles at 2–4 mm and re-adjust if necessary.
4. Inspect every clamp, pass-through, and bend radius against the drawing.
5. In service: re-check free play and cable tension at defined intervals (quarterly for high-cycle doors, annually otherwise), re-lubricate the inner wire, and replace the cable at the first sign of fraying, flattened conduit, or corroded fittings.

Rotary Latches Designed for Cable Actuation

The latch half of the system matters as much as the cable. SecuriLock's rotary latch line covers the drive geometries cable systems need. The extended vertical drive rotary lock offers an extended release-lever arrangement that gives cable linkages more usable travel and easier routing on tall doors and multi-point layouts. Where the cable must approach from below — along a door's bottom edge or from a floor-mounted handle — the bottom drive rotary lock keeps the run short and the bend count low. You can compare drive geometries in our drive-position selection guide, or browse the full rotary latch product range.

Need a specific lever arm, a cable interface, or a latch dimensioned for your release budget? SecuriLock supports custom and OEM configurations — send your door layout and an engineer will reply within 24 hours.

Get the System Right the First Time

A remote cable release is unforgiving of guesswork: budget travel and force at the latch, protect efficiency in the routing, and give every branch an adjuster. If you would rather hand the problem to people who build latches for a living, contact the SecuriLock engineering team — share your door drawing, latch positions, and handle location, and you will have a workable release-system proposal, including custom options, within 24 hours.
