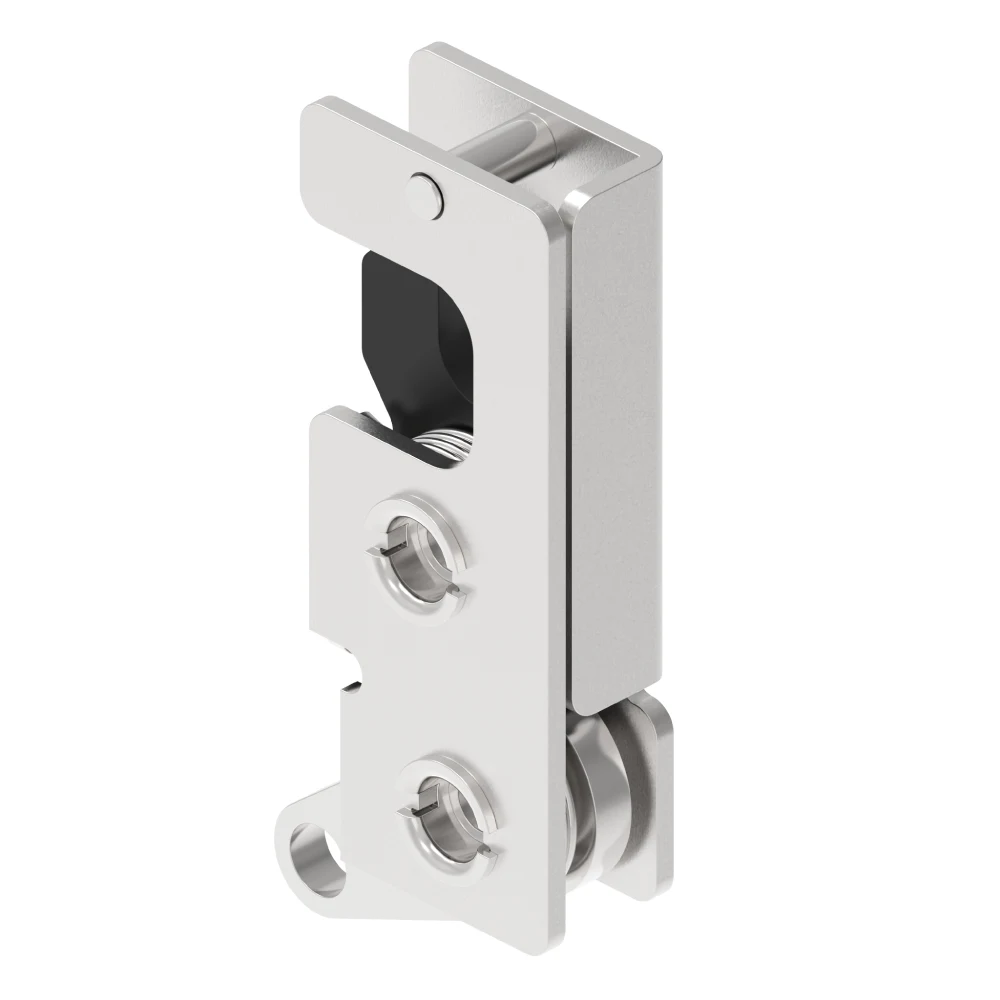

SL-4005-31 Top Drive Rotary Lock
The SL-4005-31 Top Drive Rotary Lock is a REACH-compliant industrial rotary lock designed for top drive actuation, rated to 3600N and compatible with a Φ9.5mm striker; available in galvanized or stainless steel with single- or double-stage, left- or right-hand mounting, it secures industrial cabinets, vehicle compartments, generator sets and outdoor equipment enclosures.
- SKU : SL-4005-31 · 4005-31 · 4005/31
The SL-4005-31 takes its drive input from the top of the lock body, the mirror of the bottom-drive -21 for high-mounted rods on tall panels.
A top drive path rotates the cam from above, which keeps linkages high and clear of cargo or feet; single-stage or double-stage engagement and left-hand or right-hand orientation adapt it to tall cabinet doors.
Galvanized steel or stainless steel construction mounts through a Φ7.2 hole with M6x1 or 1/4-20 threads, accepts strikers up to 9.5mm and reaches a 3,600N maximum load under REACH No.1907/2006.
Pick the -31 for high doors where the rod run sits above the panel; add damping with the -32 where vibration is present. It suits industrial cabinets, generator enclosures and special-vehicle hatches, with flexible MOQ for projects.
Key Features
- \n
- Top Drive mechanism designed for reliable actuation in sealed and vibration-prone environments \n
- Available in galvanized steel with optional stainless steel construction for enhanced corrosion resistance \n
- Maximum load rating of 3600N and maximum striker size of 9.5mm \n
- Supports single-stage and double-stage configurations for flexible latching depth \n
- Left-hand and right-hand mounting options to suit different door layouts \n
- Compatible with Φ7.2 through holes, M6×1, or 1/4-20 threaded mounting patterns \n
- REACH No.1907/2006 compliant for use in regulated industrial and transportation markets \n
Applications
- \n
- RV / trailer storage compartment doors \n
- Engineering vehicle maintenance doors \n
- Pickup / truck toolboxes \n
- Generator sets / outdoor equipment boxes \n
- Agricultural machinery covers \n
- Special vehicle small hatches \n
