Hygienic Quarter-Turn Latches

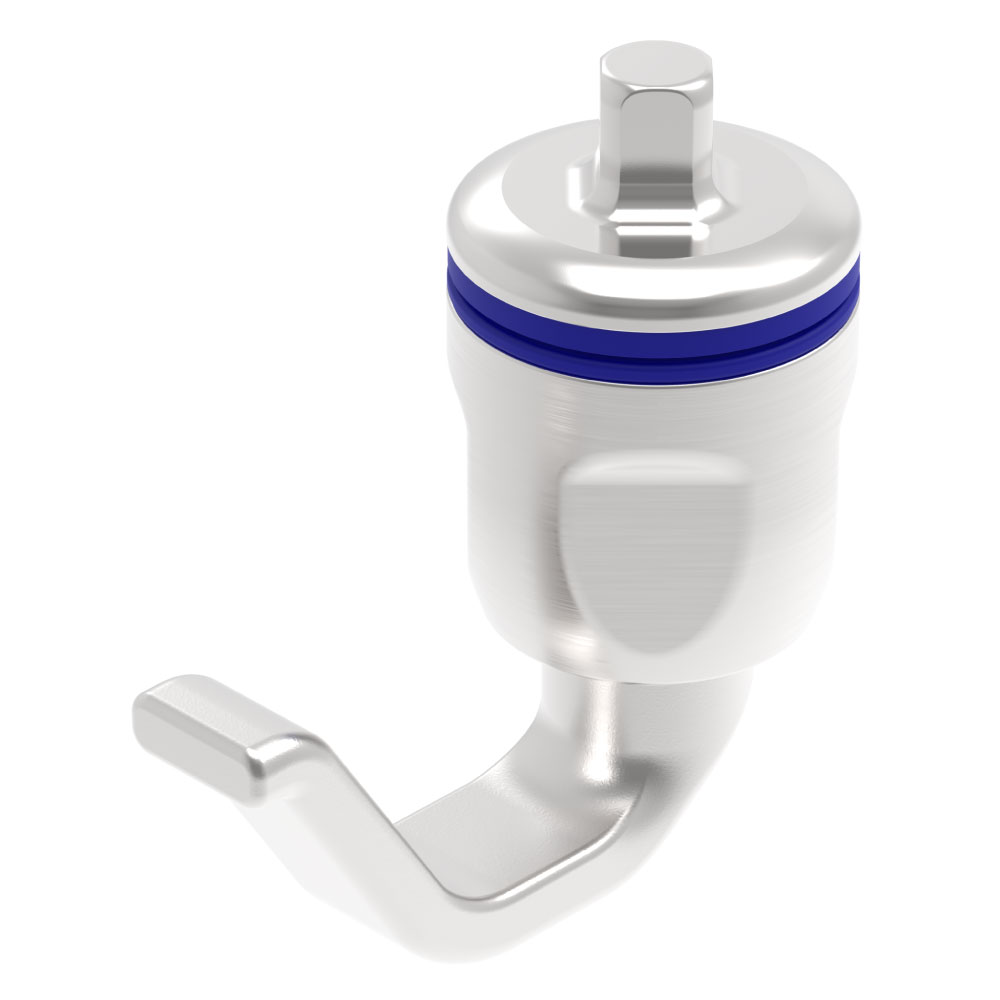

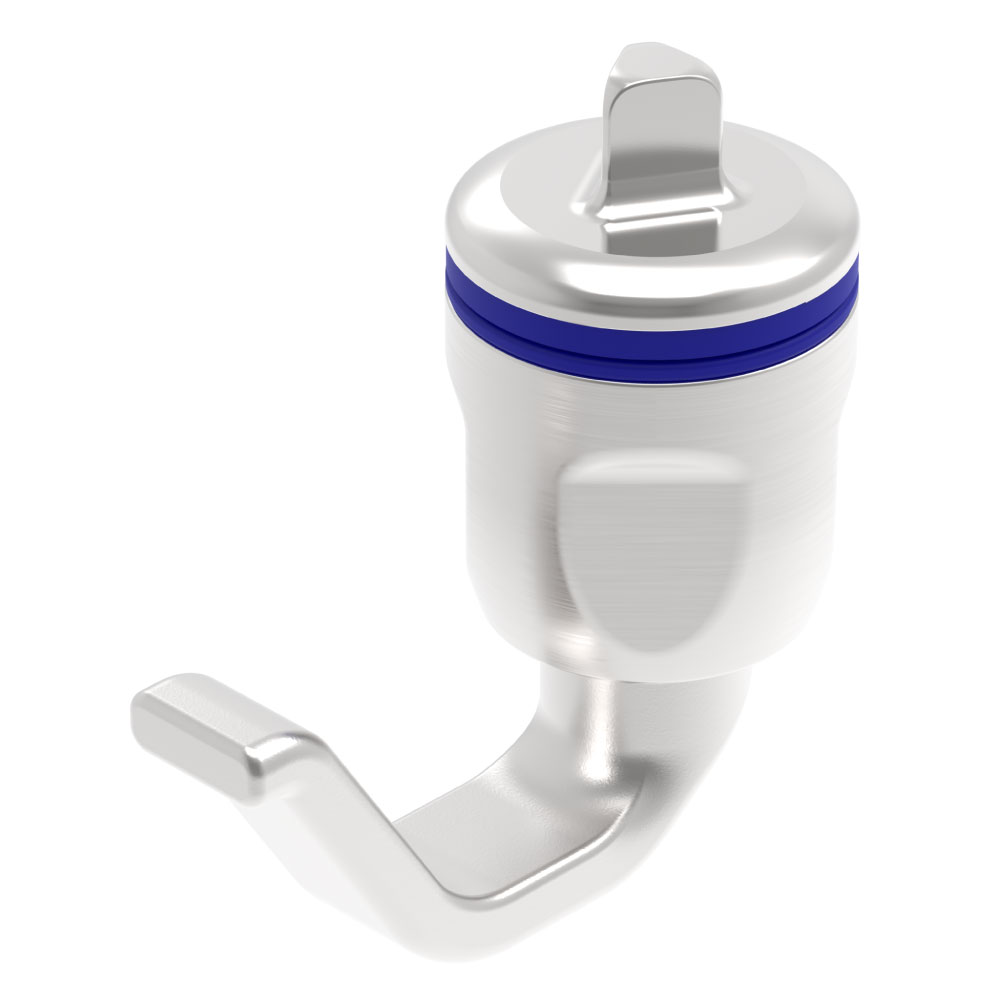

SLC2-2441M Hygienic Quarter-Turn Latch
The double-protection version of the SLC2-2441 for thin panels from 1 to 5 mm.
- SKU : SLC2-2441M
Where the program calls for the EMKA 1000-U838 series with double door protection, the 2441M is the compatible option.
Full series mapping: EMKA hygienic latch cross-reference.
Matching hardware
- Compression series for thicker panels: SLC3-2578M Hygienic Compression Quarter-Turn Latch
- sealing hardware: Hygienic Fasteners & Components
Send your door drawing. Engineers reply within 24 hours. Samples at actual cost. OEM from 100 pcs, T/T.
EMKA is a trademark of its respective owner; reference is for compatibility purposes only and does not imply affiliation or endorsement.
Key Features
- No exposed springs or unsealed threads on the product side; radiused transitions clean down without disassembly
- Blue silicone ring at the panel interface: seal position and condition are visible during washdown checks
- Rated IP69K for high-pressure, high-temperature washdown
- SUS304 or SUS316 to match splash-zone chemistry; both materials are available in this series
- 90° turn with the cam engaged behind the frame, not a friction fit
- Hygienic design principles — Designed to meet DIN EN 1672-2 and DIN EN ISO 14159
- Seal material — Food-grade silicone; compliance documentation on request
- Washdown protection — Rated IP69K
- Materials — SUS304 (A1) / SUS316 (A2) — both available
- Panel thickness — SLC3: 1–15 mm · SLC2 / SLD1: 1–5 mm
Applications
- Food & beverage processing: filling lines, mixers, conveyors, packaging machines (industry page)
- Pharmaceutical & cleanroom equipment: washdown-zone cabinets and access panels (industry page)
- Stainless steel machinery: machine doors, inspection covers, access panels
- Control cabinets in washdown zones
requestDrawing.title
requestDrawing.desc
Specifications
| Product type | Hygienic quarter-turn latch (cam type) |
| Material | SUS304 (A1) or SUS316 (A2) |
| Sealing | Blue food-grade silicone ring |
| Protection Rating | Rated IP69K |
| Panel thickness | 1–5 mm |
| Mounting screw torque | 8 N·m |
| Mounting nut torque | 17 N·m |
| Inserts | W13 · 038 · 048 (tool-operated) |
| Rotation | L / R |
| Ultimate load | On request |
| Unlocking torque | On request |
| Protection variant | M: double protection inside & outside |
