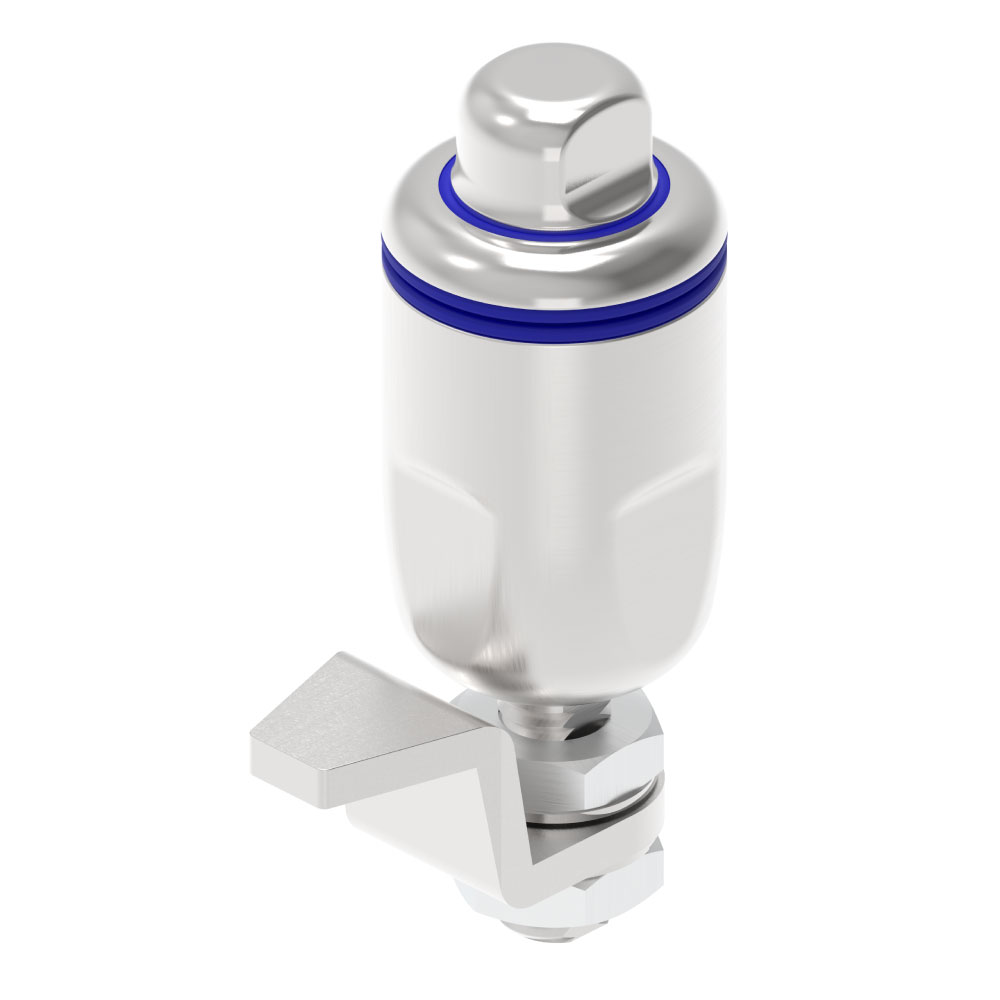

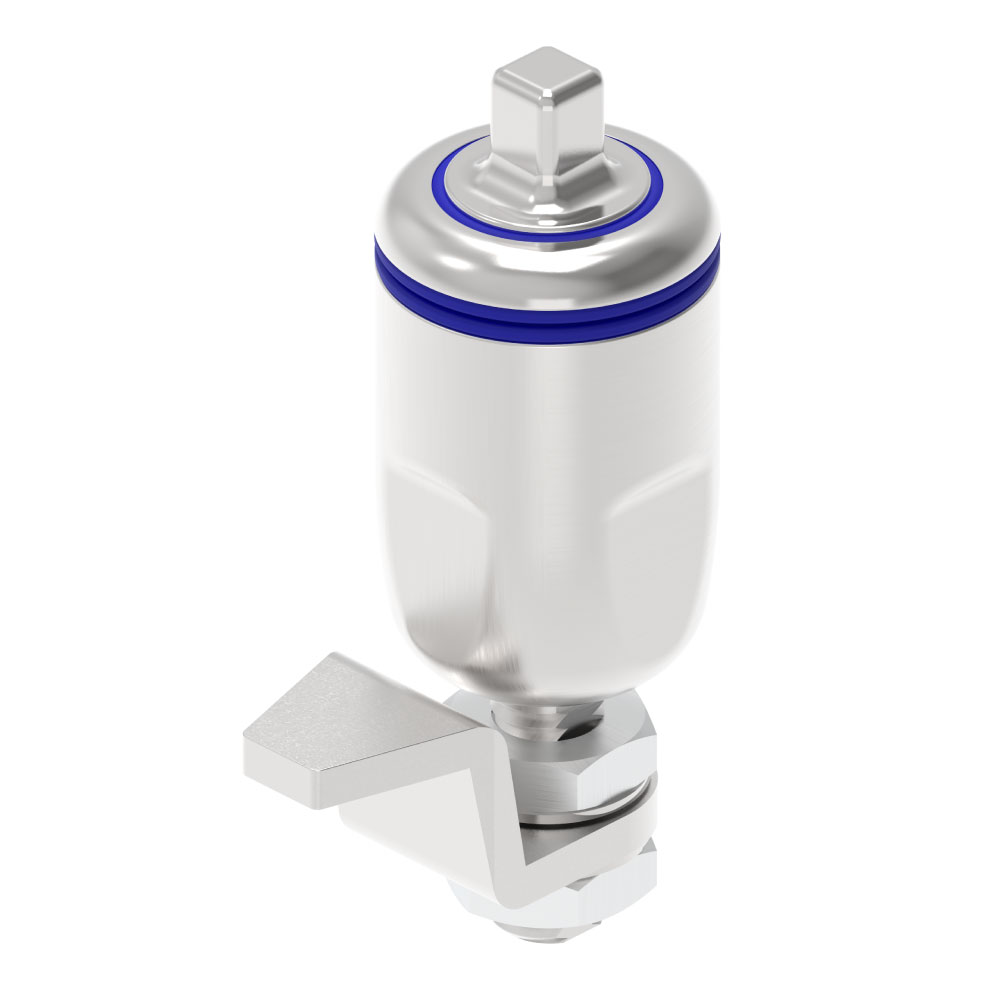

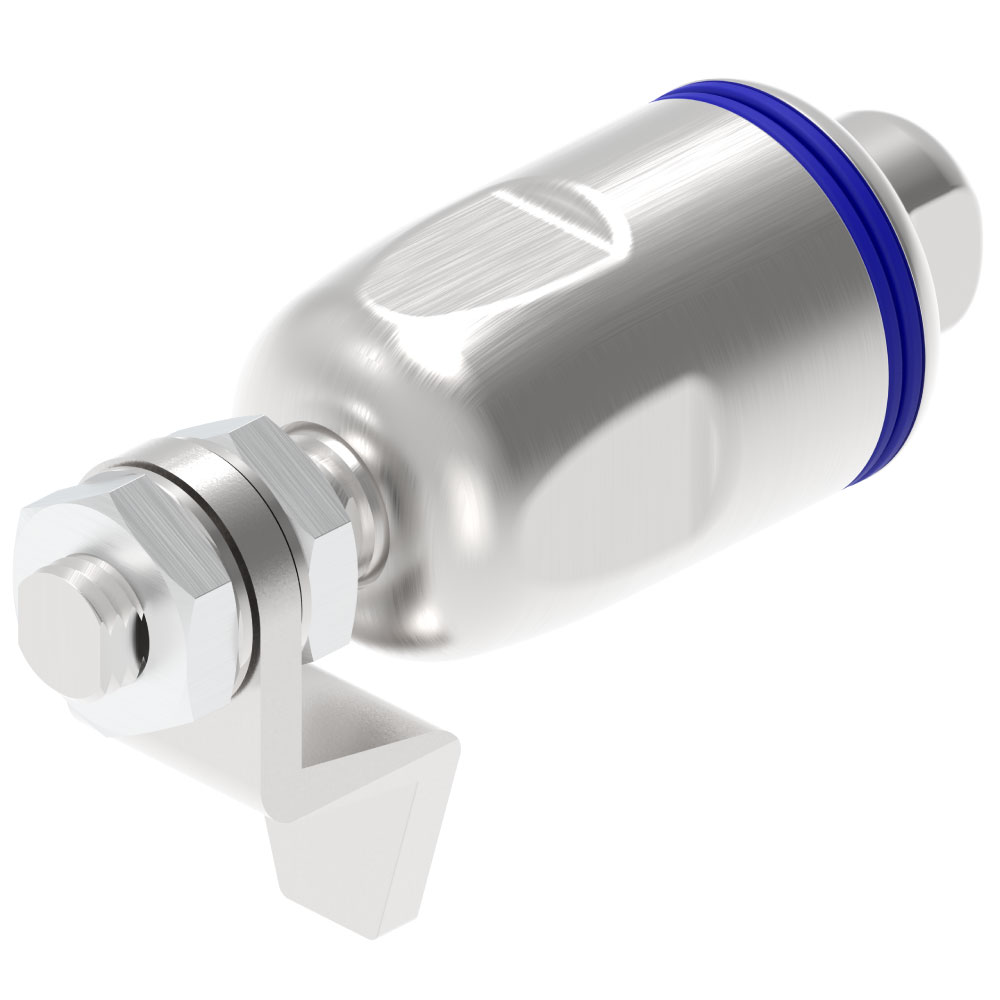

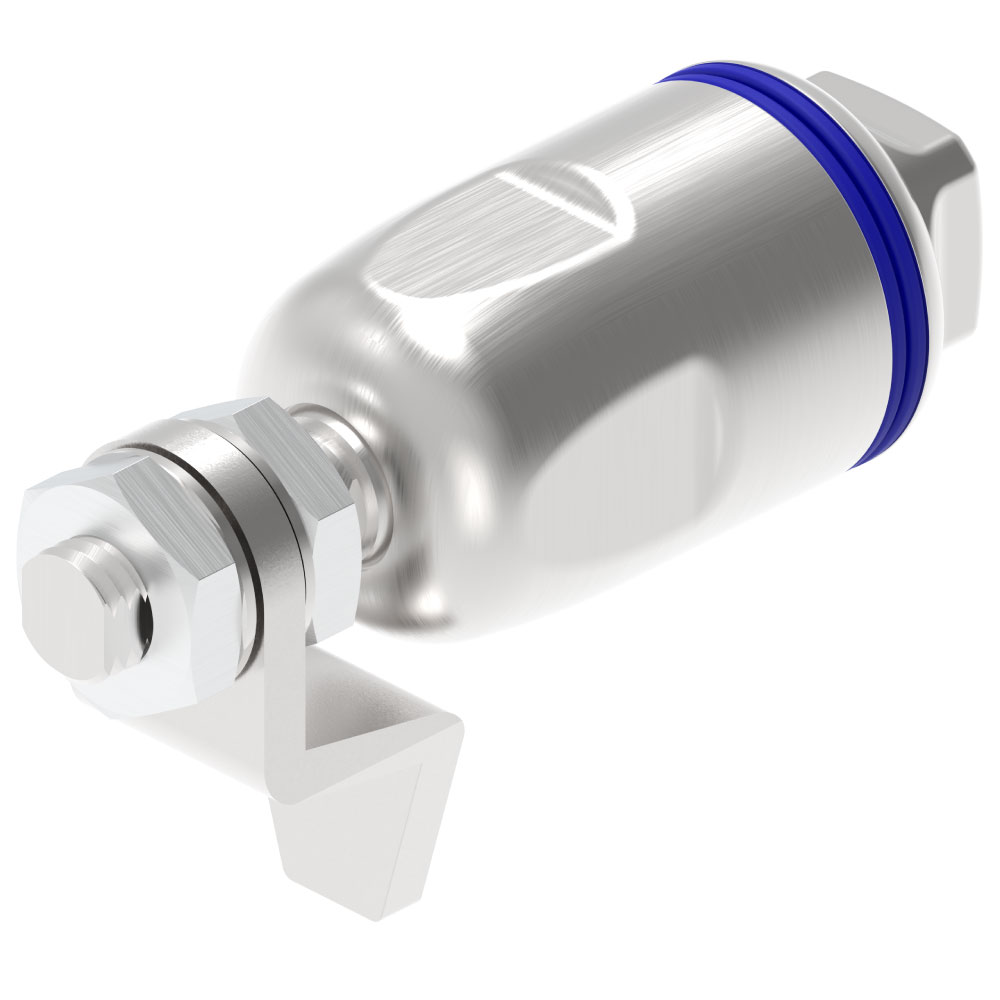

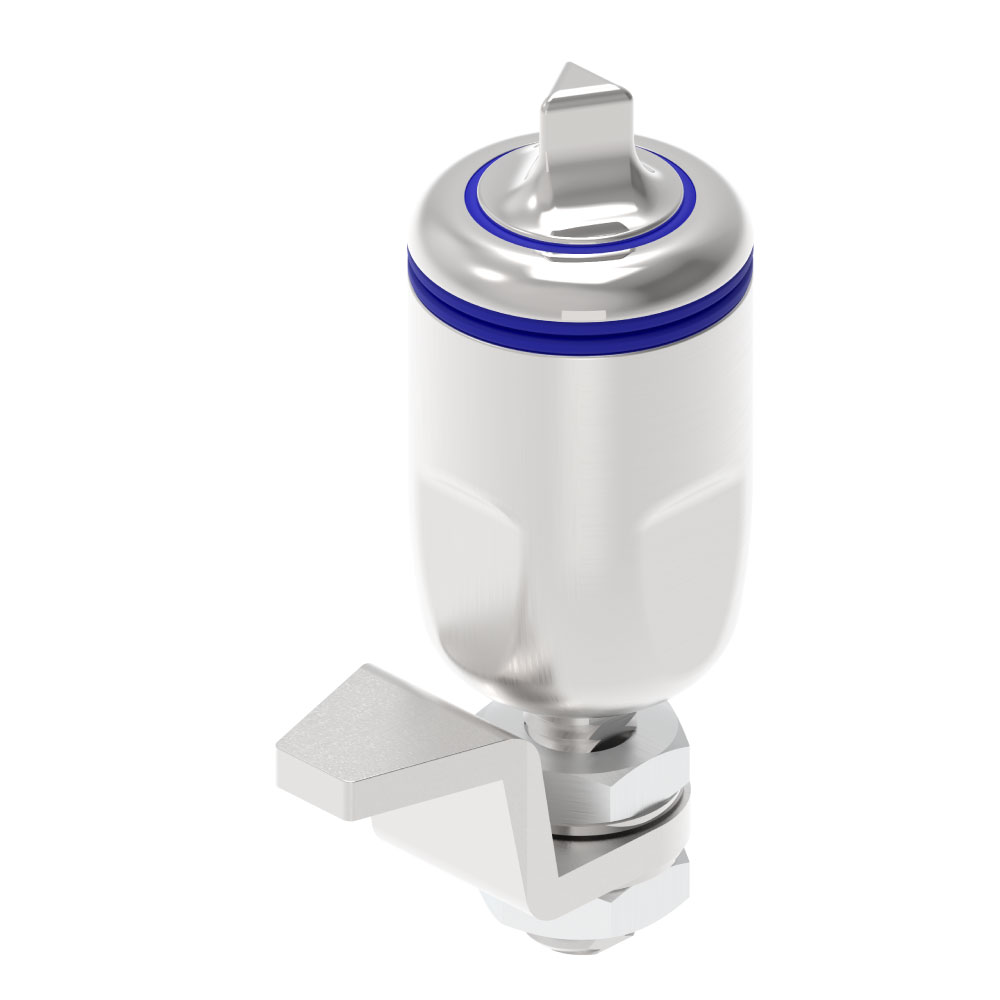

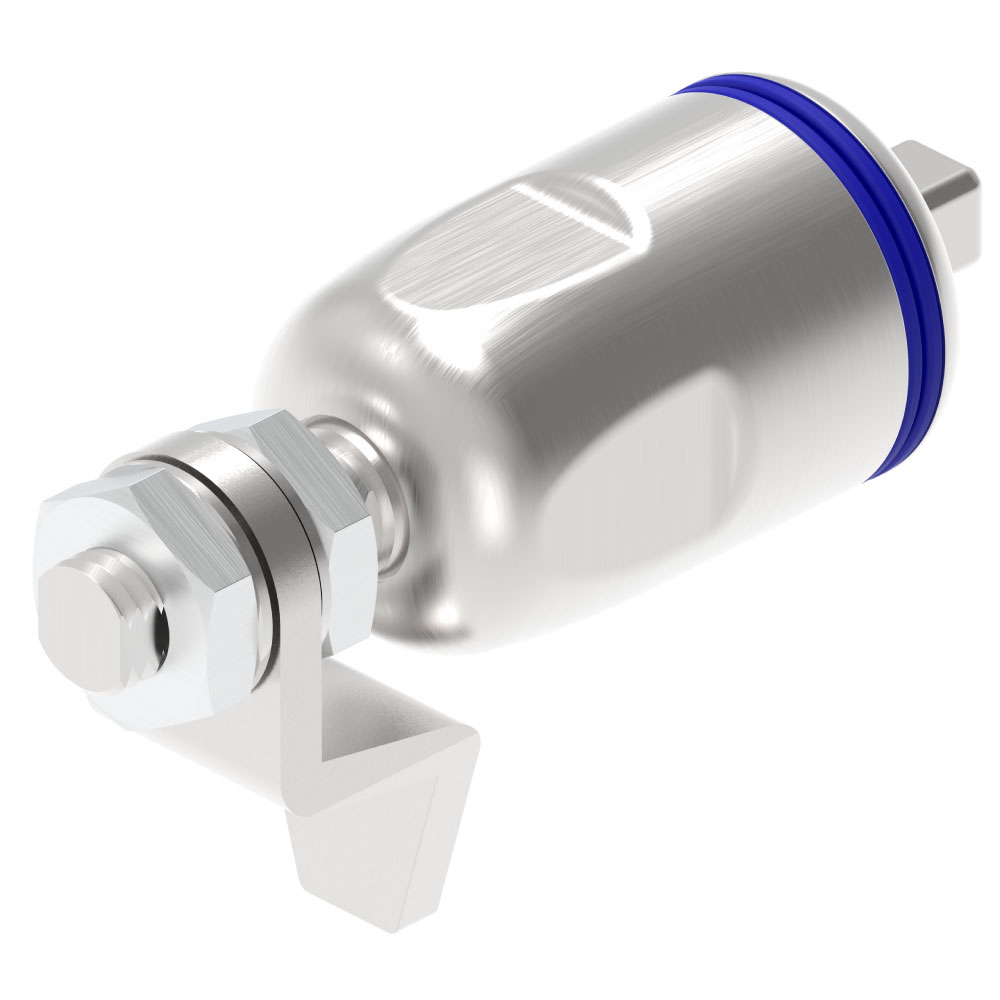

SLC3-2579M Hygienic Compression Quarter-Turn Latch
The longest-reach model in the series: 69.4 mm locking size with double inside-and-outside door protection.
- SKU : SLC3-2579M
Compatible with the EMKA 1000-U861/U862 series for hygienic use, it serves deep-frame washdown lines that standardize on that program.
Full series mapping: EMKA hygienic latch cross-reference.
SUS316 · Inserts W13/S17/038/048 · 700 N · 7 mm clamping · 1–15 mm panels · Rated IP69K
Matching hardware
- SLC3-2578M Hygienic Compression Quarter-Turn Latch
- SL-J-2600 Hygienic Sealing Bolt · SL-J-2601 Hygienic Sealing Nut
- Thin panels 1–5 mm: SLC2-2441
Send your door drawing. Engineers reply within 24 hours. Samples at actual cost. OEM from 100 pcs, T/T.
EMKA is a trademark of its respective owner; reference is for compatibility purposes only and does not imply affiliation or endorsement.
Key Features
Radiused, crevice-free exterior with enclosed mechanics. The blue ring sits where operators can see it during washdown checks. SUS316 stands up to alkaline and chlorine-based CIP chemistry. The 7 mm clamping travel keeps gasket compression stable through thermal cycling and vibration.
- Hygienic design principles — Designed to meet DIN EN 1672-2 and DIN EN ISO 14159
- Seal material — Food-grade silicone; compliance documentation on request
- Washdown protection — Rated IP69K
- Materials — SUS304 (A1) / SUS316 (A2); SLC3 series standard SUS316; SUS316L available on request
- Panel thickness — SLC3: 1–15 mm · SLC2 / SLD1: 1–5 mm
Applications
- Food & beverage processing: filling lines, mixers, conveyors, packaging machines (industry page)
- Pharmaceutical & cleanroom equipment: washdown-zone cabinets and access panels (industry page)
- Stainless steel machinery: machine doors, inspection covers, access panels
- Control cabinets in washdown zones
requestDrawing.title
requestDrawing.desc
Specifications
| Product type | Hygienic compression quarter-turn latch |
| Material | SUS316 standard (A2); SUS304 optional (A1) |
| Sealing | Blue food-grade silicone ring |
| Protection Rating | Rated IP69K |
| Unlocking torque | ≤ 0.79 N·m |
| Ultimate load | 700 N |
| Clamping adjustment | 7 mm |
| Panel thickness | 1–15 mm |
| Housing height (GH) | 36.8 / 44.2 mm |
| Locking size | 69.4 mm |
| Mounting screw torque | 10 N·m |
| Mounting nut torque | 17 N·m |
| Inserts | W13 · S17 · 038 · 048 (tool-operated) |
| Rotation | L (clockwise) / R (counterclockwise) |
| Protection variant | M: double protection inside & outside |
