What does the M stand for in the SLC3-2578M?

M = double protection inside and outside the door. The SLC3-2578 without M protects the outside only.

Do you provide custom keying systems?

Yes, we offer master key, keyed alike and unique key combinations for most lock cylinders.

What surface finishes are available?

Common finishes include chrome plating, nickel plating, powder coating, black oxide and passivated stainless steel.

Hygienic Quarter-Turn Latches

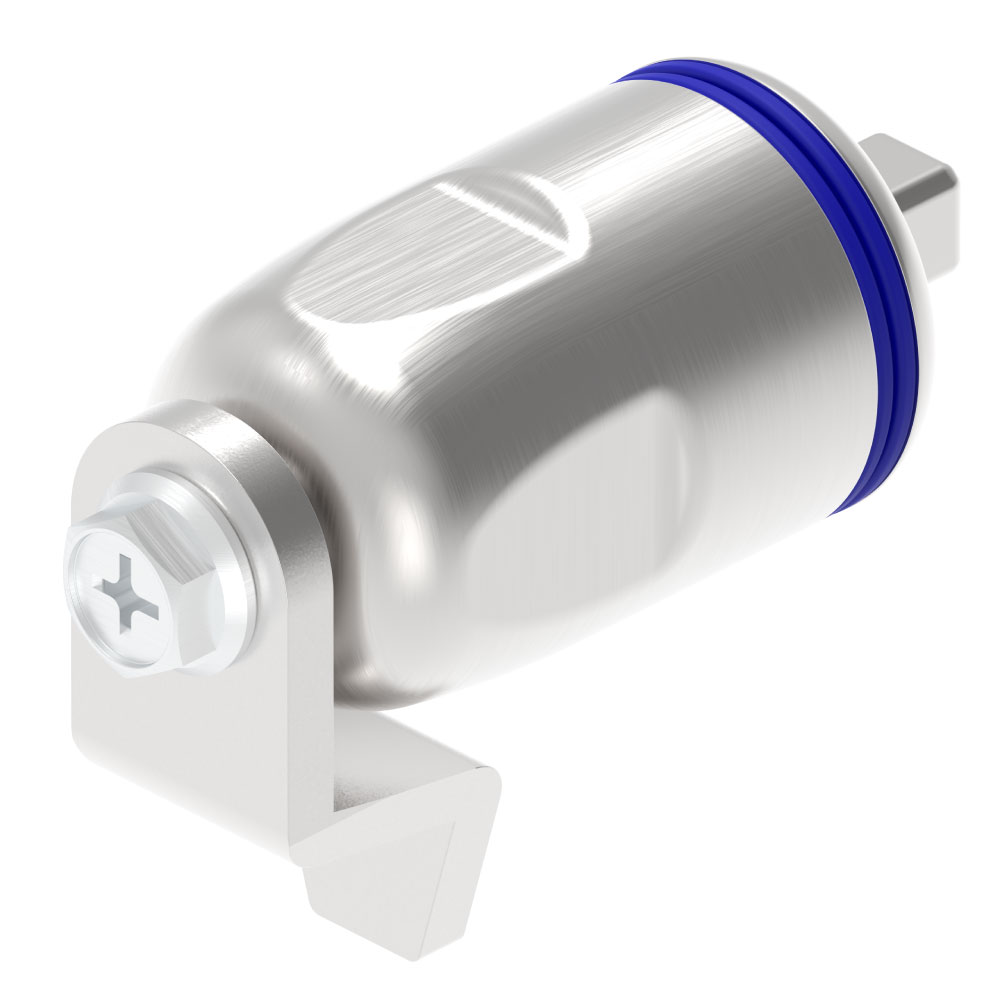

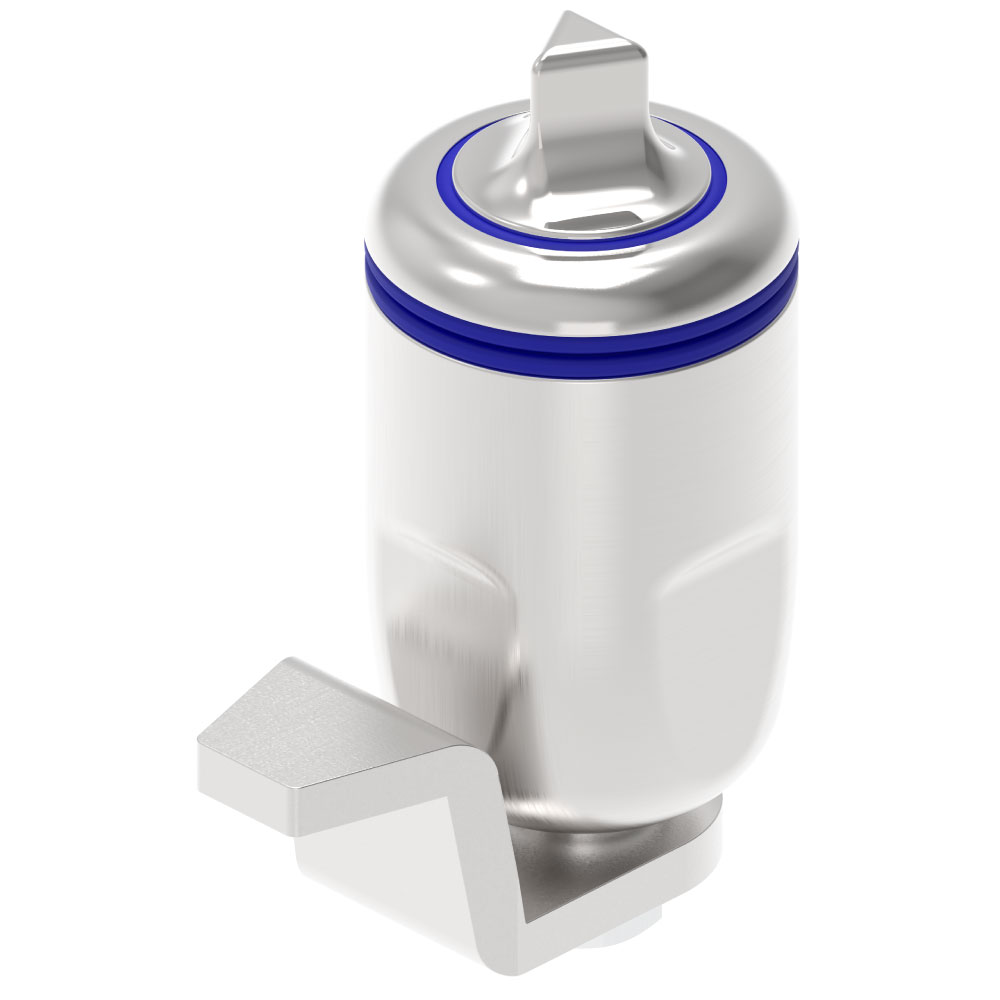

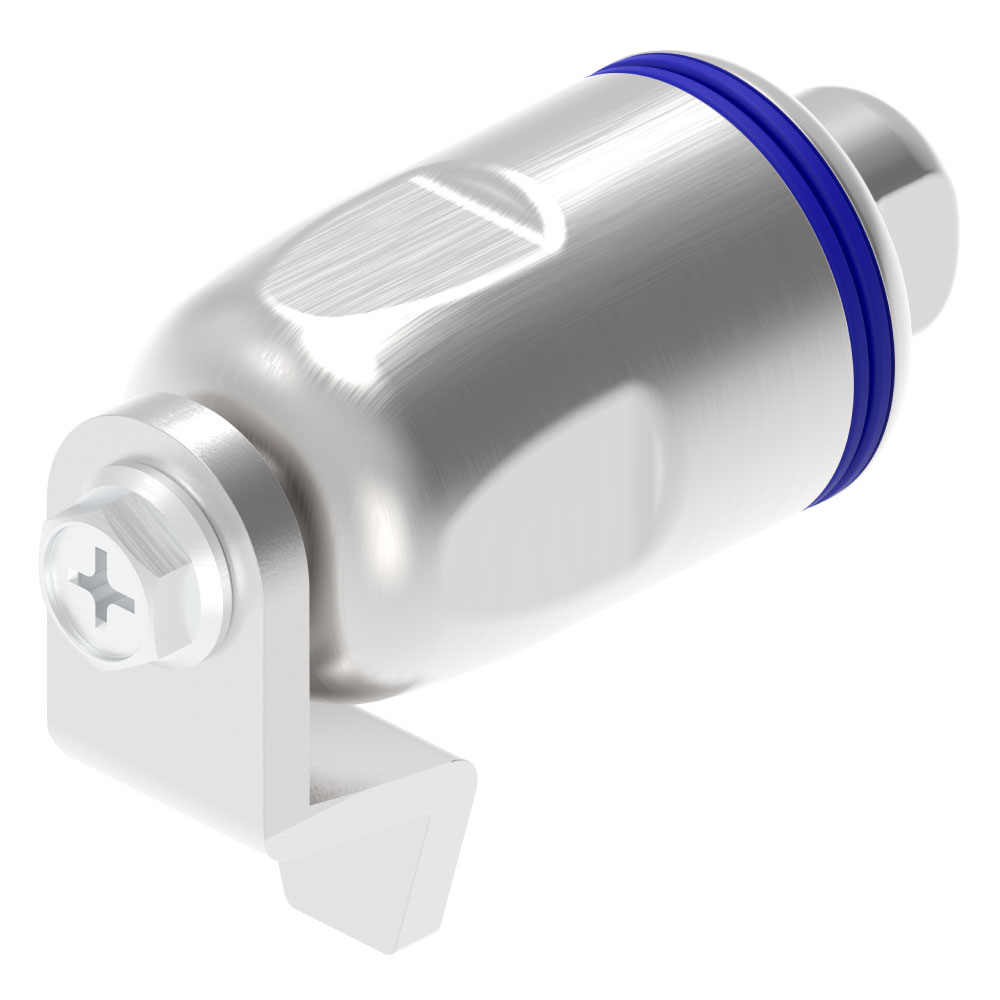

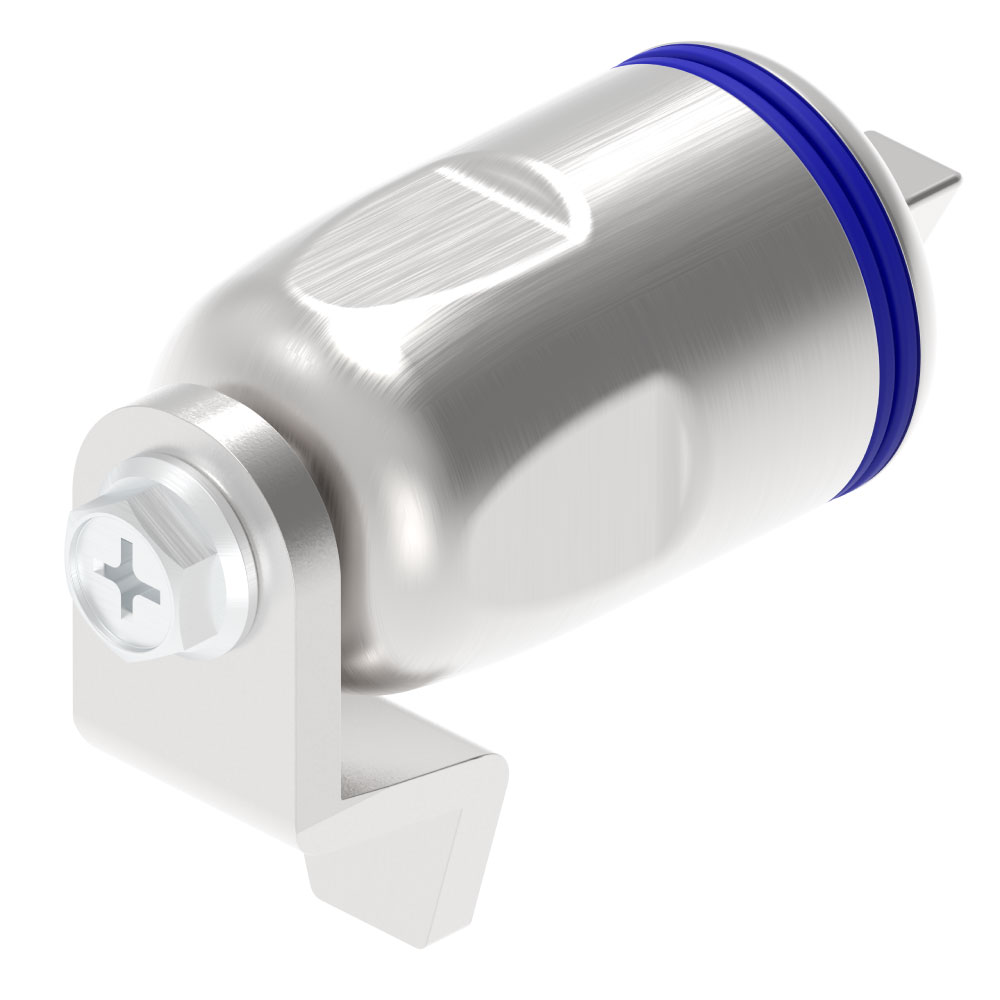

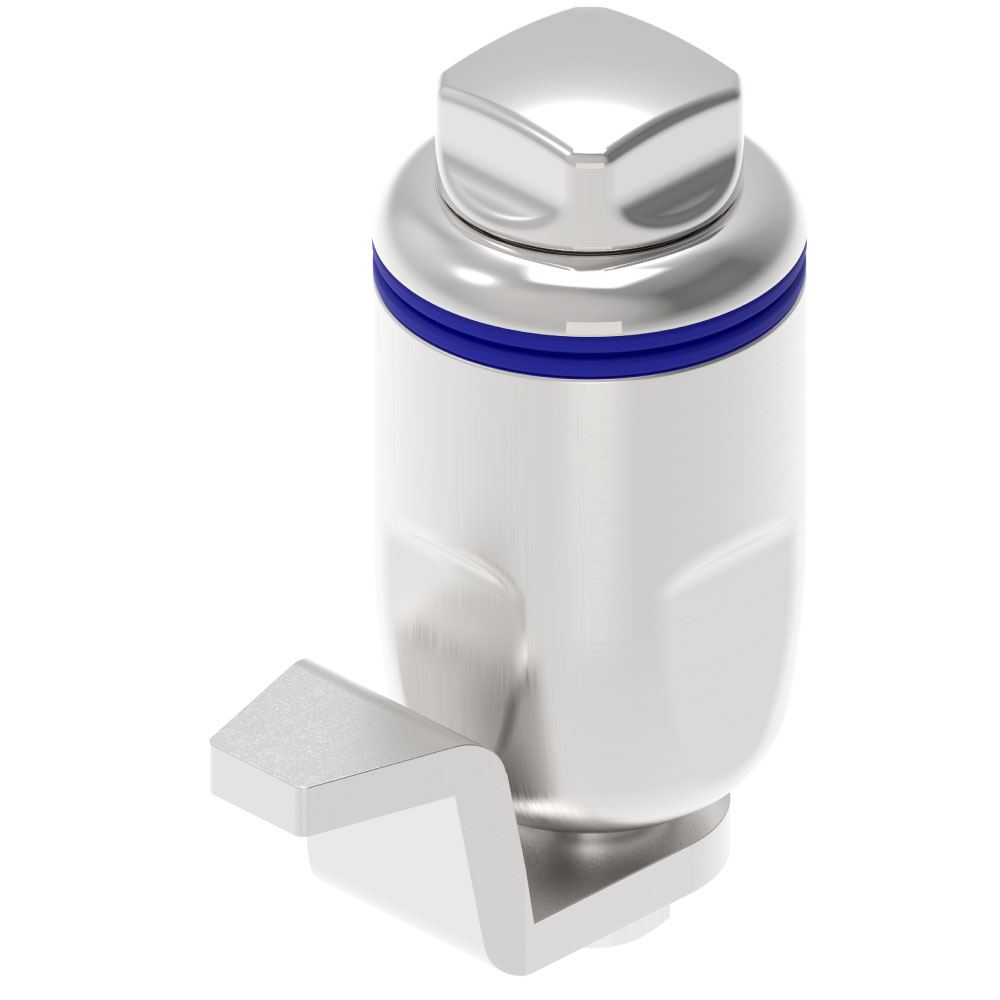

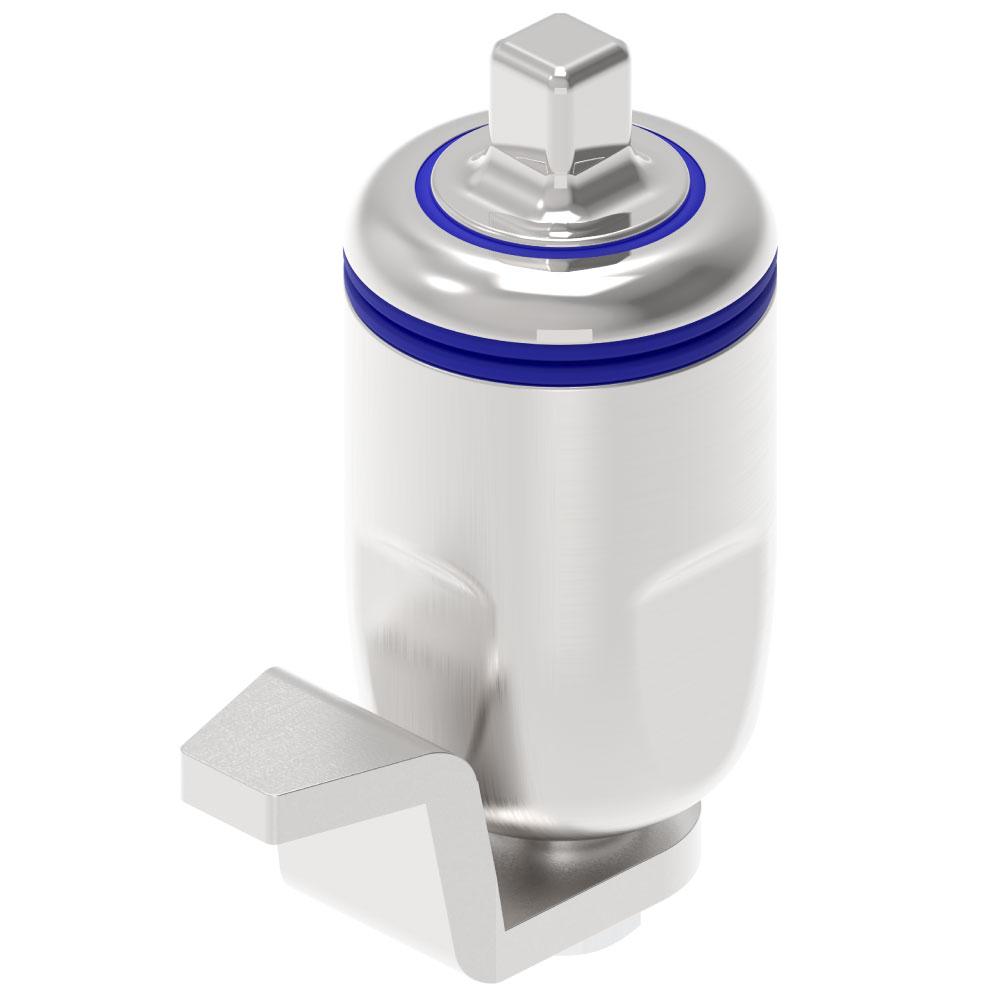

SLC3-2578M Hygienic Compression Quarter-Turn Latch

After the quarter turn, the cam on the SLC3-2578M keeps travelling: 7 mm of clamping movement pulls the door against its gasket and holds an ultimate load of 700 N.

SKU : SLC3-2578M

Plants standardized on the EMKA 1000-U861/U862 hygienic compression latches can specify the SLC3-2578M as a compatible latch for the same washdown duty.

Full series mapping: EMKA hygienic latch cross-reference.

SUS316 · Inserts W13/S17/038/048 · 700 N · 7 mm clamping · 1–15 mm panels · Rated IP69K

Matching hardware

SLC3-2579: same platform, longer locking reach (69.4 mm)
SL-J-2600 Hygienic Sealing Bolt · SL-J-2601 Hygienic Sealing Nut
Thin panels 1–5 mm: SLC2-2441

Send your door drawing. Engineers reply within 24 hours. Samples at actual cost. OEM from 100 pcs, T/T.

EMKA is a trademark of its respective owner; reference is for compatibility purposes only and does not imply affiliation or endorsement.

Hygienic Latch Quarter-Turn Latch IP69K Stainless Steel

Key Features

Radiused, crevice-free exterior with enclosed mechanics. The blue ring sits where operators can see it during washdown checks. SUS316 stands up to alkaline and chlorine-based CIP chemistry. The 7 mm clamping travel keeps gasket compression stable through thermal cycling and vibration.

Hygienic design principles — Designed to meet DIN EN 1672-2 and DIN EN ISO 14159
Seal material — Food-grade silicone; compliance documentation on request
Washdown protection — Rated IP69K
Materials — SUS304 (A1) / SUS316 (A2); SLC3 series standard SUS316; SUS316L available on request
Panel thickness — SLC3: 1–15 mm · SLC2 / SLD1: 1–5 mm

Applications

Food & beverage processing: filling lines, mixers, conveyors, packaging machines (industry page)
Pharmaceutical & cleanroom equipment: washdown-zone cabinets and access panels (industry page)
Stainless steel machinery: machine doors, inspection covers, access panels
Control cabinets in washdown zones

requestDrawing.title

requestDrawing.desc

Specifications

Product type	Hygienic compression quarter-turn latch
Material	SUS316 standard (A2); SUS304 optional (A1)
Sealing	Blue food-grade silicone ring
Protection Rating	Rated IP69K
Unlocking torque	≤ 0.79 N·m
Ultimate load	700 N
Clamping adjustment	7 mm
Panel thickness	1–15 mm
Housing height (GH)	36.8 / 44.2 mm
Locking size	48 / 54.7 mm
Mounting screw torque	10 N·m
Mounting nut torque	17 N·m
Inserts	W13 · S17 · 038 · 048 (tool-operated)
Rotation	L (clockwise) / R (counterclockwise)
Protection variant	M: double protection inside & outside
