Latching Systems for Kiosks and Vending Machines: Security, Service Access and Vandal Resistance

A latching system for a self-service kiosk or vending machine must do three jobs at once: keep the cabinet securely closed against unauthorized access, open in seconds for authorized service staff, and survive tens of thousands of open-close cycles in public, often outdoor, environments. Treating the latch as an afterthought is one of the most common reasons kiosk projects fail field acceptance tests.

Why Kiosk and Vending Latches Are Different

Unlike a factory control cabinet, a kiosk stands unattended in airports, stations and sidewalks. The latch faces three stresses that ordinary enclosure hardware rarely sees together: deliberate attack (prying, kicking, drilling), high cycle counts from restocking and cash collection, and weather exposure when the machine is outdoors or semi-outdoor. A latch that performs well in a warehouse can wear out or be defeated in months on a high-street vending machine.

Key Selection Criteria

• Security level: decide whether the door protects cash, electronics or consumables. Cash zones usually need a two-stage rotary latch with a guarded striker; consumable zones can often use a single-stage latch with a keyed cam lock.
• Service access time: operators may service hundreds of machines per route. Quarter-turn and trigger-release designs that open without tools save measurable labor cost per year.
• Cycle life: specify tested cycle ratings, not estimates. 50,000 cycles is a sensible minimum for vending doors; high-traffic ticketing kiosks should target 100,000+.
• Environment: outdoor machines need at least IP54-level protection at the latch zone, corrosion-resistant finishes, and drainage so water cannot pool around the striker.

Recommended Latch Types

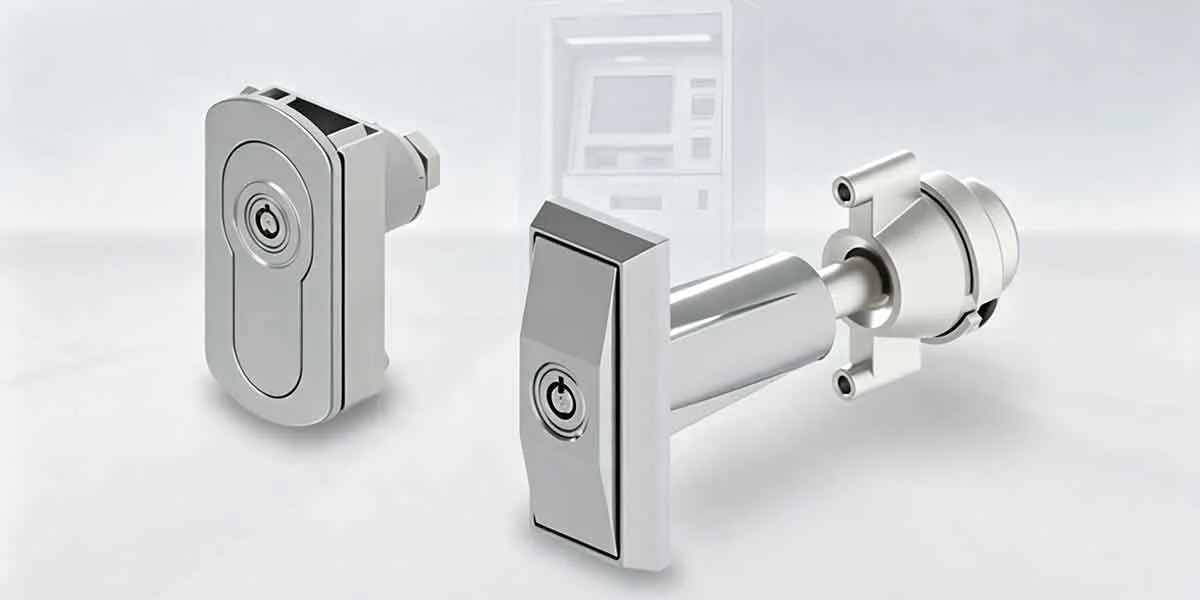

Rotary latches are the default choice for main doors: the rotor captures the striker positively, resists prying, and tolerates door misalignment better than a cam lock. Compression latches add panel sealing for outdoor machines, pulling the door tight against a gasket. Swing handle locks suit larger service doors where a full grip handle and multi-point rod drive are needed.

Cable Release and Multi-Point Latching

Tall kiosk doors often flex, so a single latching point can leave the top or bottom corner vulnerable to prying. A pair of rotary latches linked by a Bowden cable to one central actuator gives two-point latching with single-point operation. Route cables with generous bend radii and protect them from pinch points inside the door cavity.

Vandal Resistance and Standards

Look for latch housings without exposed fasteners on the attack side, strikers that cannot be unscrewed from outside, and shrouded cable entry points. For cash-handling machines, check whether your market requires compliance with local safe or payment-terminal standards before finalizing the door design.

Recommended SecuriLock Models for Kiosk and Vending Doors

For main merchandise doors, the SL-4003-21 heavy-duty damped rotary latch resists prying loads and survives daily route service. Thin payment-module and printer doors fit the compact SL-4001-32 rotary lock. Where a tall service door needs a full-grip handle with multi-point rod drive, see our swing handle systems, and for secondary push-close flaps the push-to-close range. The complete application overview is on our kiosk and vending industry page.

SecuriLock supplies rotary latches, compression latches and swing handle locks engineered for unattended self-service equipment. See our kiosk and vending latching solutions or contact our engineering team for a door-by-door recommendation.
